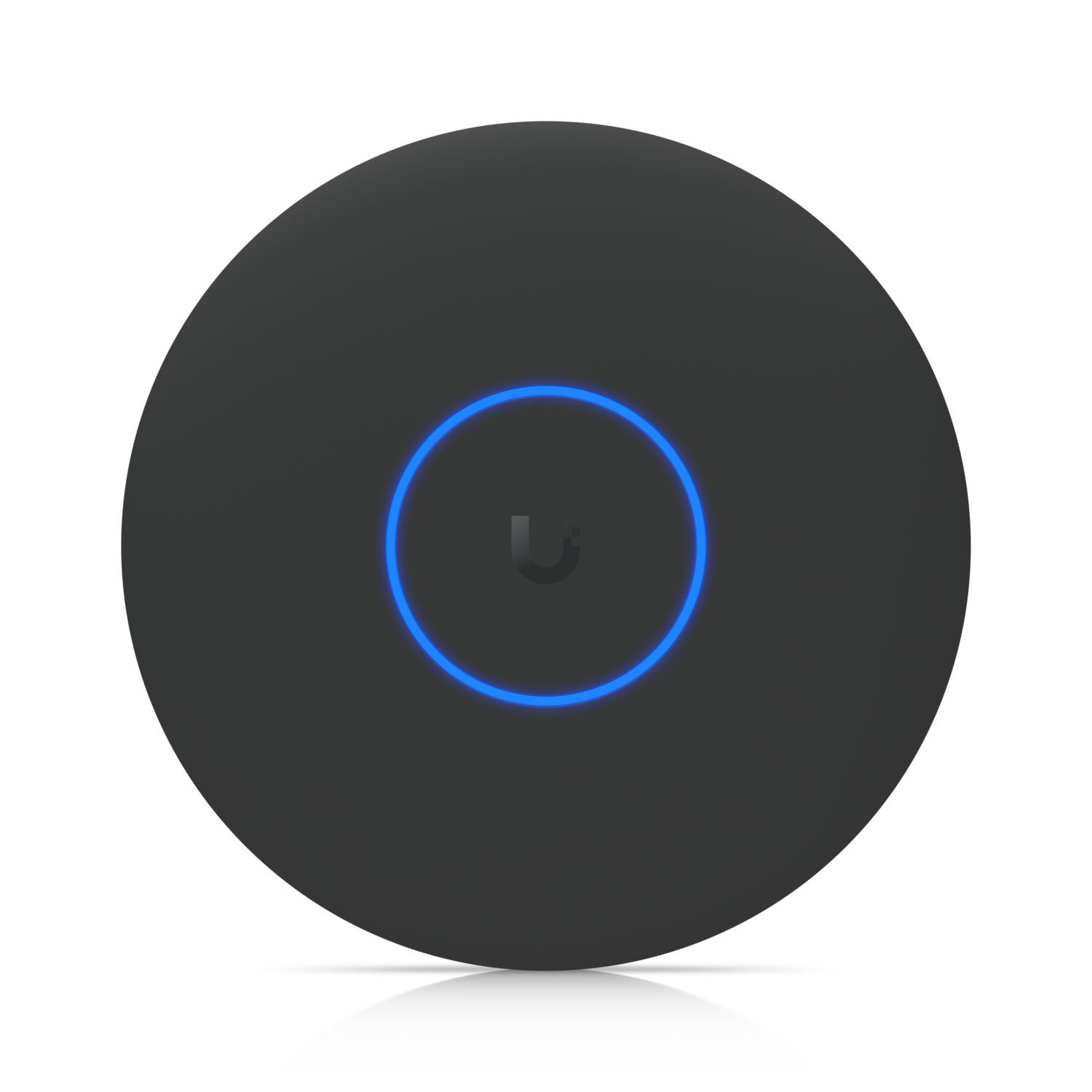

Ubiquiti Ceiling-mounted 6-Stream WiFi 7 Access Point (U7-PRO-XG)

The Ubiquiti U7-PRO-XG Ceiling-mounted Access Point delivers high-performance Wi-Fi 7 connectivity for demanding indoor environments. Ideal for offices, conference rooms, and commercial spaces, it supports over 300 simultaneous clients across 140 m², providing seamless streaming, low-latency gaming, and fast business communications. Featuring advanced MU-MIMO technology, multi-band operation, and 10 GbE uplink capability, the U7-PRO-XG ensures ultra-reliable connectivity while offering flexible ceiling or wall installation and PoE+ power support.

Product Features

Ultra-Fast Wi-Fi 7 Connectivity

Supports the latest 802.11be standard, delivering up to 8.6 Gbps on 5 GHz, 5.8 Gbps on 6 GHz, and 688 Mbps on 2.4 GHz for high-speed multi-band coverage.

Advanced MU-MIMO Technology

Equipped with 2×2 MU-MIMO on 6 GHz, 5 GHz, and 2.4 GHz bands, allowing simultaneous device communication for maximum network efficiency.

High-Density Client Support

Handles over 300 connected devices, making it ideal for enterprise-grade deployments and high-density indoor environments.

Flexible Mounting Options

Includes a Lite Mount for ceiling or wall installation, allowing optimal placement to maximize coverage and performance.

Intelligent Network Management

Supports wireless meshing, band steering, advanced radio management, and guest network isolation. Captive portal, voucher-based authentication, and dynamic VLAN assignment provide enterprise-grade network control.

Power over Ethernet (PoE+)

Simplifies deployment with a single cable carrying both data and power, reducing wiring complexity and installation costs.

10 GbE Uplink for Ultra-Fast Backhaul

Ensures maximum throughput for high-speed data transfers and minimal latency in demanding network environments.

Product Specifications

• Dimensions: ⌀206 x 32.5 mm (⌀8.1 x 1.3″)
• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Maximum Client Count: 300+
• Uplink: 10 GbE
• Mounting: Ceiling, Wall (Lite Mount Included)
• Power Method: PoE+
• MIMO:
  • 6 GHz: 2×2 DL/UL MU-MIMO
  • 5 GHz: 2×2 DL/UL MU-MIMO
  • 2.4 GHz: 2×2 DL/UL MU-MIMO
• Max Data Rate:
  • 6 GHz: 5.8 Gbps (BW320)
  • 5 GHz: 4.3 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
  • 6 GHz: 6 dBi
  • 5 GHz: 5 dBi
  • 2.4 GHz: 4 dBi
• Max TX Power: 6 GHz – 24 dBm, 5 GHz – 26 dBm, 2.4 GHz – 23 dBm
• Max BSSIDs: 8 per radio
• Supported Data Rates: 802.11be, 802.11ax (Wi-Fi 6/6E), 802.11ac, 802.11n
• Max Power Consumption: 22W
• Supported Voltage Range: 42.5–57V DC
• Networking Interface: 10 GbE RJ45 port
• Weight: 750 g (1.7 lb)
• Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
• Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
• LEDs: System White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel
• Operating Frequency: 2.4 GHz, 5 GHz, 6 GHz (varies by region)
• Operating Temperature: -30 to 40°C (-22 to 104°F)
• Operating Humidity: 5–95% noncondensing
• Software Requirements:
  • UniFi Network Version 9.0.114 and later (White)
  • UniFi Network Version 9.1.120 and later (Black)
