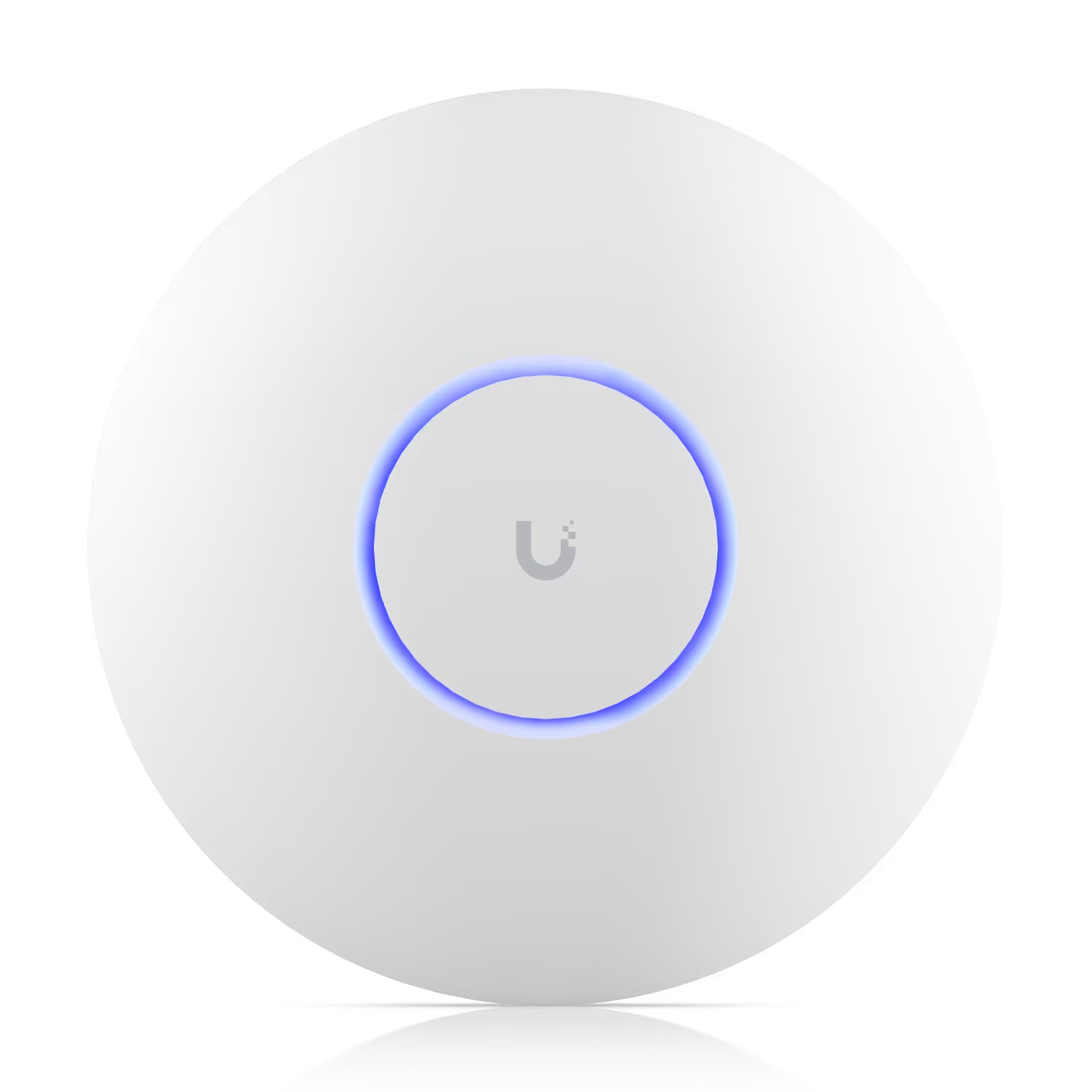

Ubiquiti UniFi WiFi 6 Pro Access Point (U6-PRO)

The Ubiquiti UniFi WiFi 6 Pro Access Point (U6-PRO) is a high-performance enterprise-grade wireless access point designed to deliver ultra-fast connectivity, improved capacity, and advanced network management. Powered by WiFi 6 (802.11ax) technology and featuring 6 spatial streams, it provides exceptional throughput for high-density environments such as offices, schools, retail spaces, and commercial buildings. With coverage up to 140 m² and support for 250+ concurrent clients, the U6-PRO combines powerful performance, enhanced MU-MIMO capabilities, and advanced security features. Its PoE-powered design, IP54 weather resistance, and seamless integration with the UniFi Network platform make it a reliable solution for modern wireless infrastructure.

Product Features

WiFi 6 high-performance connectivity

The U6-PRO leverages WiFi 6 technology to deliver improved efficiency, reduced latency, and higher overall network capacity. It supports advanced modulation schemes and channel bandwidths up to 160 MHz for maximum performance with compatible devices.

6 spatial streams for enhanced throughput

With 6 total spatial streams, including 4×4 MU-MIMO on the 5 GHz band, the access point enables faster simultaneous connections and improved multi-user performance in demanding environments.

Ultra-fast 5 GHz data rates

The 5 GHz band supports maximum data rates up to 4.8 Gbps with 160 MHz bandwidth, providing high-speed connectivity for streaming, video conferencing, cloud applications, and large data transfers.

Reliable dual-band performance

The device supports 2×2 UL MU-MIMO on the 2.4 GHz band with speeds up to 573.5 Mbps. This ensures stable performance for legacy devices and IoT equipment while maintaining strong overall network efficiency.

High client capacity and coverage

Designed to cover up to 140 m², the U6-PRO supports 250+ concurrent clients, making it suitable for high-density wireless deployments requiring stable and scalable connectivity.

Advanced roaming and radio optimization

Features such as 802.11k, 802.11v, and 802.11r enable fast roaming and seamless client transitions between access points. Band steering and advanced radio management further optimize wireless performance automatically.

Enterprise-grade security features

The access point includes guest network isolation, captive portal support, voucher authentication, private pre-shared keys, RADIUS integration, dynamic VLAN assignment, and RadSec support, providing flexible and secure network control.

IP54 weather resistance

With IP54-rated protection, the U6-PRO is resistant to limited dust ingress and water splashes, making it suitable for indoor installations and select semi-protected environments.

PoE-powered installation

The device is powered via Power over Ethernet (PoE), simplifying deployment with a single Ethernet cable for both power and data connectivity. It supports a 44–57V DC input range.

Centralized UniFi Network management

The U6-PRO is managed through the UniFi Network application, allowing centralized configuration, monitoring, firmware updates, and advanced network analytics.

Product Specifications

• Model: Ubiquiti UniFi WiFi 6 Pro Access Point (U6-PRO)
• WiFi Standard: WiFi 6 (802.11ax)
• Spatial Streams: 6
• Coverage Area: Up to 140 m² (1,500 ft²)
• Maximum Client Capacity: 250+ clients
• Uplink Interface: 1 x Gigabit Ethernet (GbE) RJ45
• Power Method: Power over Ethernet (PoE)
• Supported Voltage Range: 44–57V DC
• Maximum Power Consumption: 13W
• MIMO Configuration:
  • 5 GHz: 4×4 MU-MIMO (DL/UL)
  • 2.4 GHz: 2×2 MU-MIMO (UL)
• Maximum Data Rate:
  • 5 GHz: Up to 4.8 Gbps (160 MHz)
  • 2.4 GHz: Up to 573.5 Mbps (40 MHz)
• Antenna Gain:
  • 5 GHz: 6 dBi
  • 2.4 GHz: 4 dBi
• Maximum TX Power:
  • 5 GHz: 26 dBm
  • 2.4 GHz: 22 dBm
• Max BSSIDs: 8 per radio
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 MHz
• Operating Frequency:
  • US/CA: 2400–2472 MHz, 5150–5850 MHz
  • Worldwide: 2400–2483.5 MHz, 5150–5850 MHz
• Dimensions: ⌀197 x 35 mm (⌀7.8 x 1.4 in)
• Weight: 580 g (device), 720 g (with mount)
• Enclosure Material: Polycarbonate
• Mount Material: Stainless steel (SUS304)
• Weatherproofing: IP54 rated
• Operating Temperature: -30°C to 60°C
• Operating Humidity: 5% to 95% non-condensing
• Management: Ethernet and Bluetooth
• Software Requirement: UniFi Network (Version 6.0.45 and later)
• Certifications: CE, FCC, IC, SRRC, Anatel
• NDAA Compliant: Yes
