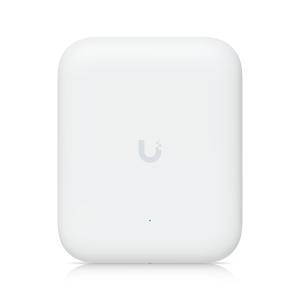

Ubiquiti U7 Pro Outdoor Access Point (U7-Pro-Outdoor)

The Ubiquiti U7 Pro Outdoor Access Point delivers cutting-edge Wi-Fi 7 performance for high-density outdoor environments. Engineered for enterprises, campuses, and expansive outdoor areas, it combines ultra-fast wireless speeds, high client capacity, and rugged weatherproof construction. With coverage up to 465 m² and support for over 300 simultaneous clients, the U7 Pro ensures reliable connectivity for streaming, gaming, and business-critical applications. Its advanced MU-MIMO technology, versatile mounting options, and PoE+ support make deployment seamless and efficient.

Product Features

Ultra-Fast Wi-Fi 7 Connectivity

Supports the latest 802.11be standard, offering up to 8.6 Gbps on 5 GHz and 688 Mbps on 2.4 GHz, enabling high-speed data transfers and low-latency connections.

Advanced MU-MIMO Technology

Equipped with 4×4 MU-MIMO on 5 GHz and 2×2 MU-MIMO on 2.4 GHz, allowing multiple devices to communicate simultaneously without compromising performance.

Rugged Outdoor Design

IPX6-rated housing and optional IP67 cable-gland door kit protect against harsh weather, dust, and moisture for dependable outdoor operation.

Flexible Mounting Solutions

Includes wall and pole mounts (supporting diameters 25–63.5 mm) for easy installation and optimal coverage placement.

Intelligent Network Management

Features wireless meshing, band steering, advanced radio management, and guest network isolation. Supports captive portal, voucher-based authentication, and dynamic VLAN assignment for enterprise-grade network control.

High-Capacity Client Handling

Handles over 300 connected devices with directional internal and external omni antennas, ensuring stable connections in crowded networks.

Power over Ethernet (PoE+)

Simplifies installation by delivering both power and data over a single cable, reducing the need for additional wiring.

Product Specifications

• Dimensions:Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6″), With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8″)
• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Spatial Streams: 6
• Coverage Area: 465 m² (5,000 ft²)
• Maximum Client Count: 300+
• Uplink: 2.5 GbE
• Mounting: Wall, Pole (Mounts Included)
• Weatherproofing: IPX6, IP67 with cable-gland door kit
• Power Method: PoE+
• MIMO:
  • 5 GHz: 4×4 DL/UL MU-MIMO
  • 2.4 GHz: 2×2 DL/UL MU-MIMO
• Max Data Rate:
  • 5 GHz: 8.6 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
  • 5 GHz: Internal 11 dBi, External 8 dBi
  • 2.4 GHz: Internal 8 dBi, External 6 dBi
• Max TX Power: 5 GHz – 29 dBm, 2.4 GHz – 23 dBm
• Max BSSIDs: 8 per radio
• Supported Data Rates: 802.11be, 802.11ax, 802.11ac, 802.11n
• Max Power Consumption: 21W
• Supported Voltage Range: 42.5–57V DC
• Networking Interface: 1/2.5 GbE RJ45 port
• Weight: Device 1.2 kg (2.6 lb), With mount 1.33 kg (2.9 lb)
• Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
• Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
• Mount Material: UV-stabilized polycarbonate
• LEDs: Power – White/Blue, Mesh Signal – Blue
• NDAA Compliant: Yes
• Certifications: CE, Anatel
• Operating Temperature: -30 to 60°C (-22 to 140°F)
• Operating Humidity: 5–95% noncondensing
• Software Requirements: UniFi Network Version 9.0.114 and later
• Mobile App: iOS version 10.20.2 and later, Android version 10.21.7 and later
