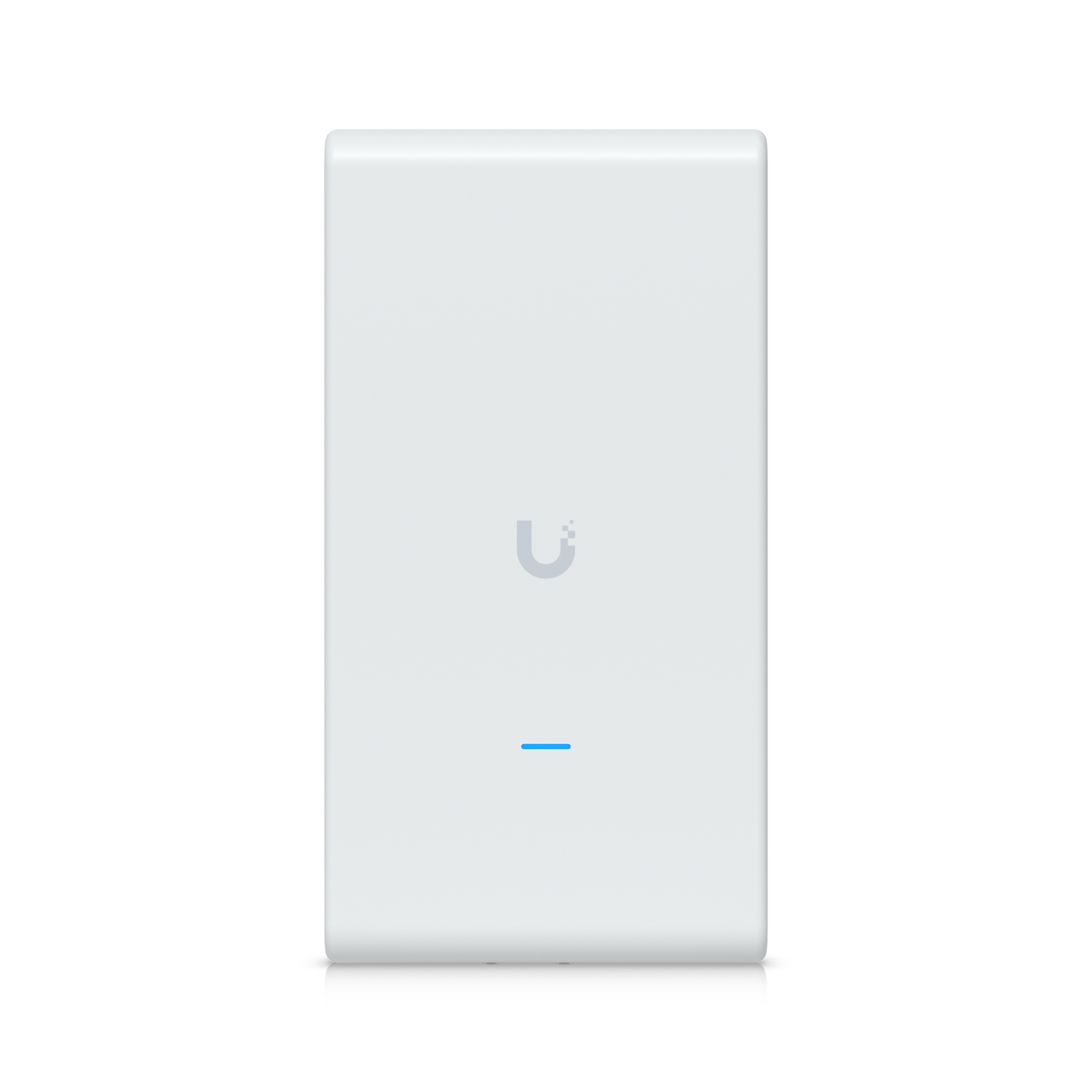

Ubiquiti UniFi AC Mesh Pro Access Point (UAP-AC-M-Pro)
The Ubiquiti UniFi AC Mesh Pro Access Point delivers reliable, high-performance wireless coverage for both indoor and outdoor environments, supporting the WiFi 5 standard for fast and efficient connectivity. Designed for dense client deployments, it covers up to 185 m² (2,000 ft²) and supports over 250 simultaneous clients. With 3×3 MIMO technology, band steering, and advanced radio management, this access point ensures consistent speeds and seamless roaming. Its durable, weatherproof design and flexible mounting options make it ideal for extending your network with a scalable and resilient solution.
Product Features
Wireless Meshing
Easily expand your network without additional cabling by connecting multiple access points in a seamless mesh configuration.
Band Steering
Automatically directs devices to the optimal frequency band, enhancing overall network efficiency and performance.
Fast Roaming (802.11r)
Supports uninterrupted mobility across coverage areas, minimizing dropped connections for mobile users.
Radio Resource Management (802.11k & Advanced RRM)
Monitors and manages radio channels dynamically to reduce interference and maintain stable signal quality.
Captive Hotspot & Guest Access
Provides customizable landing pages, voucher authentication, payment-based access, and external portal support for secure and user-friendly guest networking.
Security & Client Control
Includes guest network isolation, client device isolation, private pre-shared keys, WiFi speed limiting, and RADIUS over TLS (RadSec) for robust network security.
Product Specifications
- Dimensions: 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4″)
- WiFi Standard: WiFi 5 (802.11ac)
- Spatial Streams: 6
- Coverage Area: 185 m² (2,000 ft²)
- Max. Client Count: 250+
- Uplink: GbE
- Mounting: Wall, Pole (Mounts Included)
- Weatherproofing: IPX4
- Power Method: PoE (44–57V DC, includes PoE adapter)
- Performance:
- 5 GHz: 3 x 3 MU-MIMO, 1.3 Gbps max data rate, 8 dBi antenna gain, 22 dBm max TX power
- 2.4 GHz: 3 x 3 MU-MIMO, 450 Mbps max data rate, 8 dBi antenna gain, 22 dBm max TX power
- Max. BSSIDs: 8 per radio
- Supported Data Rates:
- 802.11ac: 6.5 Mbps – 1.3 Gbps
- 802.11n: 6.5 Mbps – 300 Mbps
- Hardware:
- Max Power Consumption: 9W
- Networking Interface: 2 GbE RJ45 ports
- Weight: 633 g (1.4 lb)
- Pole Mount Diameter: 1–2.5″ (25–63.5 mm)
- Enclosure Material: Polycarbonate
- LEDs: System status indicators
- Channel Bandwidth: HT 20/40, VHT 20/40/80 (MHz)
- NDAA Compliant
- Certifications: CE, FCC, IC, Anatel: 01653-18-08356
- Operating Frequency: US/CA: 2400–2472 MHz, 5150–5250 MHz, 5250–5350 MHz, 5470–5725 MHz, 5725–5850 MHz; Worldwide: 2400–2483.5 MHz, 5150–5850 MHz
- Operating Temperature: -40 to 70° C (-40 to 158° F)
- Operating Humidity: 5–95% noncondensing
- Software Requirements: UniFi Network Version 6.0.45 or later
