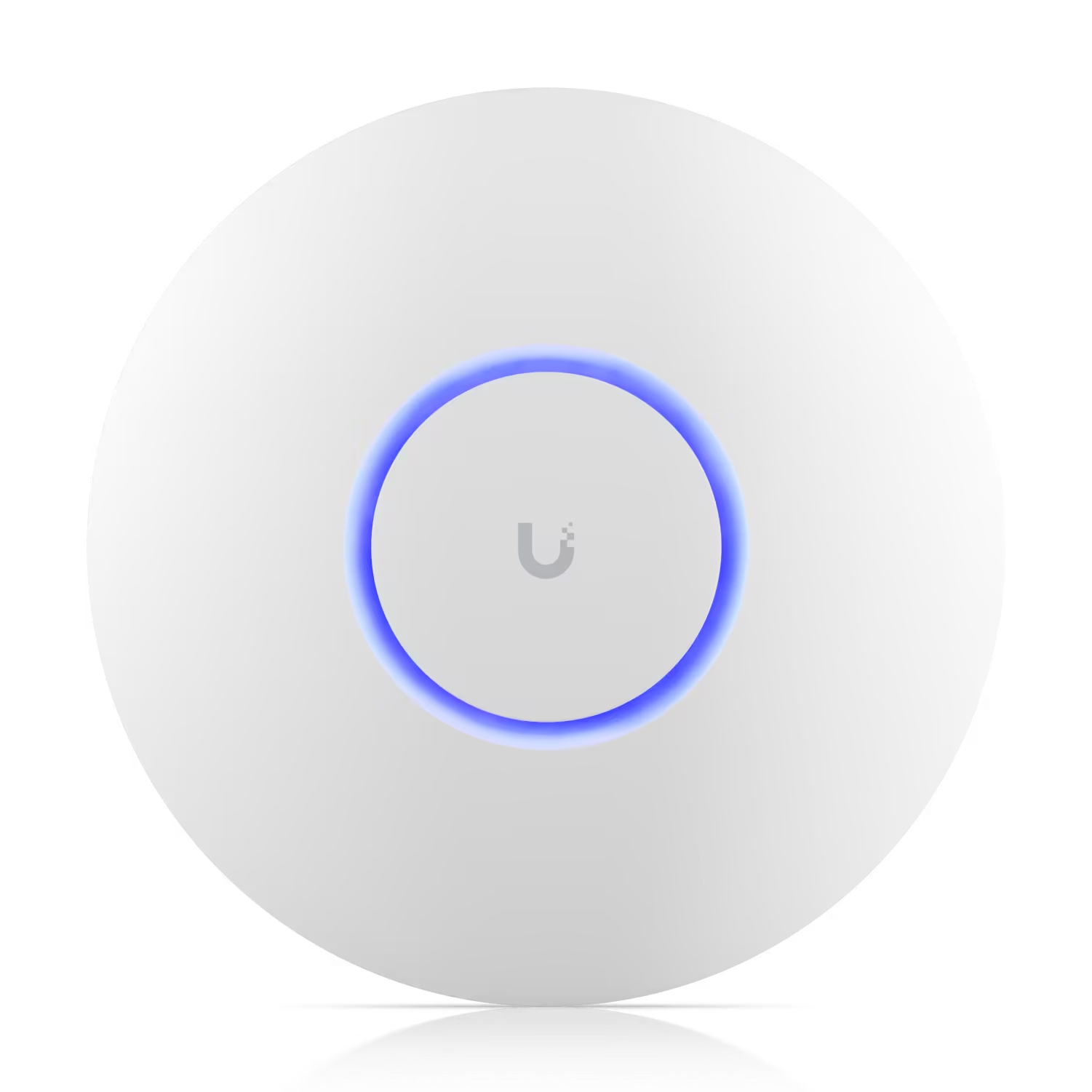

Ubiquiti UniFi WiFi 6 Access Point (U6-LITE)

The Ubiquiti UniFi U6-LITE is a compact WiFi 6 access point designed to deliver high-performance wireless connectivity for homes, offices, and small to medium-sized business environments. Built on the UniFi network ecosystem, it provides fast, stable, and scalable wireless coverage with advanced management features. With support for high client density, efficient bandwidth allocation, and seamless roaming, the U6-LITE ensures reliable connectivity across multiple devices in demanding network environments.

Product Features

WiFi 6 high-performance connectivity

The U6-LITE utilizes WiFi 6 (802.11ax) technology to deliver faster speeds, improved efficiency, and better performance in congested network environments compared to previous WiFi standards.

Dual-band 2×2 MIMO performance

Supports 2×2 MU-MIMO on 5 GHz and 2×2 SU-MIMO on 2.4 GHz, enabling stable simultaneous connections for multiple devices with reduced latency and improved throughput.

High client capacity support

Engineered to handle over 300 connected devices, making it suitable for high-density environments such as offices, schools, retail spaces, and multi-user homes.

Seamless wireless coverage

Provides up to 115 m² (1,250 ft²) of wireless coverage, ensuring strong and consistent signal distribution across small to medium-sized spaces.

Advanced roaming and mesh technology

Supports 802.11k, 802.11v, and 802.11r for fast roaming, along with wireless meshing for expanded network coverage without additional cabling.

Centralized UniFi network management

Fully integrates with the UniFi Network Controller, allowing centralized configuration, monitoring, and optimization of network performance across multiple access points.

Captive portal and guest network control

Includes customizable hotspot portal features with authentication options such as vouchers, passwords, payment-based access, and external server integration, ideal for guest WiFi management.

Strong security and network isolation

Supports client isolation, guest network separation, and dynamic VLAN assignment for improved network security and traffic segmentation.

Efficient PoE-powered design

Powered via Power over Ethernet (PoE), reducing cable clutter and simplifying installation while maintaining stable power delivery.

Compact and flexible installation

With its lightweight and low-profile design, the U6-LITE can be easily mounted on ceilings or walls, blending seamlessly into modern interiors.

Product Specifications

• WiFi standard: WiFi 6 (802.11ax)
• Spatial streams: 4 total
• Coverage area: Up to 115 m² (1,250 ft²)
• Maximum client capacity: 300+ devices
• Uplink port: 1 x Gigabit Ethernet (GbE RJ45)
• Power method: PoE (44–57V DC)
• Maximum power consumption: 12W
• Dimensions: 160 mm x 33 mm
• Weight: 300 g (device), 315 g (with mount)
• Enclosure material: Polycarbonate and aluminum
• Mounting options: Ceiling and wall mount included
• 5 GHz performance: Up to 1.2 Gbps (2×2 MU-MIMO, 80 MHz bandwidth)
• 2.4 GHz performance: Up to 300 Mbps (2×2 SU-MIMO, 40 MHz bandwidth)
• Antenna gain: 3 dBi (5 GHz), 2.8 dBi (2.4 GHz)
• Maximum transmit power: 23 dBm (both bands)
• Operating temperature: -30°C to 60°C
• Operating humidity: 5% to 95% non-condensing
• Management platform: UniFi Network (version 6.0.45 and later)
• Certifications: CE, FCC, IC, NDAA compliant
