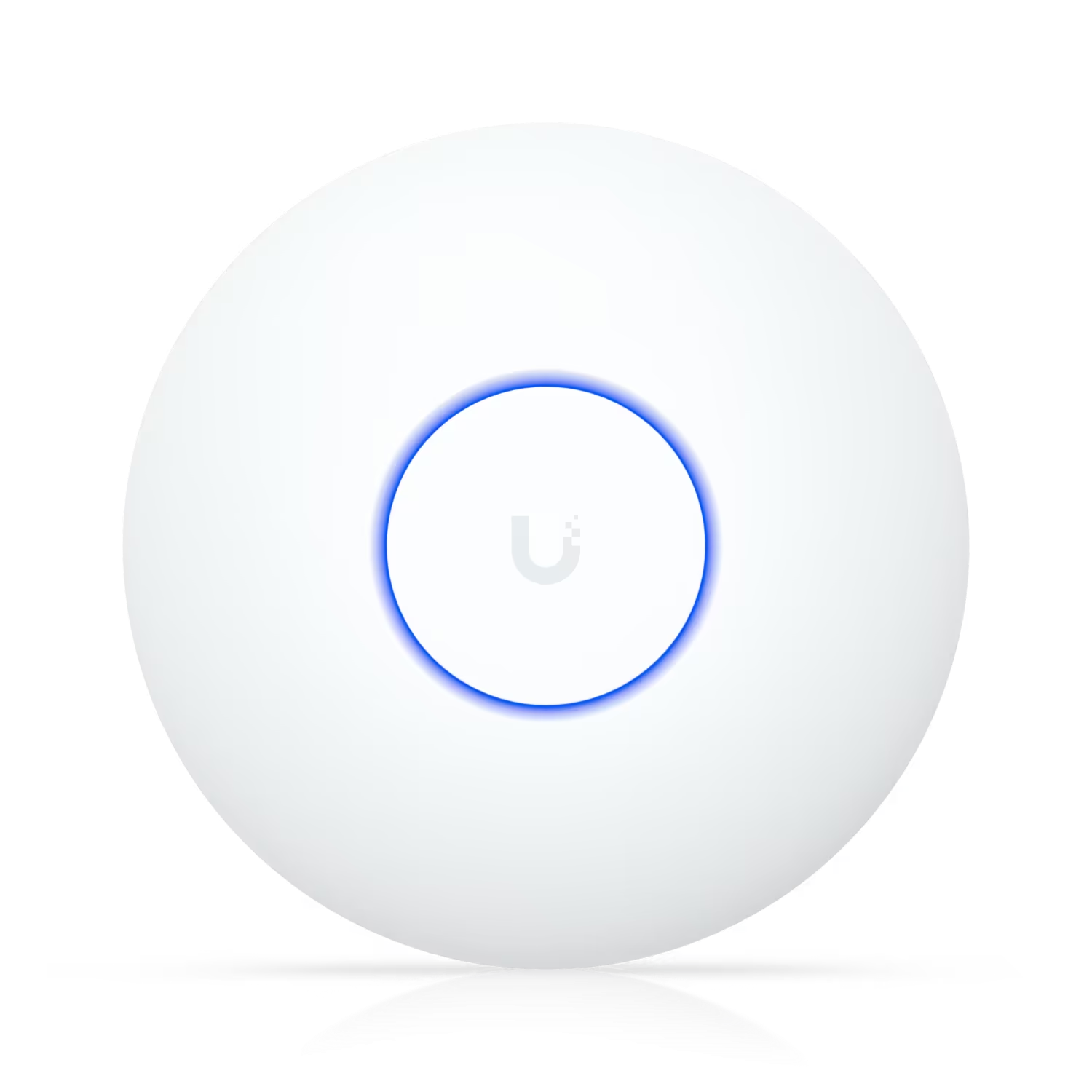

Ubiquiti U7 Lite Ceiling-Mounted WiFi 7 Access Point (U7-Lite)

The Ubiquiti U7 Lite Ceiling-Mounted WiFi 7 Access Point (U7-Lite) is a next-generation wireless solution engineered to deliver ultra-fast connectivity, improved efficiency, and enhanced performance for modern networks. Built on the latest WiFi 7 (802.11be) standard, this compact and stylish access point is ideal for offices, homes, and high-density environments. With a 2.5 Gigabit uplink, advanced MU-MIMO technology, and seamless roaming capabilities, the U7 Lite ensures reliable, high-speed wireless coverage while supporting a large number of connected devices.

Product Features

WiFi 7 Ultra-High-Speed Performance

Leverages the latest 802.11be standard to deliver speeds up to 4.3 Gbps on the 5 GHz band, ensuring faster data transfer and lower latency.

Ceiling-Mounted Design

Designed for ceiling and wall mounting, providing optimal signal distribution and clean, professional installation in indoor environments.

2.5 Gigabit Ethernet Uplink

Equipped with a 2.5 GbE port to support higher throughput and maximize network performance for demanding applications.

Advanced MU-MIMO Technology

Features 2×2 MU-MIMO on both 2.4 GHz and 5 GHz bands, enabling efficient communication with multiple devices simultaneously.

Wide Coverage Area

Covers up to 115 m², making it suitable for medium to large indoor spaces requiring consistent wireless performance.

High Device Capacity

Supports over 200 concurrent clients, ensuring stable connectivity in busy environments such as offices and shared spaces.

Seamless Roaming and Optimization

Supports fast roaming (802.11r), band steering, and radio resource management for uninterrupted connectivity and improved user experience.

Advanced Security and Guest Management

Includes captive portal, guest network isolation, private pre-shared keys, and RADIUS over TLS for secure and flexible network control.

Mesh Networking Support

Enables wireless meshing for extended coverage and simplified deployment without additional cabling.

Durable and Modern Build

Constructed with UV-stabilized polycarbonate and designed for long-term durability in various indoor conditions.

Product Specifications

• WiFi Standard: 802.11be (WiFi 7)
• Spatial Streams: 4
• MIMO Technology: 2×2 MU-MIMO (2.4 GHz and 5 GHz)
• Max Data Rate: 4.3 Gbps (5 GHz), 688 Mbps (2.4 GHz)
• Coverage Area: Up to 115 m²
• Max Client Count: 200+ devices
• Networking Interface: 1 x 2.5 Gigabit Ethernet (RJ45) port
• Power Method: PoE
• Max Power Consumption: 13 W
• Supported Voltage Range: 42.5 to 57V DC
• Antenna Gain: 5 dBi (5 GHz), 4 dBi (2.4 GHz)
• Max TX Power: 24 dBm (5 GHz), 23 dBm (2.4 GHz)
• Max BSSIDs: 8 per radio
• Wireless Standards Supported: WiFi 7 (802.11be), WiFi 6 (802.11ax), WiFi 5 (802.11ac), 802.11n
• Channel Bandwidth: 20, 40, 80, 160, and 240 MHz
• Wireless Features: Mesh networking, band steering, fast roaming (802.11r), 802.11k, 802.11v
• Guest Features: Captive portal, voucher authentication, payment integration, guest isolation
• Security Features: RADIUS over TLS, dynamic VLAN, PPSK, device isolation
• Operating Temperature: -30°C to 40°C
• Operating Humidity: 5% to 95% non-condensing
• Dimensions: 171.5 mm diameter x 33 mm height
• Weight: 313 g
• Mounting: Ceiling and wall mount (lite mount included)
• Enclosure Material: UV-stabilized polycarbonate
• Certifications: CE, FCC, IC, SRRC, Anatel
• Management Interface: Ethernet
• Management Software: UniFi Network version 9.0.114 and later
• Mobile App Support: iOS and Android UniFi Network applications
