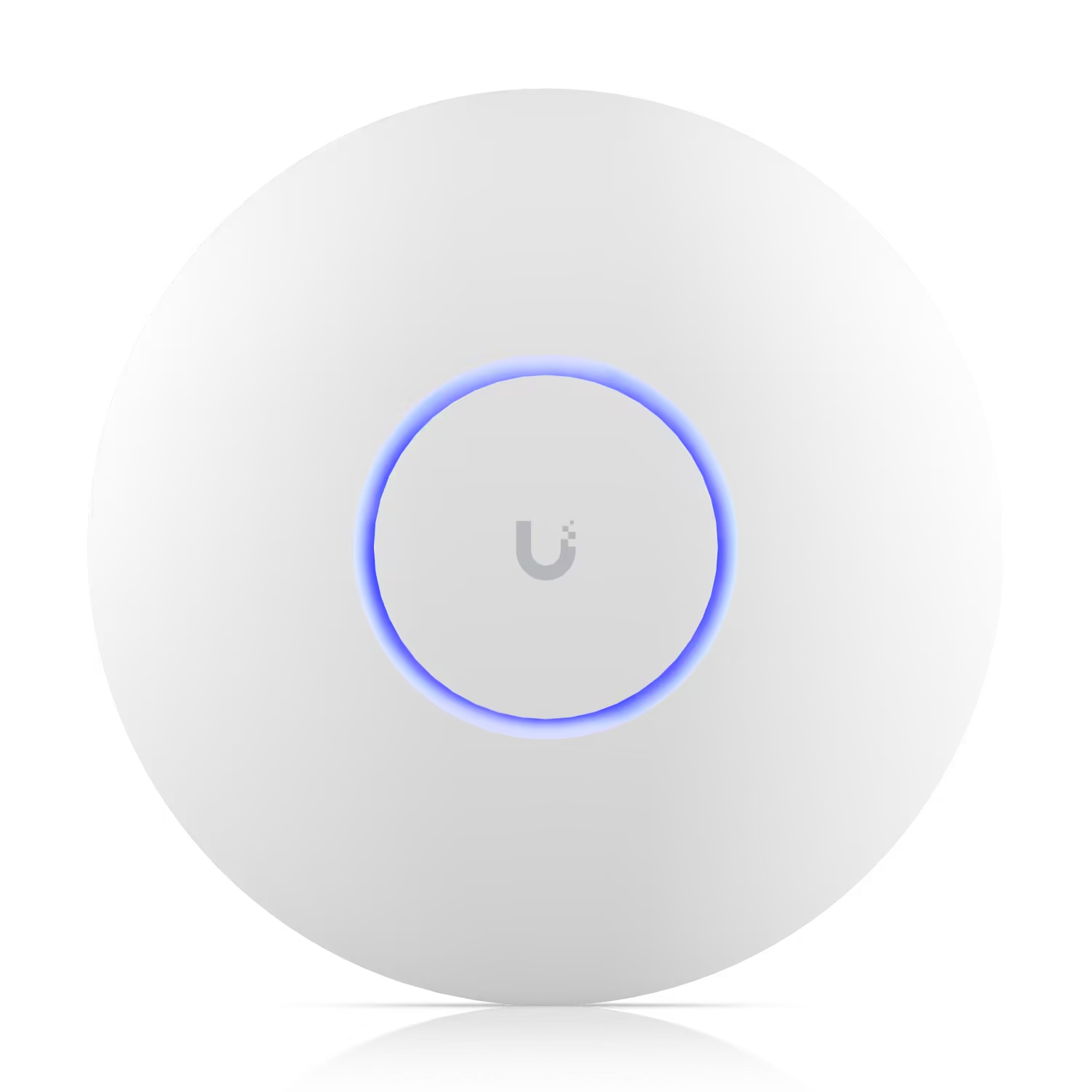

Ubiquiti Ceiling-mounted WiFi 7 Access Point with 8 Spatial Streams (U7-Pro-Max)

The Ubiquiti U7-Pro-Max Ceiling-mounted Access Point delivers ultra-fast Wi-Fi 7 connectivity for high-density indoor environments. Designed for offices, auditoriums, and commercial spaces, it supports up to 500 simultaneous clients across 160 m², ensuring seamless streaming, low-latency gaming, and reliable business communications. With advanced MU-MIMO technology, multi-band operation, and PoE+ support, the U7-Pro-Max provides high-performance wireless networking while maintaining a sleek, ceiling-mounted design that blends with any indoor environment.

Product Features

High-Speed Wi-Fi 7 Connectivity

Supports the latest 802.11be standard, offering multi-gigabit speeds of up to 8.6 Gbps on 5 GHz and 5.8 Gbps on 6 GHz, with 688 Mbps on 2.4 GHz for comprehensive multi-band coverage.

Advanced MU-MIMO Technology

Equipped with 4×4 MU-MIMO on 5 GHz, 2×2 MU-MIMO on 6 GHz and 2.4 GHz, enabling simultaneous data transmission to multiple devices without network slowdowns.

High-Capacity Client Handling

Supports over 500 connected devices, making it ideal for high-density environments like offices, schools, and public venues.

Ceiling and Wall Mount Flexibility

Includes a professional ceiling mount and optional wall mounting, offering versatile installation options for optimal coverage.

Intelligent Network Management

Features wireless meshing, band steering, advanced radio management, and guest network isolation. Supports captive portals, voucher-based authentication, and dynamic VLAN assignment for enterprise-grade network control.

Real-Time Spectral Analysis

Enables network administrators to monitor spectrum activity, identify interference, and optimize Wi-Fi performance for uninterrupted connectivity.

Power over Ethernet (PoE+)

Simplifies installation with a single cable delivering both power and data, reducing wiring complexity.

Product Specifications

• Dimensions: ⌀206 x 46 mm (⌀8.1 x 1.8″)
• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Spatial Streams: 8
• Coverage Area: 160 m² (1,750 ft²)
• Maximum Client Count: 500+
• Uplink: 2.5 GbE
• Mounting: Ceiling, Wall (Pro Mount Included)
• Power Method: PoE+
• MIMO:
  • 6 GHz: 2×2 DL/UL MU-MIMO
  • 5 GHz: 4×4 DL/UL MU-MIMO
  • 2.4 GHz: 2×2 DL/UL MU-MIMO
• Max Data Rate:
  • 6 GHz: 5.8 Gbps (BW320)
  • 5 GHz: 8.6 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
  • 6 GHz: 5.9 dBi
  • 5 GHz: 6 dBi
  • 2.4 GHz: 4 dBi
• Max TX Power: 6 GHz – 23 dBm, 5 GHz – 29 dBm, 2.4 GHz – 23 dBm
• Max BSSIDs: 8 per radio
• Supported Data Rates: 802.11be, 802.11ax (Wi-Fi 6/6E), 802.11ac, 802.11n
• Max Power Consumption: 25W
• Supported Voltage Range: 44–57V DC
• Networking Interface: 1/2.5 GbE RJ45 port
• Weight: 680 g (1.5 lb)
• Enclosure Material: Polycarbonate, aluminum
• Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
• LEDs: System White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel
• Operating Frequency: 2.4 GHz, 5 GHz, 6 GHz bands (varies by region)
• Operating Temperature: -30 to 50°C (-22 to 122°F)
• Operating Humidity: 5–95% noncondensing
• Software Requirements: UniFi Network Version 8.2.93 and later
