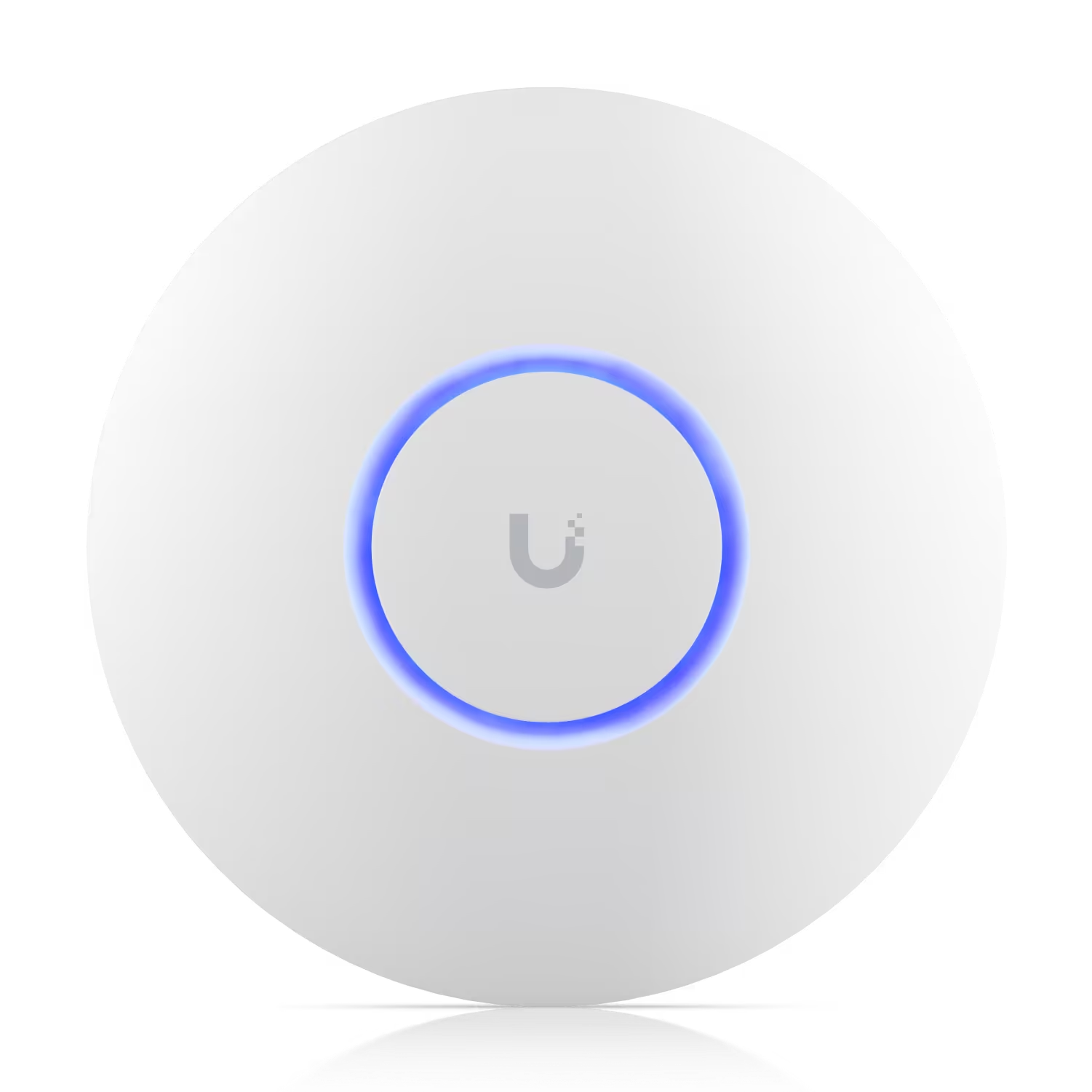

Ubiquiti UniFi WiFi 6 Access Point (U6+)

The Ubiquiti UniFi WiFi 6 Access Point (U6+) is a high-performance wireless access point designed to deliver fast, reliable, and scalable WiFi coverage for homes, offices, and enterprise environments. Built with WiFi 6 technology and advanced MU-MIMO capabilities, it supports high client density while maintaining strong throughput and stable connectivity. With coverage of up to 140 m² and support for 300+ concurrent clients, the U6+ is optimized for modern networks requiring efficient bandwidth management, seamless roaming, and advanced security features. Its PoE-powered design, compact form factor, and integration with the UniFi Network platform make it a powerful and flexible networking solution.

Product Features

WiFi 6 technology for high-speed performance

The U6+ utilizes the WiFi 6 (802.11ax) standard to deliver improved efficiency, lower latency, and higher throughput. It supports advanced modulation and channel bandwidth options up to 160 MHz, enabling faster data transmission for compatible devices.

Dual-band 2×2 MU-MIMO performance

Featuring 2×2 MU-MIMO on both 5 GHz and 2.4 GHz bands, the access point supports simultaneous uplink and downlink communication. This enhances performance in environments with multiple connected devices.

High data rates and bandwidth support

The 5 GHz band supports data rates up to 2.4 Gbps with 160 MHz channel bandwidth, while the 2.4 GHz band supports up to 573.5 Mbps. This ensures strong performance for streaming, conferencing, and high-demand applications.

Wide coverage and high client capacity

Designed to cover up to 140 m², the U6+ supports 300+ concurrent clients, making it suitable for high-density environments such as offices, schools, and commercial spaces.

Advanced roaming and network optimization

The device supports 802.11k, 802.11v, and 802.11r technologies for fast roaming and improved client handoff. Features such as band steering and advanced radio management help optimize wireless performance automatically.

Secure guest and enterprise features

The access point includes guest network isolation, captive portal support, voucher authentication, private pre-shared keys, RADIUS integration, and dynamic VLAN assignment. These features enhance network security and customization.

Flexible mounting and PoE power

The U6+ supports ceiling and wall mounting with included hardware. It is powered via Power over Ethernet (PoE), simplifying installation by using a single Ethernet cable for both data and power.

Centralized management with UniFi Network

The access point is managed through the UniFi Network application, enabling centralized configuration, monitoring, firmware updates, and advanced network control.

Product Specifications

• Model: Ubiquiti UniFi WiFi 6 Access Point (U6+)
• WiFi Standard: WiFi 6 (802.11ax)
• Spatial Streams: 4
• Coverage Area: Up to 140 m² (1,500 ft²)
• Maximum Client Capacity: 300+ clients
• Uplink Interface: 1 x Gigabit Ethernet (GbE) RJ45
• Power Method: Power over Ethernet (PoE)
• Supported Voltage Range: 44–57V DC
• Maximum Power Consumption: 9W
• MIMO:
  • 5 GHz: 2×2 MU-MIMO (DL/UL)
  • 2.4 GHz: 2×2 MU-MIMO (DL/UL)
• Maximum Data Rate:
  • 5 GHz: Up to 2.4 Gbps (160 MHz)
  • 2.4 GHz: Up to 573.5 Mbps (40 MHz)
• Antenna Gain:
  • 5 GHz: 5.4 dBi
  • 2.4 GHz: 3 dBi
• Max TX Power:
  • 5 GHz: 23 dBm
  • 2.4 GHz: 23 dBm
• Max BSSIDs: 8 per radio
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 MHz
• Operating Frequency:
  • US/CA: 2400–2472 MHz, 5150–5850 MHz
  • Worldwide: 2400–2483.5 MHz, 5150–5850 MHz
• Dimensions: ⌀160 x 33 mm (⌀6.3 x 1.3 in)
• Weight: 338 g (device), 413 g (with mount)
• Enclosure Material: Polycarbonate and aluminum
• Mount Material: ABS and SGCC steel
• Operating Temperature: -30°C to 60°C
• Operating Humidity: 5% to 95% non-condensing
• Management Software: UniFi Network (Version 7.3.76 and later)
• Certifications: CE, FCC, IC, SRRC, Anatel
• NDAA Compliant: Yes
