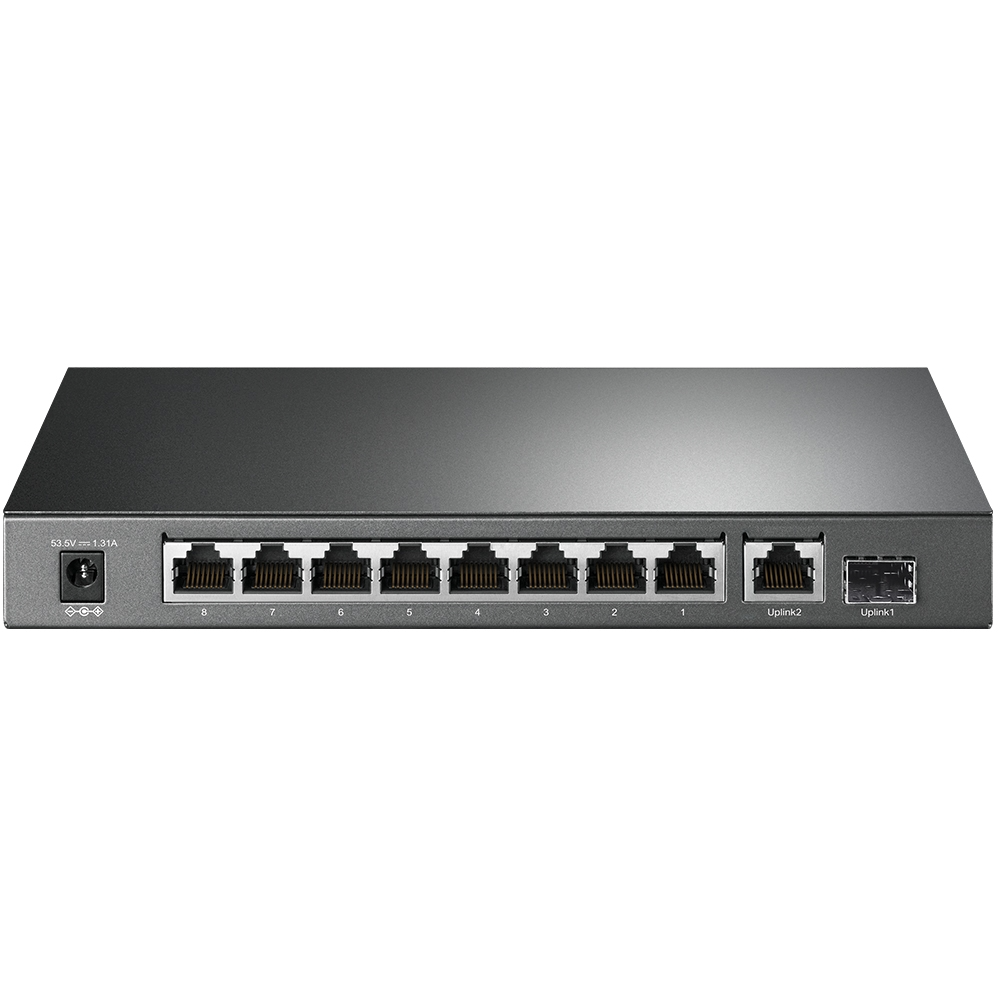

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ (TL-SG1210P)

The TP-Link TL-SG1210P is a high-performance 10-port gigabit desktop switch designed for small to medium-sized offices. It combines eight PoE+ ports with one additional uplink port and a Gigabit SFP slot, allowing simultaneous power and data transmission over a single cable. With advanced features like 802.1p/DSCP QoS and IGMP snooping, this switch ensures smooth connectivity for latency-sensitive applications such as IP cameras, VoIP phones, and wireless access points. Its plug-and-play design, fanless operation, and durable construction make it easy to deploy in diverse office environments while maintaining energy efficiency.

Product Features

Eight PoE+ Ports for Power and Data

The switch supports eight PoE+ ports, delivering up to 30 W per port and a total budget of 63 W, allowing connected devices to receive both power and data over a single cable.

Gigabit Connectivity

Nine 10/100/1000 Mbps RJ45 ports and one Gigabit SFP port provide high-speed wired connectivity for desktops, servers, and network storage devices.

Advanced QoS

Supports 802.1p/DSCP QoS to prioritize latency-sensitive traffic, ensuring smooth performance for VoIP calls, video streaming, and critical business applications.

Fanless and Quiet Design

The TL-SG1210P features a fanless design for silent operation, making it ideal for office desktops or shared spaces.

Easy Setup

Plug-and-play functionality requires no configuration, enabling quick deployment and simplified network expansion.

Network Management Enhancements

Supports IGMP snooping for optimized multicast traffic handling, improving bandwidth efficiency in mixed network environments.

Product Specifications

• Interface: 8 PoE+ 10/100/1000 Mbps RJ45 ports, 1 10/100/1000 Mbps RJ45 port, 1 Gigabit SFP slot
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 (max 100 m)
  • 100BASE-TX: UTP category 5, 5e (max 100 m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above (max 100 m)
  • 1000BASE-X: MMF, SMF
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• Power Supply: External adapter, 53.5 VDC / 1.31 A
• Packet Forwarding Rate: 14.88 Mpps
• PoE Ports: Ports 1–8, 802.3at/af compliant, 63 W total power budget
• MAC Address Table: 4K
• Jumbo Frame: 16 KB
• Switching Capacity: 20 Gbps
• Dimensions (W × D × H): 209 × 126 × 26 mm
• Max Power Consumption: 7.11 W (no PD connected), 78.13 W (with 63 W PD connected)
• Max Heat Dissipation: 24.25 BTU/h (no PD connected), 266.42 BTU/h (with 63 W PD connected)
• Advanced Features: IEEE 802.3af/at PoE support, 802.3x flow control, 802.1p/DSCP QoS, IGMP snooping
• Transmission Method: Store-and-forward
• Certifications: CE, FCC, RoHS
• Package Content: TL-SG1210P, power adapter, installation guide
• Operating Temperature: 0°C–40°C (32°F–104°F)
• Storage Temperature: -40°C–70°C (-40°F–158°F)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing
