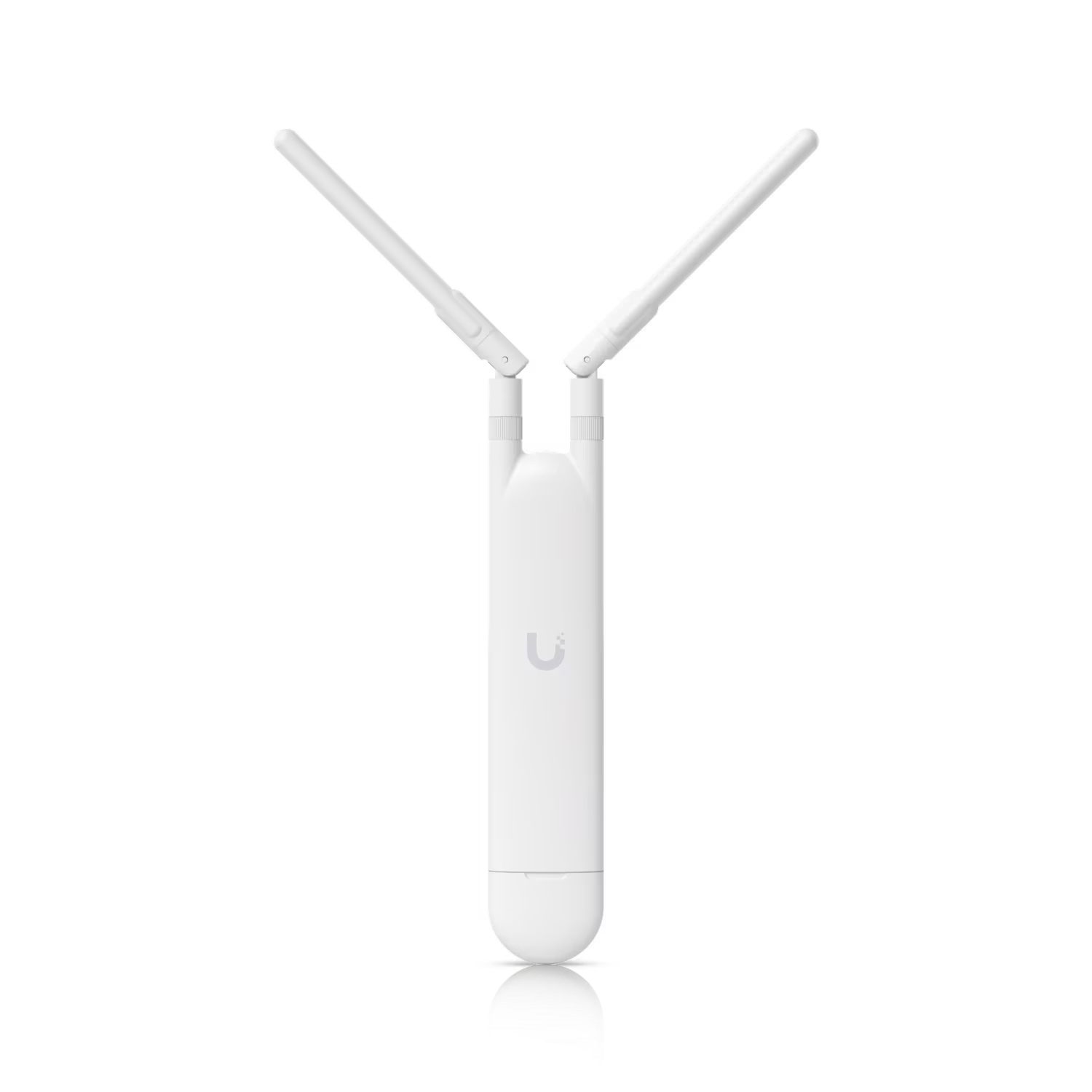

Ubiquiti UniFi Mesh Access Point (UAP-AC-M)

The Ubiquiti UniFi Mesh Access Point (UAP-AC-M) provides reliable Wi-Fi 5 coverage for indoor and outdoor environments, making it perfect for homes, offices, and campus networks. Designed for flexible deployment, it supports over 200 clients across 140 m² while offering seamless roaming and robust MU-MIMO performance. With weatherproof IPX4 protection, PoE support, and versatile wall or pole mounting, the UAP-AC-M delivers scalable wireless connectivity for high-density mesh networks.

Product Features

Dual-Band Wi-Fi 5 Connectivity

Supports 802.11ac (Wi-Fi 5) with speeds up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for consistent high-speed coverage.

MU-MIMO Technology

Equipped with 2×2 MU-MIMO on both 5 GHz and 2.4 GHz bands, enabling simultaneous connections to multiple devices for smooth network performance.

Flexible Mounting Options

Includes wall and pole mounts for easy deployment in indoor or outdoor locations to maximize coverage.

Mesh Networking Capabilities

Supports wireless meshing, allowing multiple APs to expand coverage seamlessly without complex cabling.

Intelligent Network Management

Includes band steering, advanced radio management, guest network isolation, captive portals, and dynamic VLAN support for enterprise-grade control.

Power over Ethernet (PoE)

Simplifies installation by combining power and data through a single Ethernet cable, reducing the need for additional wiring.

Weather-Resistant Design

IPX4-rated for protection against light rain and splashes, making it suitable for semi-outdoor deployment.

Product Specifications

• Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4″)
• Wi-Fi Standard: Wi-Fi 5 (802.11ac)
• Spatial Streams: 4
• Coverage Area: 140 m² (1,500 ft²)
• Maximum Client Count: 200+
• Uplink: GbE
• Mounting: Wall, Pole (Mounts Included)
• Weatherproofing: IPX4
• Power Method: PoE (Includes PoE Adapter)
• MIMO:
  • 5 GHz: 2×2 DL MU-MIMO
  • 2.4 GHz: 2×2 DL MU-MIMO
• Max Data Rate:
  • 5 GHz: 867 Mbps (BW80)
  • 2.4 GHz: 300 Mbps (BW40)
• Antenna Gain: 5 GHz – 4 dBi, 2.4 GHz – 3 dBi
• Max TX Power: 5 GHz – 20 dBm, 2.4 GHz – 20 dBm
• Max BSSIDs: 8 per radio
• Supported Data Rates: 802.11ac, 802.11n
• Max Power Consumption: 8.5W
• Supported Voltage Range: 44–57V DC
• Networking Interface: (1) GbE RJ45 port
• Weight: 152 g (5.4 oz)
• Pole Mount Diameter: 1–3″ (25–76 mm)
• Enclosure Material: Polycarbonate
• Channel Bandwidth: HT 20/40, VHT 20/40/80 (MHz)
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, UKCA, Anatel
• Operating Frequency: 2.4 GHz, 5 GHz (region-dependent)
• Operating Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 5–95% noncondensing
• Software Requirements: UniFi Network Version 6.0.45 and later
