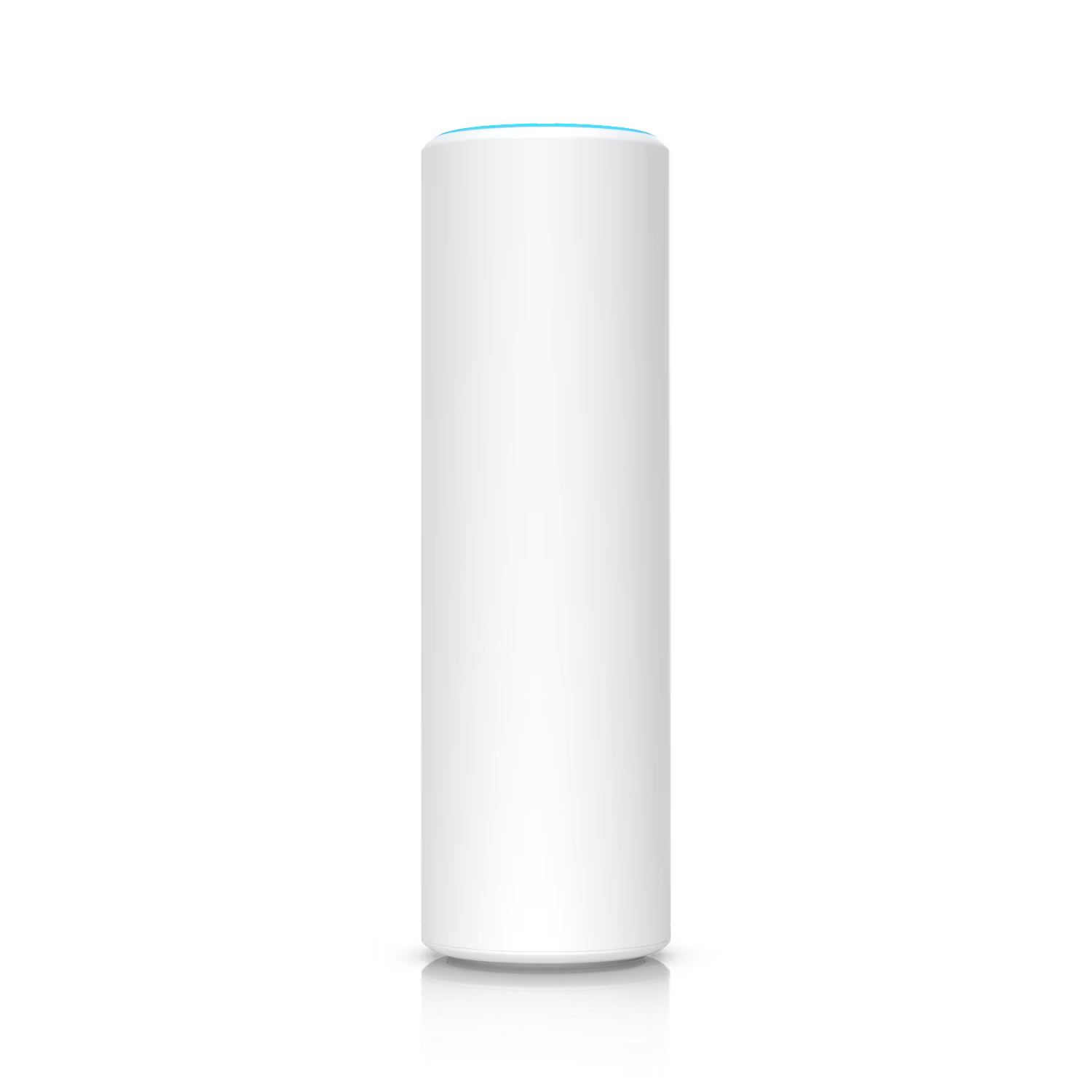

Ubiquiti UniFi AP WiFi 6 Mesh Access Point (U6-MESH)

The Ubiquiti UniFi AP WiFi 6 Mesh Access Point (U6-MESH) is a high-performance, weather-resistant wireless access point designed to deliver fast and reliable WiFi 6 connectivity in both indoor and outdoor environments. With advanced mesh technology, high client capacity, and robust dual-band performance, this access point ensures seamless coverage across large areas. Its compact cylindrical design, flexible mounting options, and enterprise-grade security features make it ideal for businesses, campuses, hotels, and outdoor deployments requiring scalable and efficient wireless networking.

Product Features

WiFi 6 High-Speed Connectivity

Powered by the latest 802.11ax standard, delivering speeds up to 4.8 Gbps on the 5 GHz band for faster data transfer and improved network efficiency.

Mesh Networking Capability

Supports wireless meshing, enabling flexible deployment and extended coverage without the need for additional cabling.

Indoor and Outdoor Deployment

Designed with IPX5 weather resistance, making it suitable for both indoor and outdoor environments.

Wide Coverage Area

Provides coverage of up to 140 m², ensuring strong and consistent wireless signals across large spaces.

Advanced MU-MIMO Technology

Equipped with 4×4 MU-MIMO on 5 GHz and 2×2 MU-MIMO on 2.4 GHz, allowing multiple devices to connect simultaneously with optimal performance.

High Client Capacity

Supports over 250 concurrent devices, making it ideal for high-density environments such as offices, campuses, and public spaces.

Flexible Mounting Options

Includes wall and pole mounting kits, allowing versatile installation in various deployment scenarios.

Power over Ethernet Support

Powered via PoE with an included adapter, simplifying installation and reducing cable requirements.

Advanced Roaming and Optimization

Features fast roaming (802.11r), band steering, and radio resource management for seamless connectivity and optimized performance.

Enterprise Security and Guest Management

Includes captive portal, guest network isolation, voucher authentication, and advanced security protocols such as RADIUS over TLS and dynamic VLAN assignment.

Product Specifications

• WiFi Standard: 802.11ax (WiFi 6)
• Spatial Streams: 6
• MIMO Technology: 4×4 MU-MIMO (5 GHz), 2×2 MU-MIMO (2.4 GHz)
• Max Data Rate: 4.8 Gbps (5 GHz), 573.5 Mbps (2.4 GHz)
• Coverage Area: Up to 140 m²
• Max Client Count: 250+ devices
• Networking Interface: 1 x Gigabit Ethernet (RJ45) port
• Power Method: PoE (adapter included)
• Supported Voltage Range: 44 to 57V DC
• Max Power Consumption: 13 W
• Antenna Gain: 5 dBi (5 GHz), 3 dBi (2.4 GHz)
• Max TX Power: 26 dBm (5 GHz), 22 dBm (2.4 GHz)
• Max BSSIDs: 8 per radio
• Wireless Features: Mesh networking, band steering, fast roaming (802.11r), 802.11k, 802.11v
• Guest Features: Captive portal, voucher authentication, payment integration, guest isolation
• Security Features: RADIUS over TLS, dynamic VLAN, PPSK, device isolation
• Operating Frequency: 2.4 GHz and 5 GHz bands (region dependent)
• Operating Temperature: -30°C to 60°C
• Operating Humidity: 5% to 95% non-condensing
• Dimensions: 48.5 mm diameter x 159.5 mm height
• Weight: 400 g
• Mounting: Wall and pole mount (included)
• Weatherproof Rating: IPX5
• Enclosure Material: Polycarbonate and aluminum
• Certifications: CE, FCC, IC, SRRC, Anatel
• Management Interface: Ethernet
• Management Software: UniFi Network (version 6.0.45 and later)
