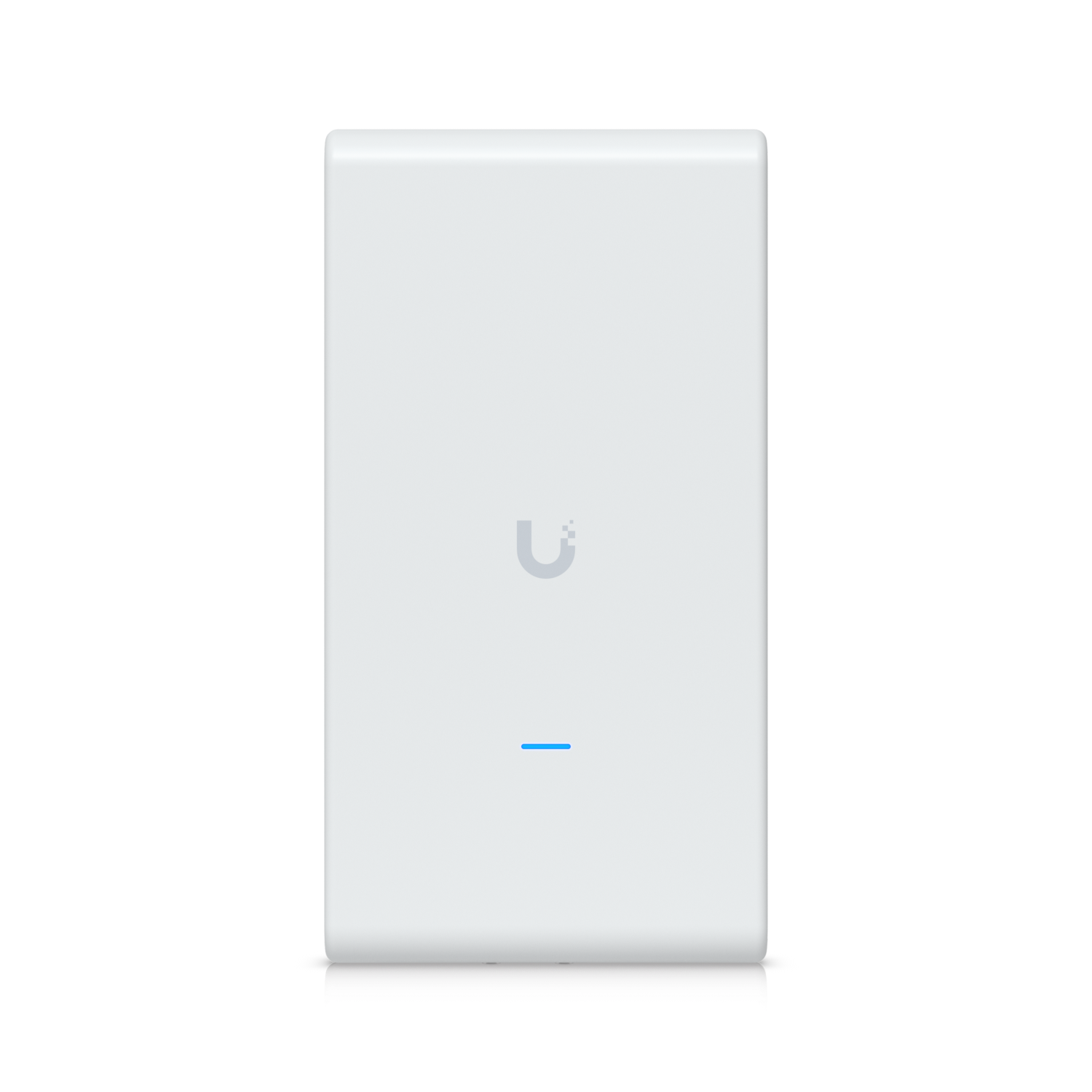

Ubiquiti U6 Mesh Pro WiFi 6 Access Point (U6-Mesh-Pro)

The Ubiquiti U6 Mesh Pro WiFi 6 Access Point delivers high-performance wireless connectivity for homes, offices, and commercial spaces, supporting the latest WiFi 6 standard for faster speeds and better efficiency. With coverage up to 185 m² (2,000 ft²) and the ability to handle 250+ clients, this access point is ideal for dense environments. Its MIMO technology, band steering, and advanced radio management ensure consistent, reliable connections across multiple devices. Built for outdoor deployment, it features IPX6 weatherproofing and flexible mounting options, making it perfect for expanding your network with a resilient and scalable solution.

Product Features

Wireless Meshing

Seamlessly expand your network without complex cabling by linking multiple access points in a mesh configuration.

Band Steering

Automatically directs dual-band clients to the most efficient frequency, optimizing overall network performance.

Fast Roaming (802.11r)

Ensures smooth transitions for mobile devices moving across coverage zones, minimizing dropped connections.

Radio Resource Management (802.11k & Advanced RRM)

Dynamically monitors and manages radio channels to reduce interference and maintain optimal signal quality.

Captive Hotspot & Guest Access

Supports customizable landing pages, voucher authentication, payment-based access, and external portal server integration for secure guest networking.

Security & Client Management

Includes guest network isolation, client device isolation, private pre-shared keys, WiFi speed limiting, and RADIUS over TLS (RadSec) for secure network access control.

Product Specifications

• Dimensions: 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4″)
• WiFi Standard: WiFi 6 (802.11ax)
• Spatial Streams: 4
• Coverage Area: 185 m² (2,000 ft²)
• Max. Client Count: 250+
• Uplink: GbE
• Mounting: Wall, Pole (Mounts Included)
• Weatherproofing: IPX6
• Power Method: PoE (42.5–57V DC, includes PoE adapter)
• Performance:
  • 5 GHz: 2 x 2 MU-MIMO, 2.4 Gbps max data rate, 8 dBi antenna gain, 27 dBm max TX power
  • 2.4 GHz: 2 x 2 MU-MIMO, 573.5 Mbps max data rate, 8 dBi antenna gain, 22 dBm max TX power
• Max. BSSIDs: 8 per radio
• Supported Data Rates:
  • 802.11ax: 7.3 Mbps – 2.4 Gbps
  • 802.11ac: 6.5 Mbps – 1.7 Gbps
  • 802.11n: 6.5 Mbps – 300 Mbps
• Hardware:
  • Max Power Consumption: 9W
  • Networking Interface: 2 GbE RJ45 ports
  • Weight: 819 g (1.8 lb)
  • Pole Mount Diameter: 1–2.5″ (25–63.5 mm)
  • Enclosure Material: UV-stabilized polycarbonate
  • Mount Material: Aluminum alloy, steel
  • LEDs: White/Blue system indicators
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
• NDAA Compliant
• Certifications: CE, FCC, IC, Anatel: 06377-24-08356
• Operating Frequency: US/CA: 2400–2472 MHz, 5150–5250 MHz, 5250–5350 MHz, 5470–5725 MHz, 5725–5850 MHz; Worldwide: 2400–2483.5 MHz, 5150–5850 MHz
• Operating Temperature: -30 to 60° C (-22 to 140° F)
• Operating Humidity: 5–95% noncondensing
• Software Requirements: UniFi Network Version 8.1.127 or later
