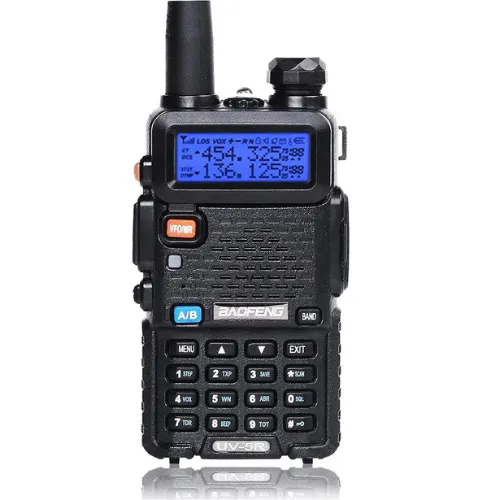

Baofeng UV-5R 5km Range Walkie Talkie

The Baofeng UV-5R 5km Range Walkie Talkie is a versatile dual-band two-way radio designed for reliable communication in security operations, construction sites, outdoor adventures, emergency response, event coordination, and everyday professional use. Supporting both VHF and UHF frequencies, this compact handheld radio delivers clear long-range communication with up to 5 km coverage in normal conditions and extended performance in open terrain. Featuring 128 programmable channels, dual-band display, VOX hands-free communication, emergency alarm functions, and a durable rechargeable battery, the Baofeng UV-5R offers dependable performance for personal and commercial communication needs.

Product Features

Dual Band VHF and UHF Support

The Baofeng UV-5R operates on both VHF 136–174 MHz and UHF 400–520 MHz frequencies, allowing flexible communication across multiple channels and environments.

Long Range Communication

Designed to provide reliable communication coverage of up to 5 km under normal conditions, with extended range possible in open or elevated areas.

Adjustable Power Output

The radio supports selectable low and high transmission power settings, including 1W low power mode and up to 4–5W high power output for improved range and battery management.

128 Programmable Channels

With support for 128 programmable memory channels, the UV-5R allows efficient communication organization for teams, events, and professional operations.

Clear Audio Performance

The built-in 1W speaker and integrated microphone deliver loud and clear audio transmission for dependable communication in noisy environments.

Long-Lasting Rechargeable Battery

Equipped with an 1800mAh rechargeable Li-ion battery, the radio provides up to approximately 12 hours of operation depending on usage.

Dual Display and Dual Standby

The backlit LCD screen supports dual-band display and dual standby functionality, enabling users to monitor two frequencies simultaneously.

VOX Hands-Free Communication

The integrated VOX feature allows voice-activated transmission for convenient hands-free operation during work or outdoor activities.

Built-In Emergency and Safety Features

The radio includes an emergency alarm, LED flashlight, keypad lock, busy channel lockout, and time-out timer for enhanced usability and safety.

Removable Upgradeable Antenna

The removable SMA-Female antenna design supports antenna upgrades for users who require improved signal reception and extended communication range.

Product Specifications

• Product Name: Baofeng UV-5R Walkie Talkie
• Frequency Range VHF: 136–174 MHz
• Frequency Range UHF: 400–520 MHz
• Output Power: 1W Low Power and 4–5W High Power
• Communication Range: Up to 5 km under normal conditions
• Extended Range: Up to 8+ km in open terrain
• Channel Capacity: 128 Programmable Channels
• Privacy Codes: 50 CTCSS and 104 DCS Codes
• Battery Type: 1800mAh Li-Ion Rechargeable Battery
• Battery Voltage: 7.4V
• Battery Life: Up to Approximately 12 Hours
• Charger Type: Desktop Charger Included
• Display Type: Dual-Band Backlit LCD Display
• Audio Output: Approximately 1W Loudspeaker
• Receiver Sensitivity: ≤ 0.2 µV at 12 dB SINAD
• Modulation Type: FM Wide and Narrow Band
• Maximum Deviation Wide Band: ±5 kHz
• Maximum Deviation Narrow Band: ±2.5 kHz
• Antenna Type: Removable SMA-Female Antenna
• Antenna Impedance: 50 Ω
• Dimensions: Approximately 110 × 58 × 32 mm
• Weight: Approximately 210–240 g with Battery and Antenna
• VOX Hands-Free Function: Yes
• Emergency Alarm Function: Yes
• LED Flashlight: Yes
• Keypad Lock: Yes
• Time-Out Timer: Yes
• Busy Channel Lockout: Yes
• Operating Temperature: –20 °C to +60 °C
• Dual Standby Function: Yes
