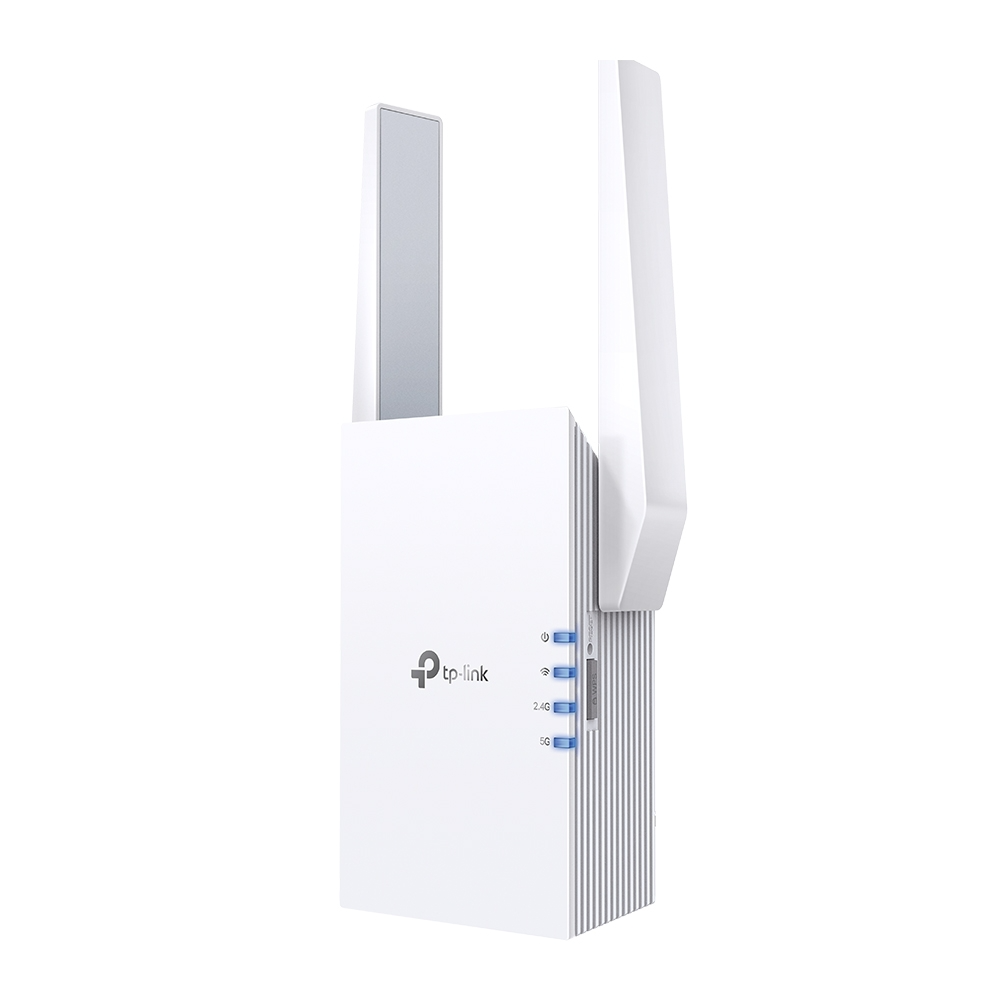

TP-Link AX1800 Wi-Fi 6 Range Extender (TL-RE605X)

Expand your Wi-Fi coverage with the TP-Link AX1800 Wi-Fi 6 Range Extender (TL-RE605X). Delivering up to 1201Mbps on 5GHz and 574Mbps on 2.4GHz, this dual-band Wi-Fi 6 extender ensures fast, reliable connections for streaming, gaming, and smart home devices. Its EasyMesh compatibility allows seamless integration with mesh networks for whole-home coverage, while the Gigabit Ethernet port enables high-speed wired connections. With AP mode, smart roaming, and simple setup via WPS or the TP-Link Tether App, the RE605X provides an efficient and user-friendly solution to eliminate Wi-Fi dead zones.

Product Features

AX1800 Dual Band Wi-Fi 6

Separates 5GHz (1201Mbps) and 2.4GHz (574Mbps) bands for faster speeds and higher network capacity using Wi-Fi 6 technology.

Smart Roaming

Maintains the fastest possible connection while moving from room to room for uninterrupted connectivity.

EasyMesh-Compatible

Integrates with EasyMesh-compatible routers to create a seamless mesh network for whole-home coverage.

Gigabit Ethernet Port

Supports high-speed wired connections for smart TVs, gaming consoles, and computers.

AP Mode

Creates a new Wi-Fi access point via the Gigabit Ethernet port to extend wired networks wirelessly.

Easy Setup

Quick installation via WPS button or through the TP-Link Tether App for intuitive management.

Ultimate Compatibility

Works with any Wi-Fi router or wireless access point to extend existing networks effortlessly.

Product Specifications

• Interface: 1 Gigabit Ethernet Port
• Buttons: WPS Button, Reset Button
• Input Power: 100-240V~50/60Hz
• Max Power Consumption: 10W
• Dimensions (W x D x H): 2.9 × 1.8 × 4.9 in. (74.0 × 46 × 124.8 mm)
• Antenna: 2 External Antennas
• Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
• Frequency: 2.4GHz and 5GHz
• Signal Rate: 574Mbps at 2.4GHz, 1201Mbps at 5GHz
• Working Modes: Range Extender / Access Point
• Reception Sensitivity: 5GHz: 11a 6Mbps: -97dBm, 11a 54Mbps: -78dBm, 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -62dBm, 11ax HE80 MCS0: -91dBm, 11ax HE80 MCS11: -61dBm; 2.4GHz: 11g 6Mbps: -96dBm, 11g 54Mbps: -78dBm, 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm
• Wireless Functions: Enable/Disable Wireless Radio, DFS (latest firmware required), Access Control, LED Control, Power Schedule, Wi-Fi Coverage Adjustment
• Wireless Security: 64/128-bit WEP, WPA/WPA2-PSK, WPA3
• Transmission Power: FCC: 2.4GHz < 30dBm, 5GHz < 30dBm; CE (EU): 2.4GHz ≤ 20dBm, 5GHz ≤ 23dBm (5.15–5.35GHz), 5GHz ≤ 30dBm (5.45–5.75GHz)
• Mesh Technology: EasyMesh-Compatible
• Network Services: Web Server (Port 80/443 TCP), DHCP Server (Port 67 UDP), App Management (Port 20001 TCP / 20002 UDP)
• Certification: CE, RoHS
• Package Contents: Wi-Fi Range Extender RE605X, Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, 7, 8, 8.1, 10, Mac OS, NetWare, UNIX, Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Environment: Operating Temperature 0℃~40℃ (32℉~104℉), Storage Temperature -40℃~70℃ (-40℉~158℉), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing
