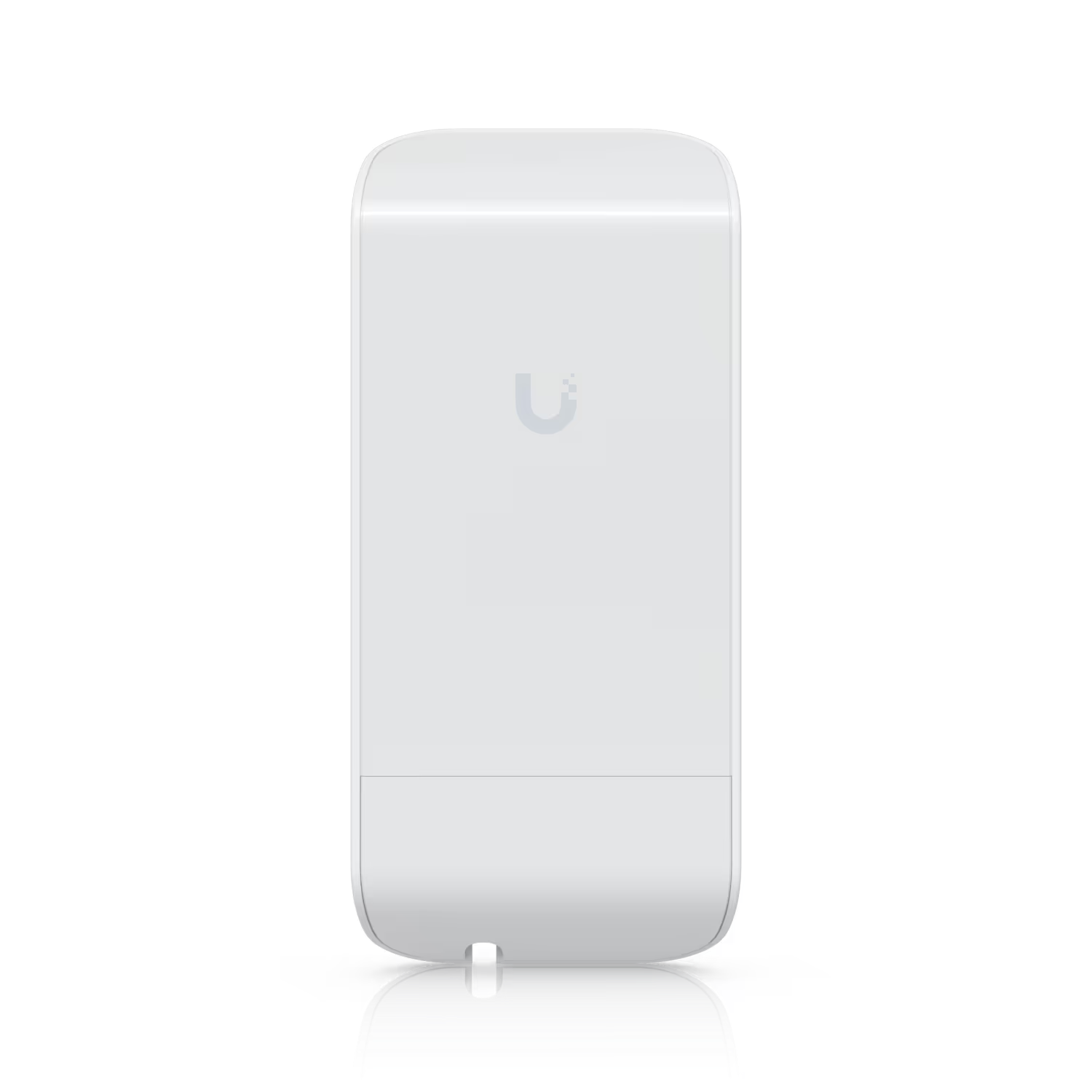

Ubiquiti airMAX NanoStation Loco M2 (LOCOM2)

The Ubiquiti airMAX NanoStation Loco M2 (LOCOM2) is a compact and affordable outdoor wireless radio designed for reliable point-to-point and point-to-multipoint connectivity in the 2.4 GHz band. Powered by Ubiquiti’s airMAX technology, it delivers stable performance, low latency, and efficient wireless transmission for short to medium-range deployments. Its lightweight design, easy installation, and durable outdoor enclosure make it an excellent choice for home network extensions, small business connectivity, and wireless ISP applications.

Product Features

Compact and Cost-Effective Design

Lightweight and space-saving form factor makes it ideal for quick deployments and budget-conscious wireless networking solutions.

Reliable 2.4 GHz Wireless Performance

Operates in the 2.4 GHz band, offering stable connectivity and better penetration through obstacles such as walls and trees.

airMAX TDMA Technology

Enhances network performance by reducing latency and improving efficiency in multi-client environments.

Single Ethernet Connectivity

Includes one 10/100 MbE RJ45 port for straightforward network integration in simple deployments.

Passive PoE Power Support

Powered via passive PoE with an included adapter, simplifying installation and reducing cabling complexity.

Durable Outdoor Construction

Built with UV-stabilized plastic and designed to operate in extreme temperatures for long-term outdoor reliability.

Integrated Directional Antenna

Features an 8.5 dBi antenna with wide beamwidth, providing consistent signal coverage for short to medium-range links.

Product Specifications

• Dimensions: 161 x 31 x 80 mm (6.3 x 1.2 x 3.2 inches)
• Weight: 180 g (6.4 oz)
• Enclosure Material: Outdoor UV-stabilized plastic
• Mounting: Pole-mount (kit included)
• Networking Interface: (1) 10/100 MbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A PoE adapter (included)
• Supported Voltage Range: 22–27V DC
• Maximum Power Consumption: 5.5W
• Operating Temperature: -30 to 75°C (-22 to 167°F)
• Operating Humidity: 5 to 95% non-condensing
• Shock and Vibration: ETSI300-019-1.4
• Certifications: FCC, IC, CE, RoHS
• NDAA Compliant: Yes
• Frequency Band: 2.4 GHz
• Operating Frequency: 2412–2462 MHz
• Antenna Gain: 8.5 dBi
• Cross-Polarization Isolation: 20 dB minimum
• Max VSWR: 1.4:1
• Beamwidth: 60° (H-pol) / 60° (V-pol) / 60° (Elevation)
• Polarization: Dual linear
