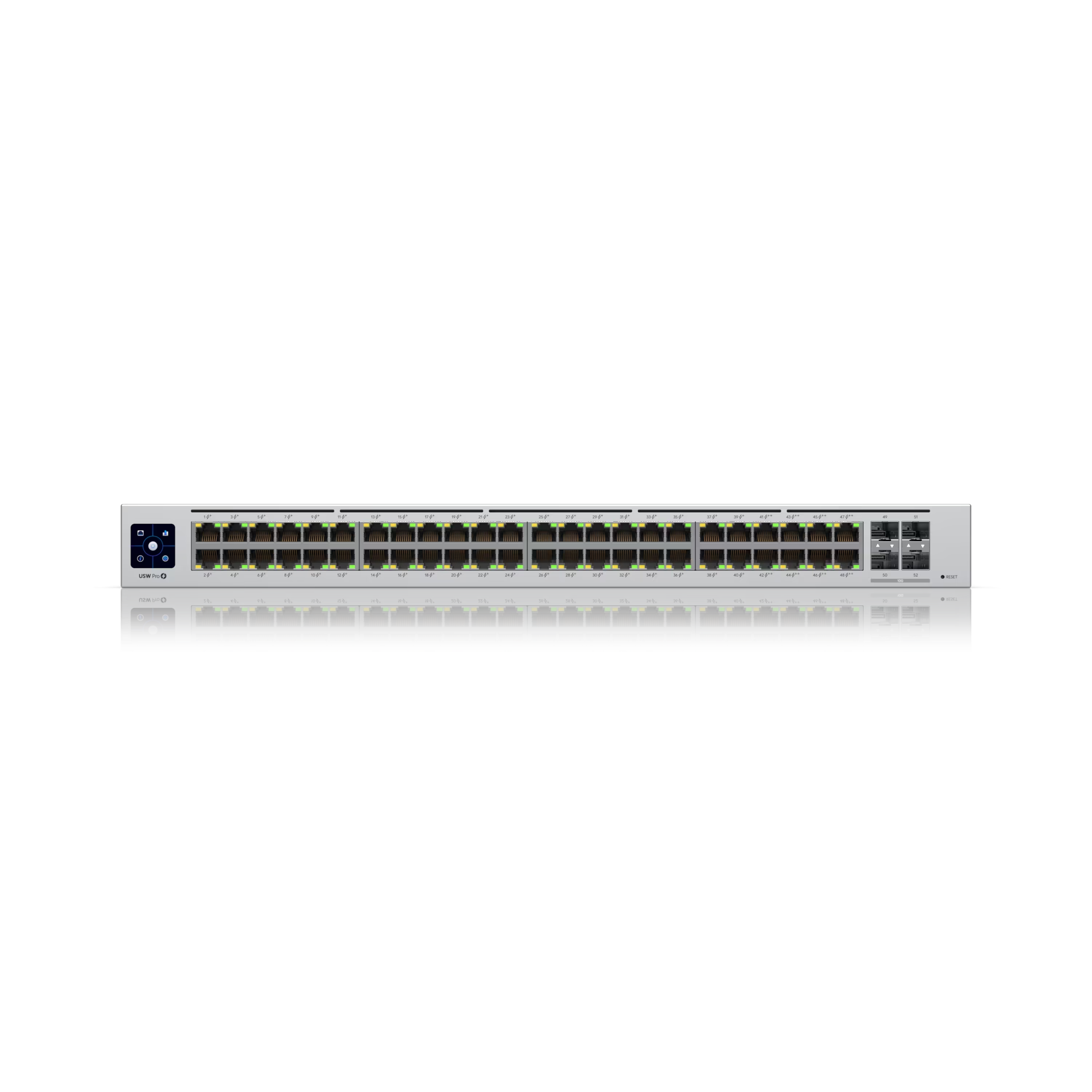

Ubiquiti UniFi Switch PRO 48 PoE (USW-Pro-48-POE)

The Ubiquiti UniFi Switch PRO 48 PoE (USW-Pro-48-POE) is a high-performance, enterprise-grade PoE+ and PoE++ managed switch designed for modern networks requiring robust Layer 2 and Layer 3 capabilities. With 48 Gigabit RJ45 ports—including 40 PoE+ and 8 PoE++—and 4 10G SFP+ uplinks, it delivers up to 600W total PoE power to efficiently support high-demand devices like access points, IP cameras, and VoIP phones. Its rack-mountable 1U form factor, advanced routing, and Pro AV support make it ideal for enterprise, campus, and AV-over-IP installations where high throughput, redundancy, and flexible network management are critical.

Product Features

High-Capacity Switching

Provides a switching capacity of 176 Gbps with non-blocking throughput of 88 Gbps, ensuring high-speed connectivity for all connected devices.

PoE+ and PoE++ Support

Supports up to 40 PoE+ ports (32W each) and 8 PoE++ ports (64W each), providing reliable power to demanding network devices.

Advanced Layer 3 & Layer 2 Capabilities

Includes inter-VLAN routing, static routing, DHCP server and relay, LACP port aggregation, STP & RSTP, QoS (DSCP), and Pro AV profiles for Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron.

Robust Security & Management

Features 802.1X control, MAC and IP-based ACLs, port isolation, jumbo frames, LLDP-MED, voice VLAN, loop protection, and a 1.3″ touchscreen LCM display for real-time monitoring and configuration.

Enterprise-Ready Design

Rack-mountable 1U form factor, SGCC steel construction, wide operating temperature range, and DC power backup support ensure reliability in demanding network environments.

Product Specifications

• Dimensions: 442 x 400 x 44 mm (17.4 x 15.7 x 1.7″)
• Port Layout: 48 x 1 GbE RJ45 (40 PoE+, 8 PoE++), 4 x 10G SFP+
• Max. PoE Output: Up to PoE++
• Total PoE Availability: 600W
• Redundancy: DC Power Backup
• Layer 3 Support: Yes
• Form Factor: Rack mount (1U)
• Switching Capacity: 176 Gbps
• Total Non-Blocking Throughput: 88 Gbps
• Forwarding Rate: 131 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• Layer 3 Table Size: ARP Entries 4,000, IPv4 Routes 1,000, IPv4 Static Routes 256
• Packet Buffer Size: 4 MB
• Access Lists: IPv4: 128, MAC: 128
• Layer 3 Features: DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
• Layer 2 Features: LACP, STP & RSTP, QoS (DSCP), Pro AV Profiles, IGMP Snooping & Querier, 802.1X, ACLs, Port Isolation, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection, Virtual Network Override
• PoE Ports: 40 PoE+, 8 PoE++
• Max. PoE Wattage per Port: PoE 15.4W, PoE+ 32W, PoE++ 64W
• Max. Power Consumption: 60W (Excluding PoE Output), 660W (Including PoE Output)
• Power Method: AC input 100–240V, 50/60 Hz; DC backup input
• Power Supply: Internal AC/DC 660W
• Supported Rack Depth: 400–1200 mm (15.7–47.2″)
• Heat Dissipation: 204.7 BTU/hr (Excluding PoE Output)
• Weight: Without brackets 6.2 kg (13.7 lb); With brackets 6.3 kg (13.9 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• LCM Display: 1.3″ touchscreen
• ESD Protection: Air ±16kV, Contact ±12kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10–90% noncondensing
• NDAA Compliant
• Certifications: CE, FCC, IC, Anatel: 13790-20-08356
• Software Requirements: UniFi Network Version 5.10.5 or later
