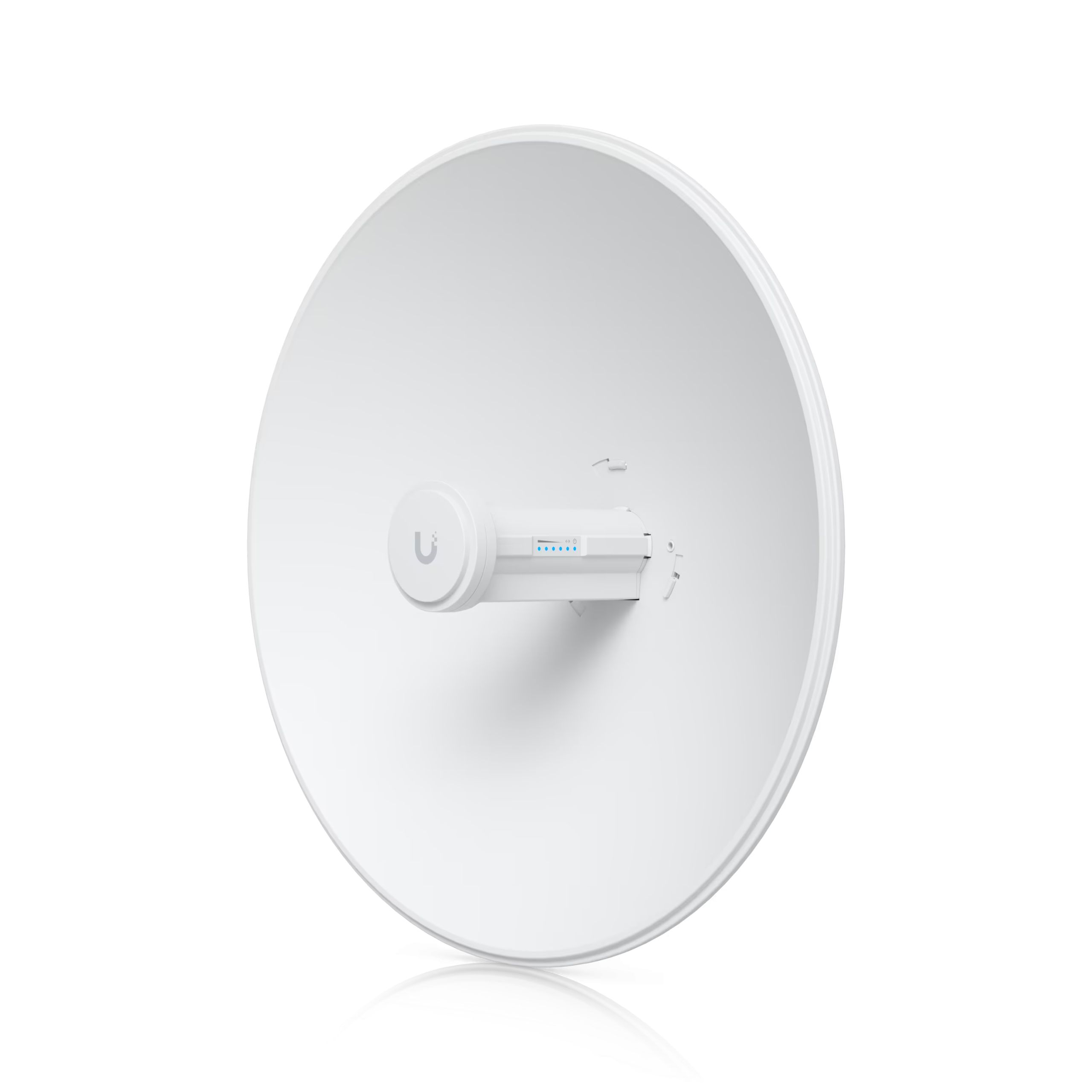

Ubiquiti airMAX PowerBeam Gen 2 5AC 5GHz Bridge (PBE-5AC-Gen2)
The Ubiquiti airMAX PowerBeam Gen 2 5AC (PBE-5AC-Gen2) is a high-performance, point-to-point (PtP) wireless bridge engineered for long-range 5 GHz connectivity. Featuring a 25 dBi directional antenna, advanced airMAX AC technology, and rugged outdoor construction, this bridge delivers high throughput, low latency, and reliable link stability over extended distances. Ideal for ISPs, enterprise networks, and remote connectivity deployments, the PowerBeam Gen 2 ensures efficient and secure wireless bridging with minimal interference, even in challenging environmental conditions.
Product Features
Long-Range Directional Connectivity
Equipped with a 25 dBi high-gain antenna, the PowerBeam Gen 2 focuses signal transmission for stable, long-distance point-to-point links.
airMAX AC Protocol Support
Optimized for airMAX AC technology, the device delivers improved throughput, reduced latency, and reliable performance in both PtP and PtMP network configurations.
Rugged Outdoor Design
Constructed from UV-stabilized plastic and powder-coated SPCC, the device withstands extreme temperatures (-40 to 70°C), high winds, and harsh weather conditions, including salt fog and wind-driven rain.
Efficient Power over Ethernet
Uses Passive PoE with low power consumption of 8.5W, simplifying installation while reducing operational costs.
Flexible Channel and Frequency Support
Supports multiple channel widths (10–80 MHz in PtP mode and 10–40 MHz in PtMP mode) and operates across the 5150–5875 MHz frequency range for worldwide deployment.
Simple Installation and Pole Mounting
Includes a pole mount kit for quick and secure installation, with integrated LED indicators for power, LAN, and WLAN status monitoring.
Product Specifications
- Model: PBE-5AC-Gen2
- Networking Interface: (1) GbE RJ45 port
- Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
- Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
- Supported Voltage Range: 20–27V DC
- Max Power Consumption: 8.5W
- Antenna Gain: 25 dBi
- Channel Sizes: PtP Mode 10/20/30/40/50/60/80 MHz, PtMP Mode 10/20/30/40 MHz
- Dimensions: 420 x 420 x 230 mm
- Weight: 2.2 kg
- Enclosure Material: UV-stabilized plastic, powder-coated SPCC
- Wind Survivability: 200 km/h (125 mph)
- Wind Loading: 380 N at 200 km/h
- Mounting: Pole mount kit included
- Ambient Operating Temperature: -40 to 70 degrees C
- Ambient Operating Humidity: 5 to 95 percent noncondensing
- ESD/EMP Protection: Air/contact ±24 kV
- Certifications: CE, FCC, IC, RoHS
- Frequency Range (Worldwide): 5150–5875 MHz
- USA Frequency Bands: U-NII-1: 5150–5250 MHz, U-NII-2A: 5250–5350 MHz, U-NII-2C: 5240–5725 MHz, U-NII-3: 5725–5850 MHz
- Management Radio Frequency: Worldwide 2412–2472 MHz, US/CA 2412–2462 MHz
- NDAA Compliant: Yes
