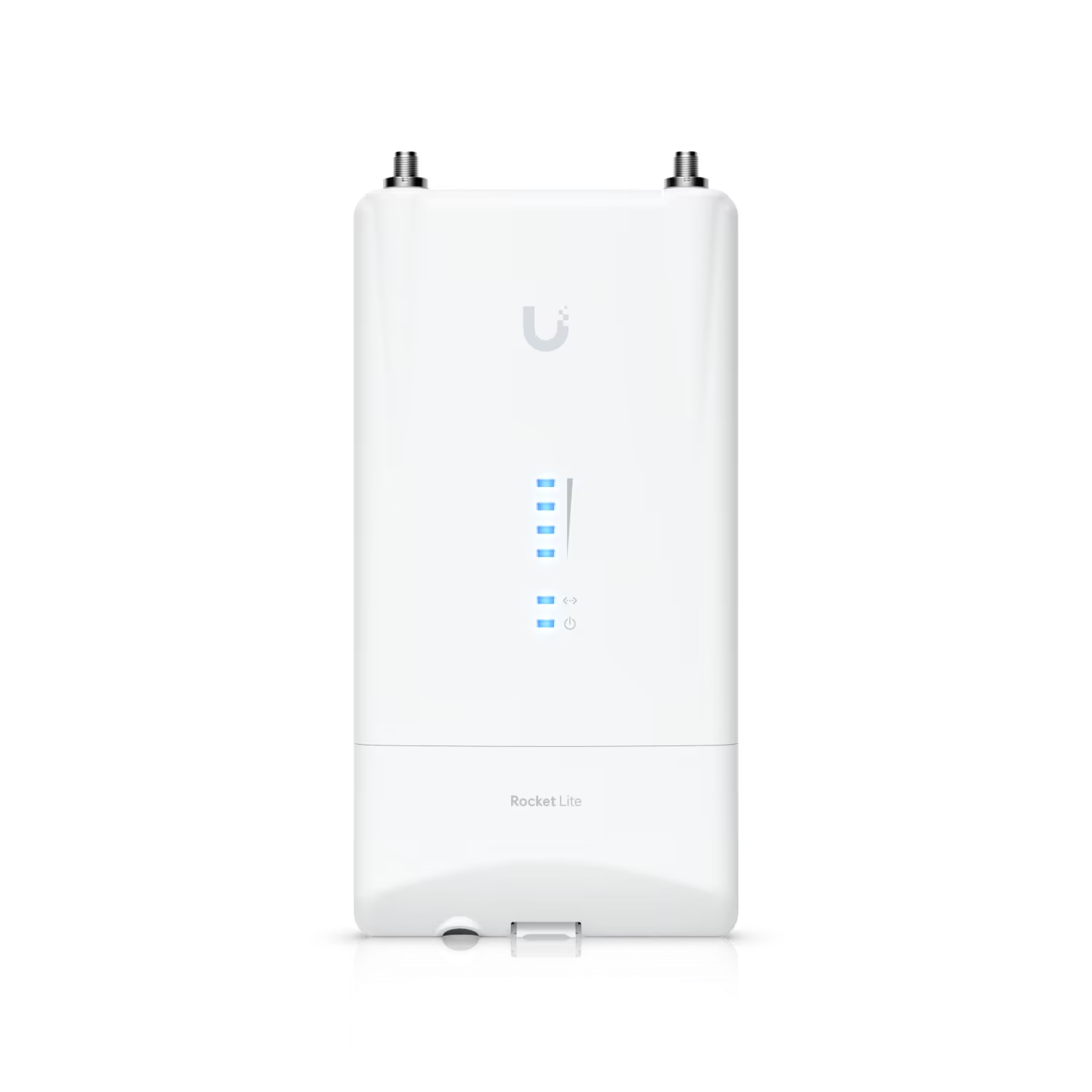

Ubiquiti Networks Rocket AC airMAX ac BaseStation (R5AC-LITE)

The Ubiquiti Networks Rocket AC airMAX ac BaseStation (R5AC-LITE) is a high-performance wireless radio designed for long-range point-to-point and point-to-multipoint deployments. Operating on the 5 GHz spectrum, it delivers reliable, high-throughput connectivity for internet service providers, enterprise networks, and outdoor wireless bridging applications. With airMAX ac technology, a rugged weather-resistant enclosure, and flexible antenna compatibility via dual RP-SMA connectors, the R5AC-LITE ensures stable performance in demanding outdoor environments.

Product Features

airMAX ac Technology

Delivers improved throughput, reduced latency, and enhanced scalability for high-density wireless deployments.

Long-Range Wireless Performance

Operates across 5150 to 5875 MHz, providing reliable connectivity for long-distance point-to-point and point-to-multipoint links.

Flexible Antenna Compatibility

Equipped with dual RP-SMA waterproof connectors, allowing integration with a wide range of external antennas for customized coverage.

Durable Outdoor Design

Built with UV-stabilized plastic and designed to withstand harsh environments, including extreme temperatures from -40 to 80°C (-40 to 176°F).

Efficient Power Consumption

Powered via passive PoE with low power consumption of 8.5W, ensuring energy-efficient operation and simplified installation.

Product Specifications

• Dimensions: 162 x 84 x 37 mm (6.4 x 3.3 x 1.5″)
• Weight: 250 g (8.8 oz)
• Enclosure Material: UV-stabilized plastic
• Networking Interface: 1 GbE RJ45 port
• Power Method: Passive PoE 2-pair (4,5+; 7,8 return)
• Power Supply: 24V, 0.5A Gigabit PoE adapter (included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 8.5W
• ESD/EMP Protection: Air/contact ±24 kV
• RF Connectors: 2 RP-SMA (waterproof)
• LED Indicators: Power, LAN, 4 signal strength LEDs
• Shock and Vibration: ETSI300-019-1.4 Standard
• Operating Frequency (Worldwide): 5150–5875 MHz
• Operating Frequency (US/CA Bands):
  • 5150–5250 MHz (U-NII-1)
  • 5250–5350 MHz (U-NII-2A)
  • 5470–5725 MHz (U-NII-2C)
  • 5725–5850 MHz (U-NII-3)
• Ambient Operating Temperature: -40 to 80°C (-40 to 176°F)
• Ambient Operating Humidity: 5–95% non-condensing
• Compliance: NDAA Compliant, CE, FCC, IC certified
