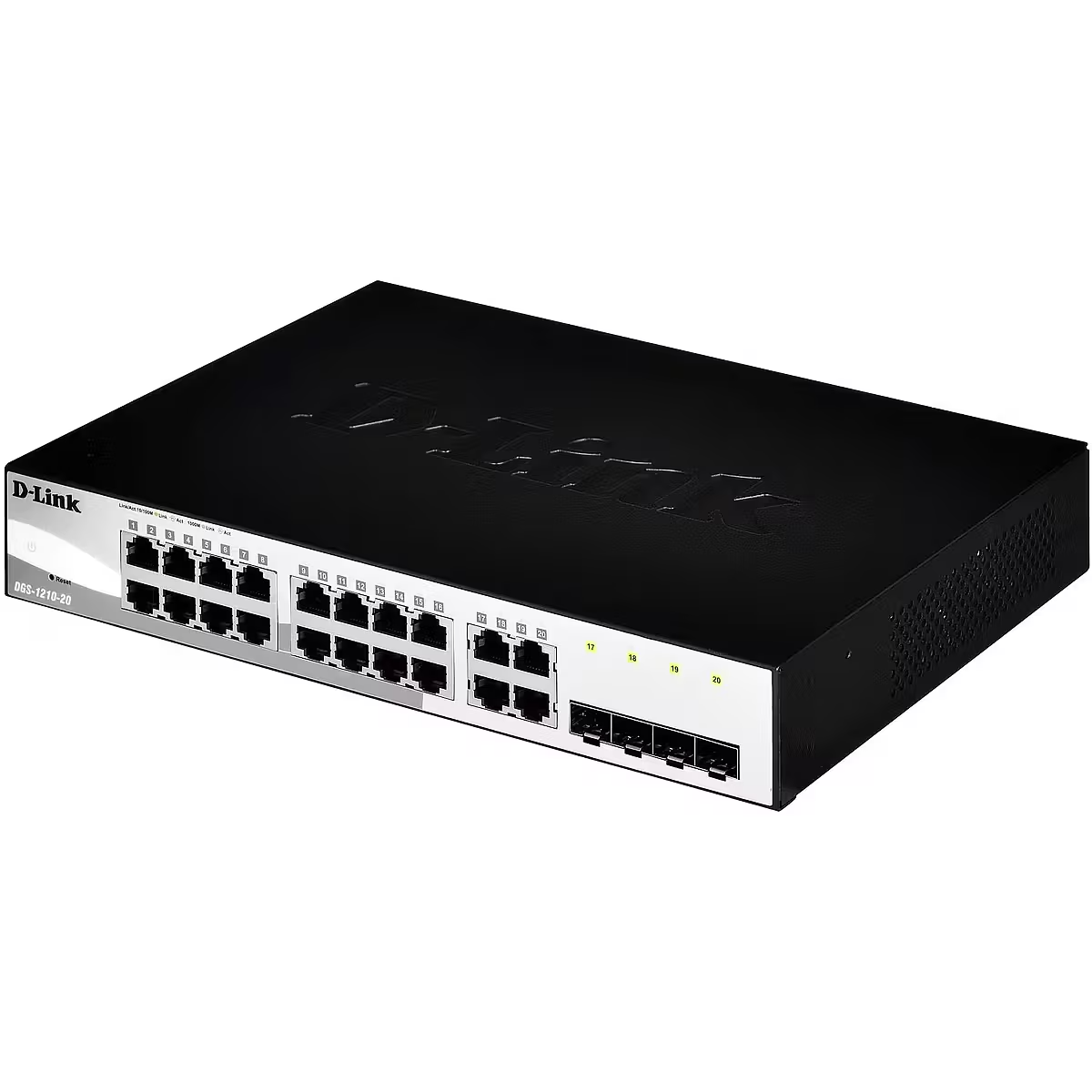

D-Link Smart Managed 20-Port Gigabit Switch with 4 Combo SFP Ports (DGS-1210-20)

The D-Link DGS-1210-20 is a high-performance smart managed switch designed for small to medium-sized business networks. With 16 Gigabit Ethernet ports and 4 combo RJ45/SFP ports, it provides robust connectivity, advanced Layer 2 switching, and intelligent management features. This switch supports both standard and surveillance mode interfaces, PoE capabilities, and static routing, making it ideal for handling voice, video, and data traffic efficiently while simplifying network management and reducing maintenance costs.

Product Features

Gigabit Connectivity

Offers 16 x 10/100/1000BASE-T ports and 4 x Gigabit RJ45/SFP combo ports for high-speed, flexible network connections.

Advanced Layer 2 Switching

Includes full L2 feature support such as IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP), ensuring reliable, scalable, and efficient network performance.

PoE Support

Certain DGS-1210 models support Power-over-Ethernet, enabling simple deployment of IP cameras, VoIP phones, and wireless access points. Administrators can manage PoE functions remotely, including time-based scheduling.

Auto Voice VLAN and Surveillance Mode

Automatically identifies and prioritizes voice and video traffic. Surveillance Mode detects ONVIF-compatible cameras and creates dedicated VLANs, allowing a single switch to handle voice, video, and data without additional hardware.

Optional User Interfaces

Switch offers a choice between standard mode or surveillance mode interfaces, providing flexibility to optimize management for general network or surveillance-focused environments.

Static Routing

Supports L2+ static routing to facilitate communication across VLANs, improving network efficiency and reducing reliance on external routers.

Fanless Design

Ensures quiet operation, making it suitable for office environments.

Product Specifications

• Interfaces: 16 x 10/100/1000BASE-T ports, 4 x Combo 10/100/1000BASE-T/SFP ports
• Switch Capacity: 40 Gbps
• Max Packet Forwarding Rate: 29.8 Mpps
• Power Input: 100 to 240 V AC
• Dimensions: 280 mm x 180 mm x 44 mm
• Weight: 1.75 kg
• Operating Temperature: -5 to 50°C (23 to 122°F)
• Storage Temperature: -20 to 70°C
• Operating Humidity: 0% – 95% RH
• Storage Humidity: 0% – 95% RH
• Operating Altitude: 1500 m
• Max Power Consumption: 13.08 W (100 V), 13.02 W (240 V)
• Maximum Heat Dissipation: 44.62 BTU/hr (100 V), 44.41 BTU/hr (240 V)
• Acoustic Noise: 0 dB
• MTBF: 1,087,100 hours
• CPU Speed: 500 MHz
• Flash Memory Size: 32 MB
• DRAM Size: DDR3 128 MB
• Packet Buffer Size: 4.1 Mbits
• FAN: Fanless
• Standby Power Consumption: 5.47 W (100 V), 5.56 W (240 V)
