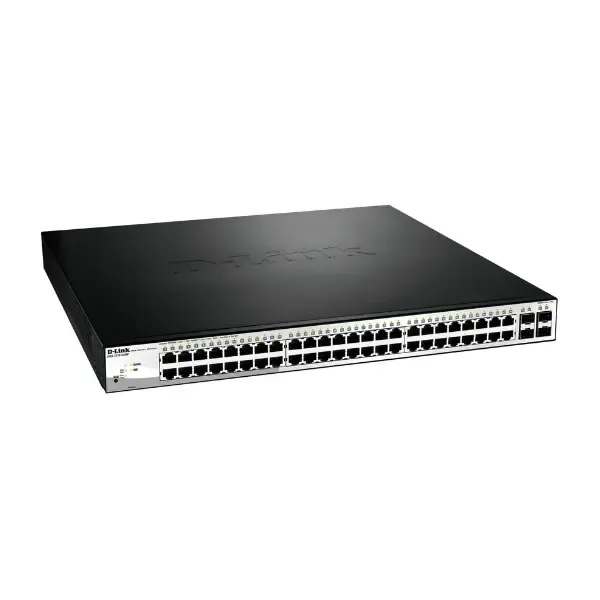

D-Link 52-Port Gigabit Smart Managed Switch non-POE (DGS-1210-52)

The D-Link DGS-1210-52 is a high-capacity smart managed switch designed for medium to large business networks. With 48 Gigabit Ethernet ports and 4 Gigabit SFP combo ports, it delivers reliable, high-speed connectivity and advanced Layer 2 switching features. Supporting both standard and surveillance mode management interfaces, as well as static routing and Auto Voice VLAN, this switch provides an efficient, flexible, and cost-effective solution for handling voice, video, and data traffic while simplifying network management and enhancing security.

Product Features

Extensive Gigabit Connectivity

Includes 48 x 10/100/1000BASE-T ports and 4 x Gigabit GbE/SFP combo ports, allowing for seamless connection of multiple devices and flexible optical uplinks.

Advanced Layer 2 Switching

Equipped with full L2 features such as IGMP snooping, port mirroring, Spanning Tree Protocol (STP), Link Aggregation Control Protocol (LACP), and IEEE 802.3x Flow Control to ensure efficient and stable network performance.

Static Routing

Supports L2+ static routing for communication across VLANs, improving internal network efficiency and allowing the external router to manage only external traffic.

Auto Voice VLAN and Surveillance Mode

Automatically identifies and prioritizes VoIP and video traffic for improved quality of service. Surveillance Mode detects ONVIF-compatible cameras, creating dedicated VLANs to manage voice, video, and data traffic on a single switch without additional hardware.

Comprehensive Security

Includes D-Link Safeguard Engine to protect against traffic flooding and virus attacks. Supports 802.1X port-based authentication via external RADIUS servers and Access Control Lists (ACLs) to enhance network security.

Flexible Management Interfaces

Provides an optional standard mode or surveillance mode web interface, allowing administrators to tailor management to general network operations or surveillance systems.

Cost-Efficient Design

Combines high performance with energy efficiency, offering advanced features and multiple interface types in a scalable, business-friendly solution.

Product Specifications

• Interfaces: 48 x 10/100/1000BASE-T ports, 4 x Gigabit GbE/SFP combo ports
• Switch Capacity: 104 Gbps
• Max Packet Forwarding Rate: 77.4 Mpps
• Power Input: 100 to 240 V AC
• Dimensions: 440 mm x 260 mm x 44 mm
• Weight: 5.0 kg
• Operating Temperature: -5 to 50°C (23 to 122°F)
• Storage Temperature: -20 to 70°C
• Operating Humidity: 0% – 95% RH
• Storage Humidity: 0% – 95% RH
• Operating Altitude: 1500 m
• Max Power Consumption: 37.2 W (100 V), 36.8 W (240 V)
• Maximum Heat Dissipation: 126.9 BTU/hr (100 V), 125.7 BTU/hr (240 V)
• Acoustic Noise: 0 dB (fanless design)
• MTBF: 1,100,000 hours
• CPU Speed: 500 MHz
• Flash Memory Size: 32 MB
• DRAM Size: DDR3 256 MB
• Packet Buffer Size: 4.1 Mbits
• FAN: Fanless
• Standby Power Consumption: 7.5 W (100 V), 7.6 W (240 V)
