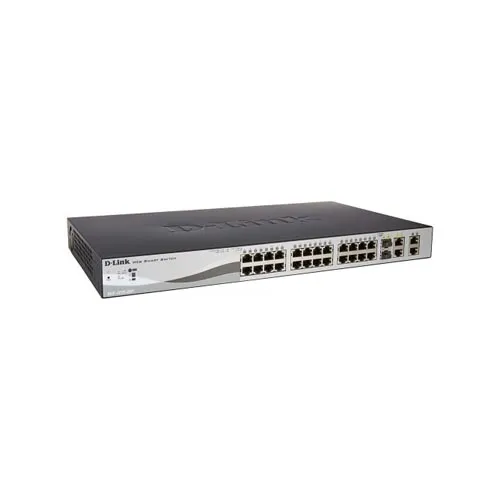

D-link 28-Port Fast Ethernet PoE Switch (DES-1210-28P)

The D-Link DES-1210-28P is a 28-port Web Smart Managed PoE switch designed for small to medium-sized business networks that require reliable power, traffic prioritization, and flexible connectivity options. It combines Fast Ethernet PoE access ports with Gigabit uplinks and SFP combo ports, making it suitable for IP surveillance systems, VoIP deployments, and wireless access point installations. With a robust PoE power budget and advanced Layer 2 management features, it delivers stable performance for converged network environments where both data and power efficiency are essential.

Product Features

High-Density 28-Port Network Connectivity

Provides 24 Fast Ethernet PoE ports, 2 Gigabit copper uplink ports, and 2 combo SFP/RJ-45 ports, offering flexible connectivity for wired devices, fiber uplinks, and network expansion.

Advanced PoE and PoE+ Support

Supports IEEE 802.3af and 802.3at standards with a total PoE budget of up to 193W, delivering up to 30W per port for powering IP cameras, VoIP phones, and wireless access points.

Intelligent Traffic Prioritization

Includes Auto Surveillance VLAN and Auto Voice VLAN to automatically prioritize video and voice traffic, ensuring smooth performance for security and communication systems.

Comprehensive Layer 2 Management

Supports VLAN segmentation, IGMP Snooping, Spanning Tree Protocol (STP), and Link Aggregation to optimize traffic flow and improve network efficiency.

Enhanced Network Security Protection

Features D-Link Safeguard Engine, ARP spoofing prevention, 802.1X authentication, and DHCP screening to protect against unauthorized access and network attacks.

Energy-Efficient Green Technology

Incorporates D-Link Green 3.0 technology that reduces power consumption by adjusting power usage based on cable length, port status, and scheduled operations.

Product Specifications

• Model: DES-1210-28P
• Product Type: 28-Port Web Smart Managed PoE Switch
• Port Configuration:24 x 10/100 Mbps Fast Ethernet PoE ports, 2 x 10/100/1000 Mbps Gigabit uplink ports, 2 x Gigabit combo SFP/RJ-45 ports
• PoE Standard: IEEE 802.3af / IEEE 802.3at (PoE+)
• Total PoE Budget: 193W
• Power per Port: Up to 30W (Ports 1–4), up to 15.4W (Ports 5–24)
• Switching Capacity: 12.8 Gbps
• Forwarding Rate: 9.5 Mpps
• MAC Address Table: 8,000 entries
• Packet Buffer: 512 KB
• VLAN Support: Up to 256 VLAN groups, 4,094 VID support
• IGMP Snooping: Up to 256 groups
• Link Aggregation: Up to 8 groups (8 ports per group)
• Security Features: 802.1X authentication, ARP spoofing prevention, DHCP screening, Safeguard Engine
• Management Interfaces: Web GUI, SmartConsole Utility, Telnet CLI
• Cooling System: Smart fan temperature-controlled cooling
• Power Optimization: Time-based PoE scheduling and port power control
• Form Factor: 1U 19-inch rackmount
• Dimensions: 440 x 210 x 44 mm
• Operating Use Case: SMB networks, IP surveillance systems, VoIP deployments, and enterprise edge networks
