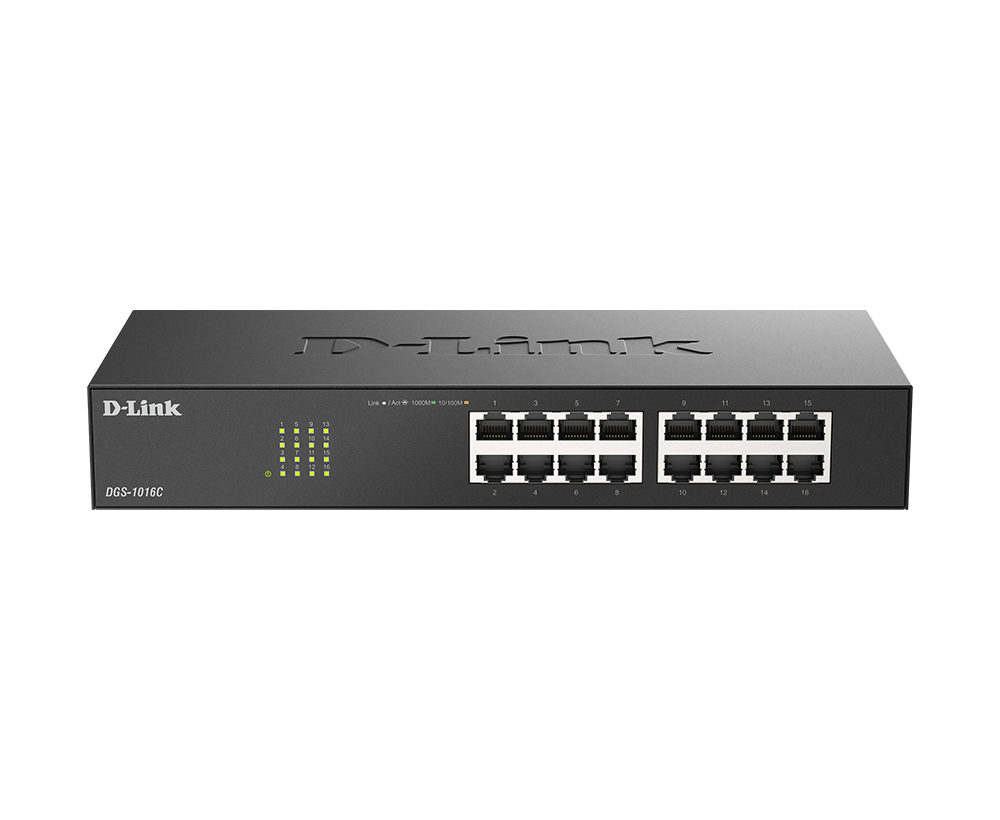

D-Link 16-Port 10/100/1000Base-T Unmanaged Switch (DGS-1016C/B)

The D-Link DGS-1016C/B is a 16-port unmanaged Gigabit Ethernet switch designed to provide high-speed, reliable, and energy-efficient wired networking for homes, small offices, and workgroups. With 16 Gigabit LAN ports and plug-and-play functionality, it enables instant network expansion without configuration. Built for consistent performance and silent operation, it supports full wire-speed data transfer, making it ideal for bandwidth-intensive applications such as file sharing, video streaming, and office connectivity.

Product Features

16-Port Gigabit High-Speed Connectivity

Equipped with 16 x 10/100/1000 Mbps Gigabit Ethernet ports, the switch delivers fast and stable wired connections for multiple devices, ensuring smooth data transfer across the network.

Plug-and-Play Setup

Designed for effortless installation, the switch requires no software or configuration, allowing users to connect devices instantly and expand their network quickly.

Full Wire-Speed Performance

Supports full wire-speed forwarding across all ports, ensuring maximum throughput and consistent performance even under heavy network usage.

Auto-Negotiation and Auto MDI/MDIX

Automatically adjusts speed and duplex settings for connected devices while eliminating the need for crossover cables, simplifying network setup.

Energy-Efficient Ethernet Design

Incorporates IEEE 802.3az Energy Efficient Ethernet (EEE) to reduce power consumption by adjusting energy use based on link status and cable length.

Silent Fanless Operation

Features a fanless design that ensures completely silent operation while maintaining efficient heat dissipation for long-term reliability.

Product Specifications

• Model: DGS-1016C/B
• Product Type: 16-Port Unmanaged Gigabit Switch
• Number of Ports: 16 x 10/100/1000Base-T Gigabit Ethernet ports
• Switching Capacity: 32 Gbps
• Forwarding Rate: Up to 23.808 Mpps
• MAC Address Table: 8,000 entries
• Packet Buffer Size: 256 KB
• Form Factor: Desktop or rackmount capable (compact design)
• Housing: Metal or durable chassis design (model variant dependent)
• Fanless Design: Yes
• Power Input: AC 100–240V
• Max Power Consumption: 9.3 watts
• Standby Power Consumption: 4.48 watts
• Maximum Heat Dissipation: 33.554 BTU/h
• Operating Temperature: 0 to 40 °C
• Storage Temperature: -40 to 70 °C
• Operating Humidity: 10% to 90% RH
• Storage Humidity: 5% to 95% RH
• Jumbo Frame Support: Up to 9,216 bytes
• Flow Control: IEEE 802.3x
• Head-of-Line (HOL) Blocking Prevention: Supported
• Energy Efficiency Features: Link status-based and cable length-based power saving
• Compliance: RoHS compliant
• MTBF: 208,124 hours
