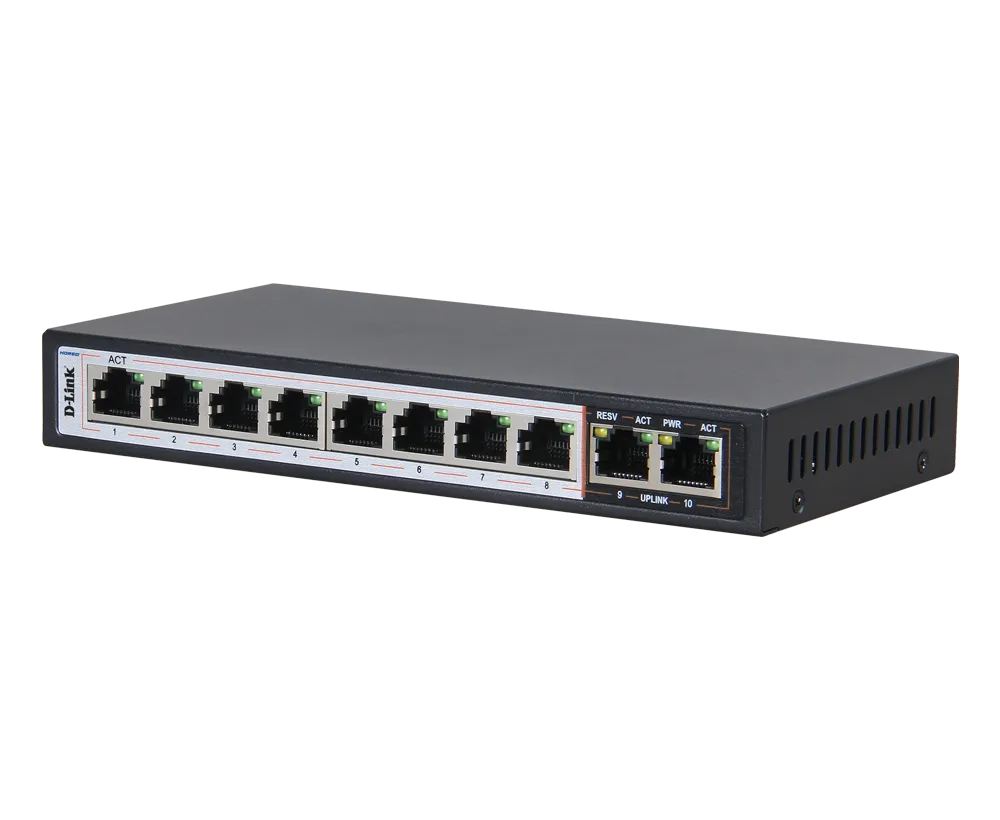

D-Link 10-Port Long Range PoE Switch (DES-F1010P-E/B)

The D-Link DES-F1010P-E/B is a 10-port unmanaged long-range PoE switch designed for surveillance and small business networking applications. It features 8 PoE-enabled Fast Ethernet ports and 2 uplink ports, allowing both data and power to be delivered through a single Ethernet cable. With support for extended transmission distances up to 250 meters, it is ideal for IP camera deployments and wireless access points in locations where power outlets are limited. Its plug-and-play design ensures quick installation without configuration, making it suitable for efficient and scalable network expansion.

Product Features

Long Range PoE Transmission up to 250m

Supports extended data and power transmission up to 250 meters, making it ideal for CCTV surveillance systems and remote device installations using Cat5e or Cat6 cables.

8 PoE-Enabled Fast Ethernet Ports

Provides 8 IEEE 802.3af/at PoE ports that deliver both power and data to connected devices such as IP cameras, VoIP phones, and wireless access points.

Dual Uplink Ports for Network Expansion

Includes 2 uplink 10/100 Mbps ports for easy connection to core networks, NVRs, or routers, ensuring flexible system integration.

High PoE Power Budget

Offers a total PoE power budget of up to 120W, allowing multiple devices to be powered simultaneously without additional adapters.

Plug-and-Play Installation

Requires no configuration, enabling fast deployment and immediate connectivity for surveillance and office networking environments.

Built-in Surge Protection

Integrated 6KV lightning protection helps safeguard connected devices from electrical surges and unstable power conditions.

Product Specifications

• Model: DES-F1010P-E/B
• Product Type: 10-Port Unmanaged Long Range PoE Switch
• Number of Ports: 8 x 10/100 Mbps PoE ports, 2 x 10/100 Mbps uplink ports
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• Total PoE Power Budget: Up to 120W
• Power per Port: Up to 15W per PoE port
• Transmission Distance: Up to 250 meters (long range mode)
• Switching Type: Store-and-forward switching
• Flow Control: IEEE 802.3x flow control supported
• Cable Support: Cat5e / Cat6 Ethernet cables
• Surge Protection: 6KV lightning protection
• Operating Temperature: 0 to 40 °C
• Installation Type: Desktop or wall-mount capable design
• Management Type: Unmanaged (plug-and-play)
• Use Case: IP surveillance systems, wireless AP deployment, VoIP networks, small office networks
