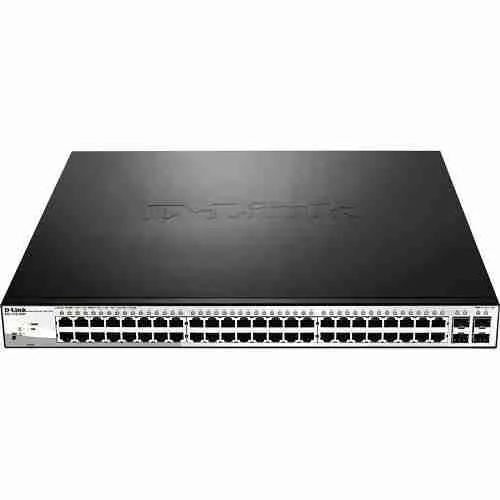

D-Link 48-Port Gigabit PoE+ Web Smart Managed Switch with 4 SFP Ports (DGS-1210-52MP)

The D-Link DGS-1210-52MP is a 48-Port Gigabit PoE+ Web Smart Managed Switch designed for medium to large businesses, campuses, and surveillance networks requiring high-density connectivity and intelligent network management. Featuring 48 PoE-enabled 10/100/1000BASE-T ports and 4 Gigabit SFP combo uplinks, the switch delivers up to 370W of PoE power to support IP cameras, VoIP phones, wireless access points, and other powered devices. With advanced Layer 2 switching, L2+ static routing, Auto Voice VLAN, and Surveillance Mode, this switch provides efficient traffic management, enhanced security, and simplified administration in both standard and surveillance network deployments.

Product Features

High-Density PoE+ Connectivity

Provides 48 Gigabit PoE+ ports and 4 Gigabit SFP uplinks, enabling simultaneous high-speed data and power delivery to a large number of network devices.

Intelligent PoE Management

Supports IEEE 802.3af/at standards with a total PoE budget of 370W. Includes time-based PoE scheduling and remote reboot capabilities to manage connected devices efficiently.

Advanced Layer 2 and L2+ Switching

Equipped with IGMP snooping, port mirroring, Spanning Tree Protocol (STP), Link Aggregation Control Protocol (LACP), IEEE 802.3x flow control, and static routing for optimized network performance and inter-VLAN communication.

Voice and Surveillance Optimization

Supports Auto Voice VLAN for automatic VoIP traffic detection and prioritization. Surveillance Mode detects ONVIF cameras and isolates them in a dedicated VLAN, reducing hardware requirements and simplifying monitoring.

Flexible Management Interface

Features a web-based user interface with optional “standard mode” or “surveillance mode” for easy configuration, monitoring, and PoE management from anywhere on the network.

Comprehensive Security

Includes D-Link Safeguard Engine for protection against traffic flooding and virus attacks, 802.1X port-based authentication via RADIUS servers, and Access Control List (ACL) support to secure the internal network.

Cost-Efficient and Scalable Design

Offers a range of PoE and uplink options with advanced L2 features, providing a flexible, reliable, and cost-effective solution for expanding business or surveillance networks.

Product Specifications

• 48 x 10/100/1000 Mbps PoE+ ports
• 4 x Gigabit RJ45/SFP combo uplink ports
• PoE standard: IEEE 802.3af/at
• PoE budget: 370W
• Layer 2 features: IGMP snooping, port mirroring, STP, LACP, IEEE 802.3x flow control
• L2+ features: Static routing, inter-VLAN routing
• VLAN support: Auto Voice VLAN, Surveillance Mode VLAN
• Security: Safeguard Engine, 802.1X port-based authentication, Access Control Lists (ACL)
• Management: Web UI with optional Standard or Surveillance Mode
• Switching capacity: High-speed Gigabit switching with non-blocking architecture
• Form factor: Rackmountable
• Housing: Metal casing
• Fanless design or low-noise smart fan (depending on variant)
• Designed for SMB, campus, and high-density IP surveillance networks
