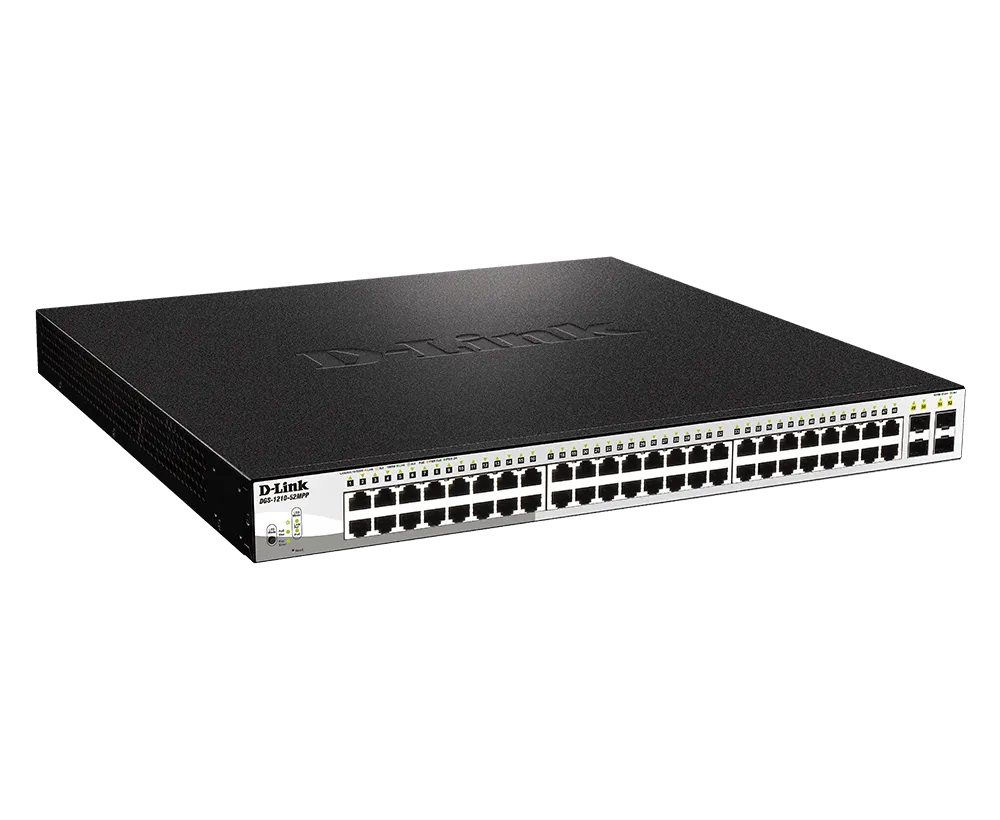

D-Link 52-Port Gigabit Smart Managed PoE Switch (DGS-1210-52MPP)

The D-Link DGS-1210-52MPP is a high-performance 52-port Gigabit Smart Managed PoE switch designed for medium to large business networks that require scalable power, advanced Layer 2+ features, and flexible fiber connectivity. It delivers 48 Gigabit PoE ports and 4 SFP uplink ports, making it ideal for IP surveillance systems, VoIP deployments, wireless access points, and enterprise network expansion. With a large PoE budget and intelligent management options, it provides a cost-efficient and reliable solution for converged network environments that demand both performance and control.

Product Features

High-Density 52-Port Gigabit Connectivity

Equipped with 48 x 10/100/1000BASE-T PoE ports and 4 Gigabit SFP ports, this switch supports large-scale network deployments with both copper and fiber connectivity options for maximum flexibility.

High-Power PoE Budget for Enterprise Devices

Provides a total PoE power budget of up to 740W, enabling support for multiple high-power devices such as IP cameras, VoIP phones, and wireless access points simultaneously.

Advanced Layer 2+ Switching and Static Routing

Includes Layer 2+ capabilities with static routing support, improving traffic management, network segmentation, and overall performance efficiency in complex network environments.

Dual Management Modes for Flexible Operation

Offers both standard mode and surveillance mode interfaces, allowing administrators to optimize configuration based on general networking or IP surveillance requirements.

Intelligent PoE Control and Scheduling

Supports remote PoE management, including port-level reboot and time-based PoE scheduling, allowing administrators to control power delivery efficiently and reduce operational costs.

Enhanced Security and Traffic Control

Includes advanced Layer 2 security features such as VLAN segmentation, access control, and traffic prioritization to protect network integrity and ensure stable performance.

Product Specifications

• Model: DGS-1210-52MPP
• Product Type: 52-Port Smart Managed Gigabit PoE Switch
• Port Configuration:48 x 10/100/1000BASE-T PoE ports, 4 x Gigabit SFP uplink ports
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• Total PoE Budget: 740W
• Switching Capacity: 104 Gbps
• Maximum Packet Forwarding Rate: 77.4 Mpps
• CPU: 400 MHz
• DRAM: 256 MB
• Flash Memory: 32 MB
• Packet Buffer Size: 3.0 MB
• MAC Address Table: (enterprise class, large-scale support)
• Management Modes: Standard mode, Surveillance mode
• Smart Features: VLAN, QoS, IGMP snooping, static routing (Layer 2+)
• Power Input: 100–240V AC
• Maximum Power Consumption: 967.5W (PoE active)
• Standby Power Consumption: 34.8W (100V), 33.1W (240V)
• Cooling System: Smart fan with automatic speed control
• Maximum Heat Dissipation: 3,301.08 BTU/hr
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% RH
• Storage Humidity: 0% to 95% RH
• Operating Altitude: Up to 1500 m
• MTBF: 350,728 hours
• Form Factor: 1U rackmount (440 x 430 x 44 mm)
• Weight: 6.52 kg
