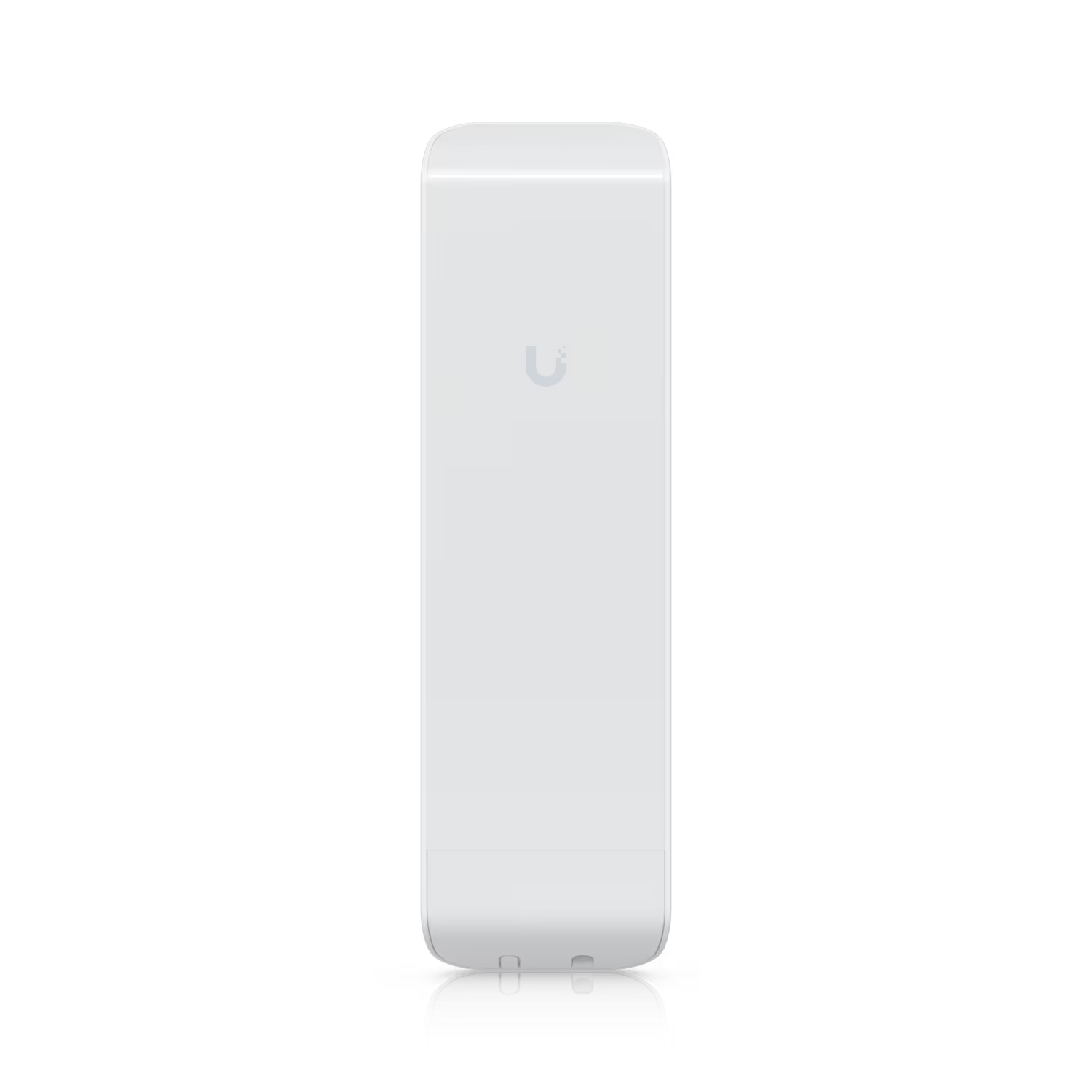

Ubiquiti airMAX NanoStation M2 (NSM2)

The Ubiquiti airMAX NanoStation M2 (NSM2) is a compact and high-performance outdoor wireless CPE designed for reliable point-to-point and point-to-multipoint connectivity in the 2.4 GHz band. Built with Ubiquiti’s proven airMAX technology, this device delivers stable throughput, extended range, and efficient spectrum utilization, making it ideal for ISPs, enterprise networks, and remote connectivity deployments. Its rugged, UV-stabilized enclosure and easy pole-mount design ensure dependable operation in harsh outdoor environments.

Product Features

High-Performance 2.4 GHz Wireless Connectivity

Operates within the 2.4 GHz frequency band, providing dependable wireless links with optimized performance for both short and medium-range deployments.

Integrated Dual Ethernet Ports

Equipped with two 10/100 MbE RJ45 ports, allowing seamless network integration and flexibility for bridging or secondary device connectivity.

Efficient Passive PoE Power Design

Uses passive PoE with a 24V adapter included, enabling simplified installation with fewer cables and support for long-distance deployments.

Durable Outdoor Construction

Built with UV-stabilized plastic and designed to withstand extreme temperatures and environmental conditions, ensuring long-term outdoor reliability.

Compact and Lightweight Form Factor

Slim, lightweight design allows for quick and easy installation on poles, reducing deployment time and infrastructure complexity.

Advanced Antenna Performance

Features dual linear polarization with strong gain and optimized beamwidth for improved signal stability and reduced interference.

Product Specifications

• Dimensions: 294 x 31 x 80 mm (11.6 x 1.2 x 3.2 inches)
• Weight: 400 g (14.1 oz)
• Enclosure Material: Outdoor UV-stabilized plastic
• Mounting: Pole-mount (kit included)
• Networking Interface: (2) 10/100 MbE RJ45 ports
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A PoE adapter (included)
• Supported Voltage Range: 22–27V DC
• Maximum Power Consumption: 5.5W
• Operating Temperature: -30 to 75°C (-22 to 167°F)
• Operating Humidity: 5 to 95% non-condensing
• Shock and Vibration: ETSI300-019-1.4
• Certifications: FCC, ICC, CE, RoHS
• NDAA Compliant: Yes
• Frequency Band: 2.4 GHz
• Operating Frequency: 2412–2462 MHz
• Antenna Gain: 10.4–11.2 dBi
• Cross-Polarization Isolation: 23 dB minimum
• Max VSWR: 1.6:1
• Beamwidth: 55° (H-pol) / 53° (V-pol) / 27° (Elevation)
• Polarization: Dual linear
