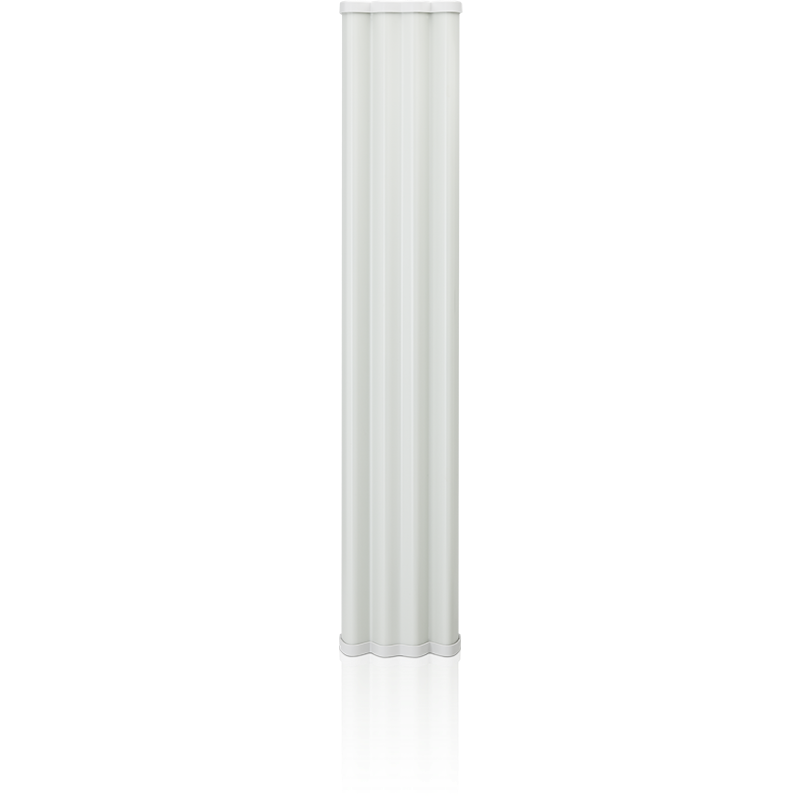

Ubiquiti airMAX High-Gain 19dBi 5GHz Dual-Pol Sector Antenna 120° (AM-5G19-120)

The Ubiquiti airMAX High-Gain 19dBi 5GHz Dual-Pol Sector Antenna 120° (AM-5G19-120) is a carrier-grade sector antenna engineered for high-performance wireless networks operating in the 5 GHz band. Designed to integrate seamlessly with airMAX Rocket radios, this antenna delivers exceptional signal strength, wide coverage, and reliable point-to-multipoint connectivity. With its dual-polarization design, robust construction, and optimized beamwidth, it is ideal for ISPs, enterprise deployments, and long-range outdoor wireless applications requiring consistent throughput and interference mitigation.

Product Features

High-Gain Performance for Long-Range Connectivity

The antenna provides up to 19 dBi gain, ensuring strong signal transmission and reception over extended distances, making it suitable for demanding outdoor deployments and high-density client environments.

Wide 120 Degree Sector Coverage

With a 120 degree horizontal beamwidth, the AM-5G19-120 efficiently covers broad areas, reducing the number of antennas required for sectorized network deployments and improving overall cost efficiency.

Dual-Polarization Technology

Equipped with dual-linear polarization, the antenna supports simultaneous transmission and reception, enhancing throughput and minimizing signal degradation in congested wireless environments.

Optimized for airMAX Integration

Specifically designed for seamless compatibility with Ubiquiti RocketM radios, the antenna ensures plug-and-play integration and maximized airMAX performance.

Durable Outdoor Construction

Built to withstand harsh environmental conditions, the antenna offers wind survivability up to 200 km/h and robust mechanical stability for long-term outdoor use.

Advanced Interference Rejection

With excellent cross-polarization isolation and low VSWR, the antenna minimizes interference and maintains signal clarity for stable wireless links.

Product Specifications

• Model: AM-5G19-120
• Frequency Range: 5.15 – 5.85 GHz
• Gain: 18.6 – 19.1 dBi
• HPOL Beamwidth: 123 degrees (6 dB)
• VPOL Beamwidth: 123 degrees (6 dB)
• Electrical Beamwidth: 4 degrees
• Electrical Downtilt: 2 degrees
• Max VSWR: 1.5:1
• Polarization: Dual-Linear
• Cross-Pol Isolation: 28 dB minimum
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 89 N at 160 km/h
• Dimensions: 700 x 135 x 73 mm
• Weight: 5.9 kg
• Mounting: Universal Pole Mount, RocketM Bracket, Weatherproof RF Jumpers Included
• ETSI Specification: EN 302 326 DN2
• NDAA Compliant: Yes
