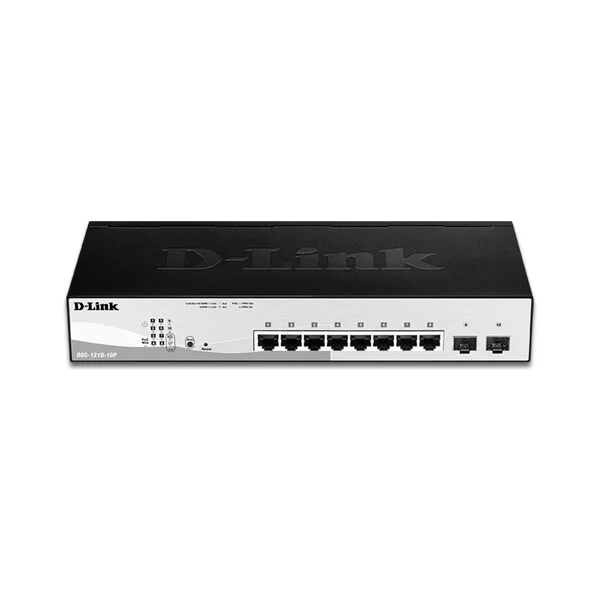

D-Link 8-Port Gigabit PoE+ Smart Managed Switch with 2 SFP Ports (DGS-1210-10P)

The D-Link DGS-1210-10P is an 8-Port Gigabit PoE+ Smart Managed Switch designed for small businesses, offices, and surveillance networks requiring reliable power delivery and advanced Layer 2 management. Featuring eight 10/100/1000BASE-T PoE+ ports and two Gigabit SFP uplinks, this switch provides up to 65W of PoE power for IP cameras, VoIP phones, and wireless access points. With intelligent VLANs, surveillance mode, static routing, and a comprehensive suite of security and traffic management features, it offers flexible, efficient, and secure network expansion with simplified administration.

Product Features

Gigabit PoE+ Connectivity

Provides 8 x 10/100/1000 Mbps PoE+ ports with a total PoE budget of 65W and 2 x Gigabit SFP uplink ports for fiber connections, supporting high-speed data and power delivery to network devices.

Advanced L2 and L2+ Switching

Includes IGMP snooping, port mirroring, Spanning Tree Protocol (STP), Link Aggregation Control Protocol (LACP), IEEE 802.3x flow control, and static routing for efficient inter-VLAN communication and optimized network performance.

Voice and Surveillance Optimization

Supports Auto Voice VLAN for automatic VoIP traffic detection and prioritization and Surveillance Mode for detecting ONVIF cameras and placing them in a dedicated VLAN, reducing hardware requirements and simplifying management.

Intelligent PoE Management

Supports IEEE 802.3af/at standards with time-based PoE scheduling and remote PoE reboot for connected devices, ensuring reliable power delivery and management flexibility.

Robust Security Features

Equipped with D-Link Safeguard Engine to prevent traffic flooding and virus attacks, 802.1X port-based authentication through RADIUS servers, and Access Control List (ACL) support to protect internal networks.

Flexible Management Interface

Offers an optional “standard mode” or “surveillance mode” web UI for easy configuration, monitoring, and PoE control from anywhere on the network, including remotely over the Internet.

Silent Fanless Design

The fanless architecture provides quiet operation, making it suitable for office environments, server rooms, or surveillance control centers.

Product Specifications

• 8 x 10/100/1000 Mbps PoE+ ports
• 2 x Gigabit SFP uplink ports
• PoE standard: IEEE 802.3af/at
• PoE budget: 65W
• Switch capacity: 20 Gbps
• Maximum packet forwarding rate: 14.88 Mpps
• Packet buffer size: 4.1 Mbits
• CPU: 500 MHz
• DRAM: DDR3 128 MB
• Flash memory: 32 MB
• Maximum power consumption: 89.1 W (PoE on, 100V), 80.6 W (PoE on, 240V)
• Standby power consumption: 2.5 W
• Maximum heat dissipation: 279.59 BTU/hr (100V), 275.04 BTU/hr (240V)
• Operating temperature: -5°C to 50°C (23°F to 122°F)
• Storage temperature: -20°C to 70°C
• Operating humidity: 0%–95% RH
• Storage humidity: 0%–95% RH
• Operating altitude: up to 1500 m
• Form factor: Desktop and rackmountable
• Housing: Metal casing
• Fanless design: 0 dB acoustic output
• MTBF: 729,258 hours
• Switch type: Smart Managed
• Designed for SMB networks, IP surveillance, VoIP, and wireless deployments
