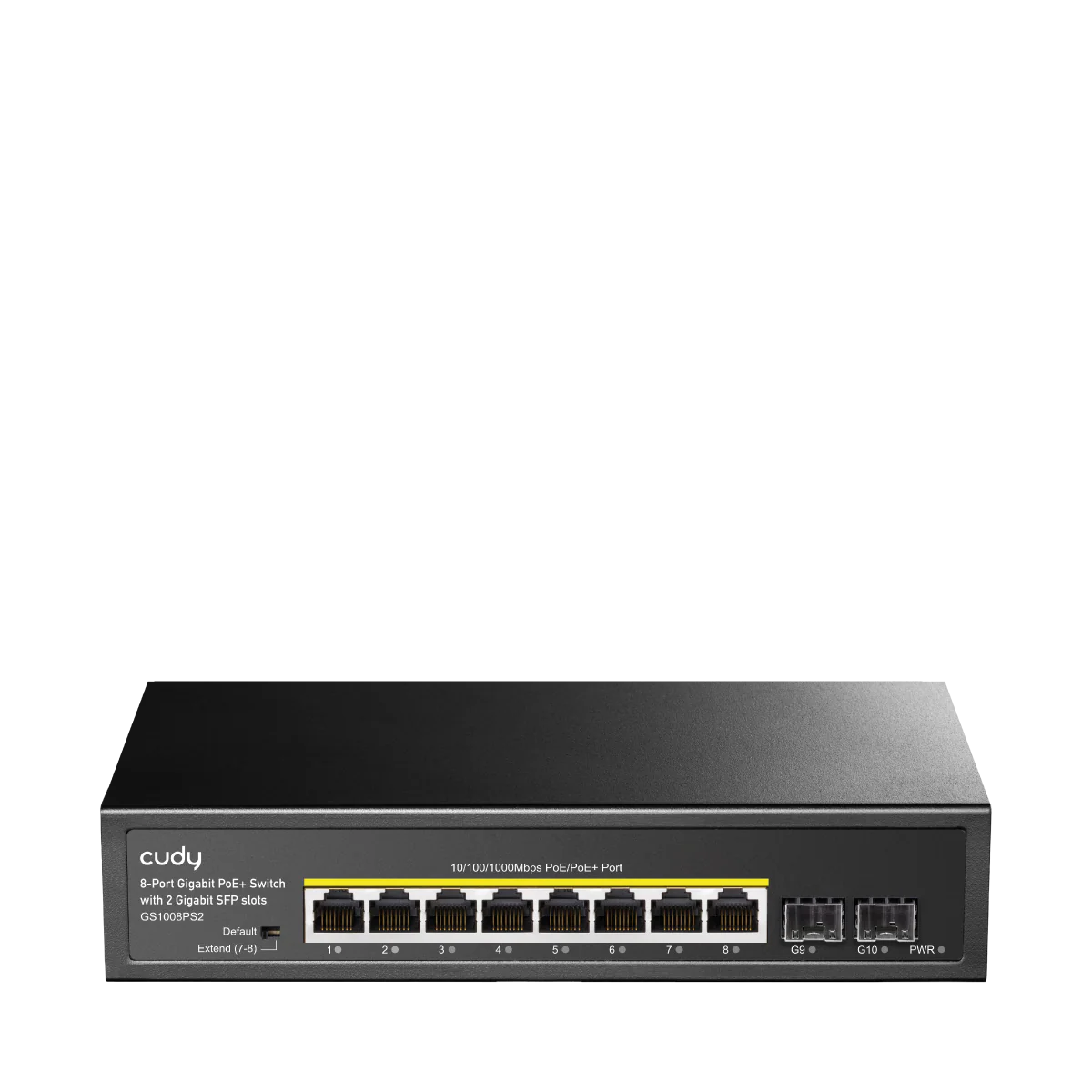

Cudy 8-Port Gigabit PoE+ Switch with 2 SFP Slots (GS1008PS2)

The Cudy GS1008PS2 8-Port Gigabit PoE+ Switch is a robust and scalable networking solution designed to power and connect multiple devices in business and surveillance environments. Featuring eight PoE+ ports, dual SFP uplink slots, and a 120W power budget, this switch delivers reliable high-speed data and power over a single cable. With support for extended transmission up to 250 meters, a silent fanless design, and flexible rack or desktop installation, it is ideal for IP cameras, wireless access points, and VoIP systems requiring stable and efficient network performance.

Product Features

8 Gigabit PoE+ Ports

Equipped with eight Gigabit Ethernet ports supporting IEEE 802.3af/at standards, each port delivers up to 30W of power, enabling seamless connectivity for PoE-enabled devices.

Dual SFP Uplink Slots

Includes two 1.25G SFP slots for fiber uplinks, allowing long-distance, high-speed network expansion and improved backbone connectivity.

120W Total Power Budget

Provides a reliable 120W power supply to support multiple PoE devices simultaneously, ensuring stable power distribution across all connected equipment.

Extend Mode for Long-Distance Transmission

Supports Extend mode on selected ports, enabling data and power transmission up to 250 meters, making it suitable for large-scale surveillance deployments.

Intelligent Watchdog Function

Automatically detects and recovers unresponsive PoE devices under Extend mode, improving network reliability and reducing downtime.

Silent Fanless Operation

Designed with a fanless cooling system for quiet operation, making it ideal for offices and indoor installations where noise reduction is important.

Durable Metal Construction

Built with a sturdy metal casing that enhances durability and ensures efficient heat dissipation for long-term performance.

Flexible Installation Options

Supports both desktop and rack-mounted installations, providing versatility for various networking environments.

Product Specifications

• Model: GS1008PS2 1.0
• Ports: 8 x Gigabit RJ45 PoE+ Ports
• SFP Slots: 2 x 1.25G SFP
• PoE Standard: IEEE 802.3af/at
• Max PoE Power per Port: 30W
• Total PoE Power Budget: 120W
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps
• MAC Address Table: 2048 entries
• Packet Buffer: 2 Mbit
• Jumbo Frame Support: 9 KB
• Transmission Distance:
  • Up to 100 meters (standard mode)
  • Up to 250 meters (Extend mode on Ports 7–8)
• Network Standards:
  • IEEE 802.3i, 802.3u, 802.3ab, 802.3z
  • IEEE 802.3x Flow Control
  • IEEE 802.3af/at PoE
• Modes: Default, Extend
• LED Indicators: Power, Mode, Link/Activity per port
• Power Supply: AC 100–240V, 50/60Hz
• Max Power Consumption (excluding PoE): 6W
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 10% to 95% non-condensing
• Construction: Metal casing
• Installation: Desktop or rack-mount (brackets not included)
• Dimensions: 220 x 161 x 44 mm
• Weight: 1773 g
• Package Contents:
  • GS1008PS2 Switch
  • Power Cord
  • Installation Guide
