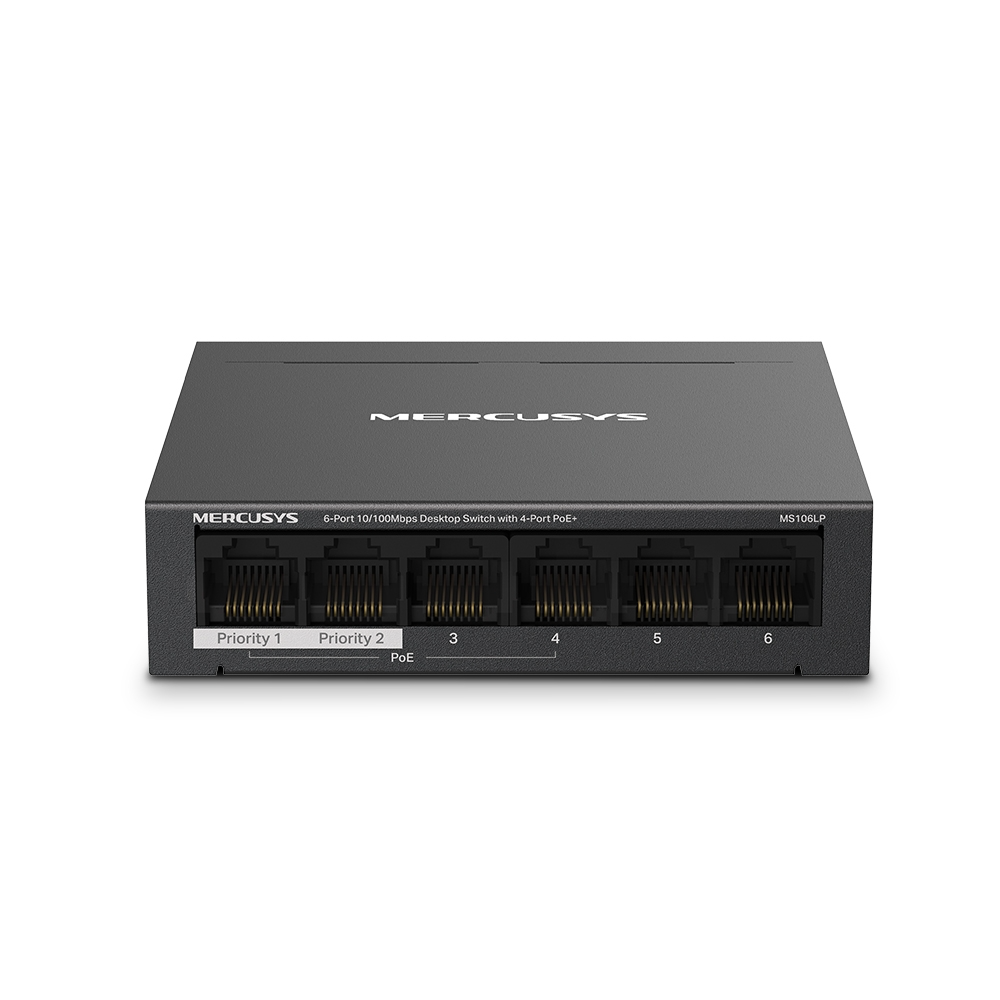

MERCUSYS 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (TL-MS106LP)
The MERCUSYS MS106LP is a reliable 6-port 10/100Mbps desktop switch featuring four PoE+ ports designed to deliver both power and data over a single Ethernet cable. Ideal for IP cameras, wireless access points, VoIP phones, and NVR systems, this switch supports up to 30W per PoE port with a total PoE power budget of 40W. With isolation mode, extend mode for up to 250m PoE transmission, and PoE auto recovery, the MS106LP ensures stable, secure, and long-distance network deployment. Its durable metal casing, plug-and-play functionality, and flexible desktop or wall-mount installation make it a practical solution for small business surveillance and networking setups.
Product Features
6 Fast Ethernet Ports with 4 PoE+ Ports
Equipped with six 10/100Mbps RJ45 ports, including four PoE+ ports that deliver both power and data through a single Ethernet cable.
High-Power PoE+ Support
Provides up to 30W per PoE port and a total PoE power budget of 40W, suitable for IEEE 802.3af/at compliant powered devices.
Extend Mode for Long-Range Transmission
Supports PoE transmission distances of up to 250 meters in Extend Mode, ideal for surveillance camera installations.
Isolation Mode for Enhanced Security
One-click isolation mode separates traffic between specific ports to improve network stability and security.
Dual Uplink Ports
Offers two uplink ports when isolation mode is enabled, allowing one connection to the Internet and another to an NVR system.
PoE Auto Recovery
Automatically detects and reboots unresponsive PoE-powered devices to maintain continuous operation.
Durable Metal Housing
Built with a sturdy metal casing to enhance heat dissipation and ensure long-term reliability.
Plug-and-Play Installation
No configuration required. Simply connect your devices and power on the switch for immediate operation.
Product Specifications
- Standards and Protocols: IEEE 802.3af/at compliant, IEEE 802.3x Flow Control
- Interfaces: 6 × 10/100Mbps RJ45 Ports with Auto-Negotiation and Auto MDI/MDIX
- PoE Ports: Port 1–Port 4 (RJ45)
- PoE Power Budget: 40W total
- External Power Supply: External Power Adapter (Output: 53.5V / 0.81A)
- Installation: Desktop or Wall Mount
- Data Rates: 10/100Mbps at Half Duplex, 20/200Mbps at Full Duplex
- Jumbo Frame: 2KB
- MAC Address Table: 2K
- Dimensions: 99.8 × 98 × 25 mm
- Max Power Consumption: 1.87W (no PD connected), 44.8W (with 40W PD connected)
- Max Heat Dissipation: 6.34 BTU/h (no PD connected), 152.32 BTU/h (with 40W PD connected)
- Package Contents: 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP), Power Adapter, Quick Installation Guide
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% RH non-condensing
- Storage Humidity: 5%~95% RH non-condensing
