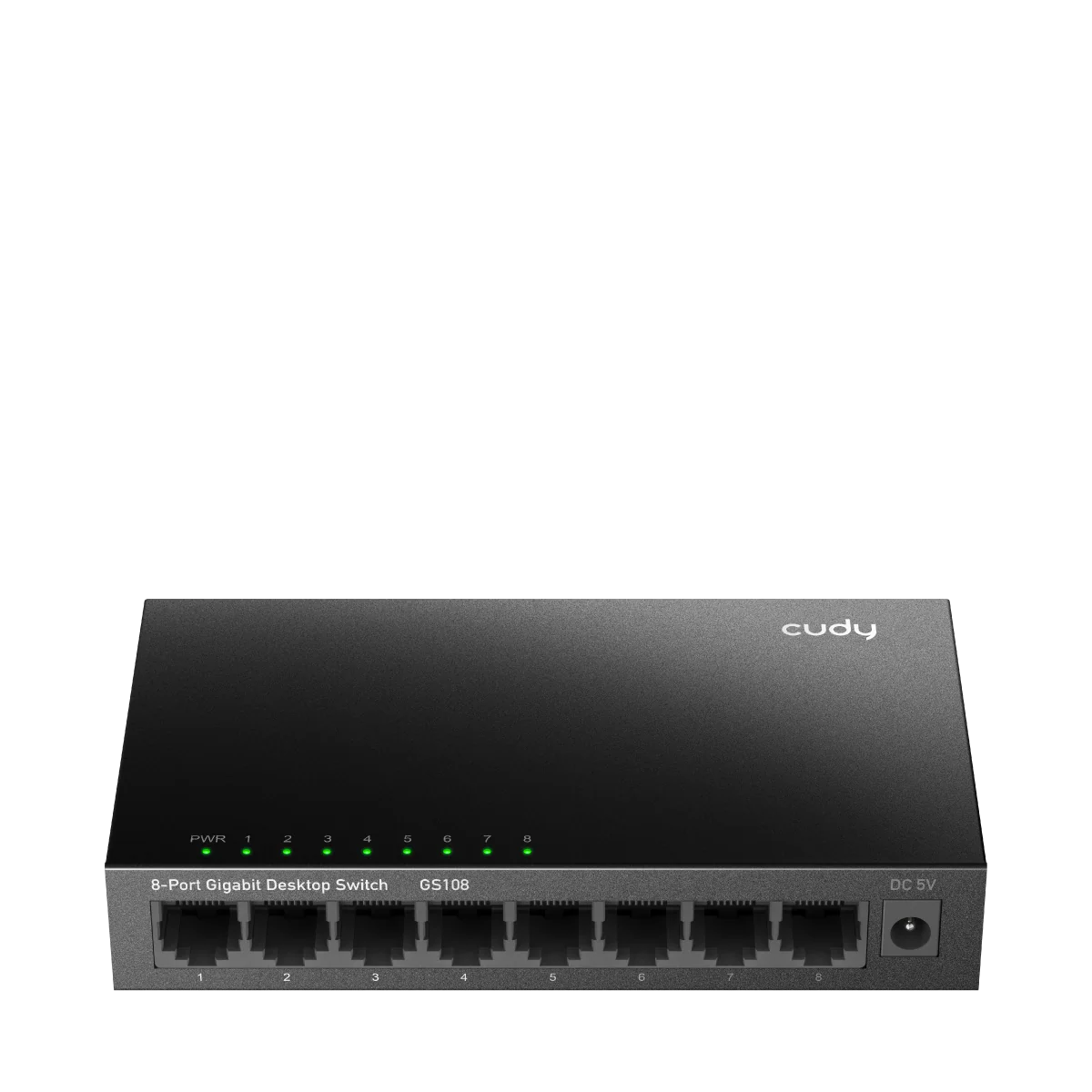

Cudy 8-Port Gigabit Metal Switch (GS108)

The Cudy GS108 8-Port Gigabit Unmanaged Switch is a high-performance networking solution designed for small offices, businesses, and home networks requiring stable and fast wired connectivity. Built with a durable metal casing, it ensures efficient heat dissipation and long-term reliability. With plug-and-play functionality, the switch requires no configuration, making it easy to expand wired networks instantly. It supports long-distance Gigabit transmission, advanced traffic management features, and energy-efficient operation, making it ideal for high-speed data transfer, streaming, and multi-device networking environments.

Product Features

High-Speed 8-Port Gigabit Connectivity

Equipped with 8 Gigabit Ethernet ports, the switch delivers fast and stable 10/100/1000 Mbps connections for multiple devices simultaneously.

Extended Long-Distance Transmission

Supports Gigabit transmission distances of up to 170 meters on Cat 5e or higher cables, improving flexibility in larger network setups.

Plug-and-Play Easy Setup

No configuration is required, allowing users to quickly expand their network by simply connecting devices to available ports.

Durable Metal Housing Design

Built with a strong metal enclosure that enhances durability and improves heat dissipation for stable long-term performance.

Advanced Traffic and Loop Protection

Includes IGMP snooping, loop prevention, and loop detection features to ensure stable and efficient network traffic management.

Energy Efficient Operation

Designed with low power consumption, offering reduced energy usage during both active and idle states without compromising performance.

High Network Performance Capacity

Supports a switching capacity of 16 Gbps and forwarding rate of 11.904 Mpps for smooth and efficient data handling across all ports.

Product Specifications

• Ports: 8 × 10/100/1000 Mbps RJ45 Gigabit ports
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.904 Mpps
• MAC Address Table: 8,192 entries
• Packet Buffer: 4 Mbit
• Jumbo Frame Support: Up to 15 KB
• Transmission Distance: Up to 170 meters (Cat 5e or higher cable at Gigabit speed)
• Power Supply: 5V DC, 0.55A
• Maximum Power Consumption: 2.75W
• Idle Power Consumption: 2.2W
• Power Saving Technology: Basic energy-efficient operation supported
• Network Standards: IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3x
• Security and Management Features: IGMP snooping, loop detection, loop prevention
• Surge Protection: 2kV power and port protection
• ESD Protection: 4kV contact / 8kV air
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Installation Type: Desktop or wall-mountable
• Dimensions: 138 × 78 × 25 mm
• Weight: 211 g
• Housing Material: Metal
• Certifications: IEC/EN compliance for surge and ESD protection standards
• Included Accessories: Power adapter and installation guide
