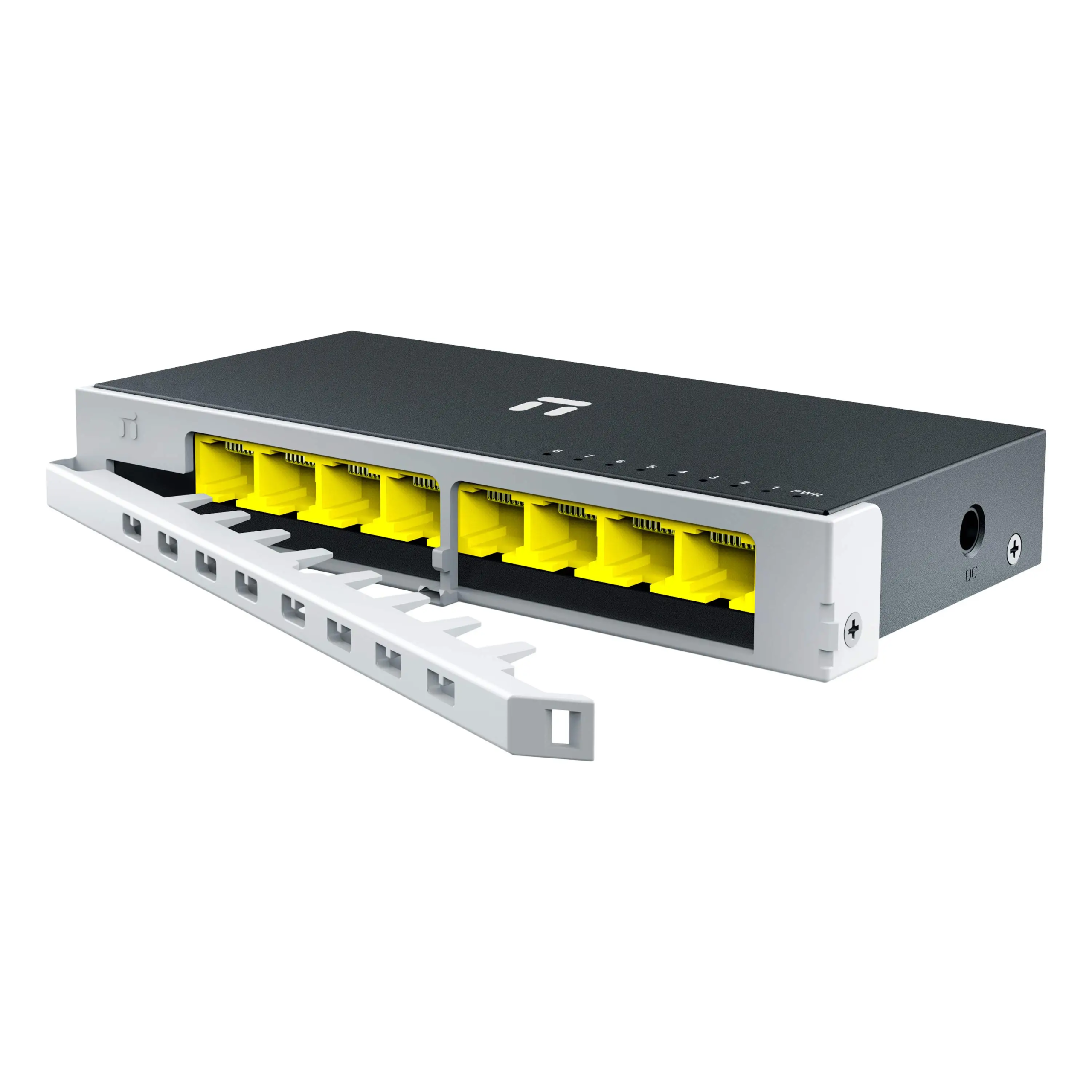

Netis 8 Port Gigabit Ethernet Switch (ST108GD)

The Netis 8 Port Gigabit Ethernet Switch (ST108GD) is a reliable high-speed networking solution designed for home, office, and small business environments that require stable and efficient wired connectivity. Featuring eight 10/100/1000 Mbps adaptive RJ45 ports, this Gigabit switch delivers fast data transfer for multiple devices such as computers, printers, IP cameras, gaming consoles, and network storage systems. Built with a durable high-quality steel housing and equipped with an attached safety lock for secure connections, the ST108GD ensures long-term stability and consistent performance. With plug-and-play functionality, Auto MDI/MDI-X support, and energy-efficient design, this switch provides seamless network expansion without the need for configuration.

Product Features

8 Gigabit Ethernet Ports

The ST108GD comes with eight 10/100/1000 Mbps adaptive RJ45 ports, enabling high-speed wired connections for multiple devices at full Gigabit performance.

High-Speed 16Gbps Switching Capacity

With a 16Gbps backplane bandwidth, the switch ensures smooth and stable data transmission even under heavy network traffic conditions.

Durable Steel Housing

The robust steel casing enhances durability and protects internal components, making the switch suitable for continuous use in demanding environments.

Secure Stable Connections

An integrated safety lock design helps maintain secure cable connections, reducing the risk of accidental disconnections and improving network reliability.

Auto MDI/MDI-X Support

All ports support Auto MDI/MDI-X, eliminating the need for crossover cables and simplifying installation.

Plug and Play Installation

The switch requires no software setup or configuration. Users can connect devices directly and enjoy immediate network access.

Energy Efficient Operation

Built with green energy-saving technology, the ST108GD reduces power consumption while maintaining optimal performance.

LED Status Indicators

Nine sapphire green LED indicators provide clear real-time status monitoring for power and each Ethernet port.

Product Specifications

• Model: ST108GD
• Brand: Netis
• Product Type: 8 Port Gigabit Ethernet Switch
• Interface: 8 × 10/100/1000M RJ45 Adaptive Ports
• Forwarding Rate: 10/100/1000 Mbps
• LED Indicators: PWR, 1–8 RJ45 Ports
• Standard Protocols: IEEE802.3, IEEE802.3u, IEEE802.3x
• Backplane Bandwidth: 16Gbps
• MAC Address Table: 2K
• Operation Mode: Half-Duplex and Full-Duplex
• Auto-Negotiation Modes Supported
• MDI/MDI-X Auto-Adaptation Supported
• Forwarding Mode: Store-and-Forward
• Access Mode: CSMA/CD
• Power Supply: DC 5V/800mA
• Dimensions: 150 × 70 × 22.55 mm
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% RH Non-Condensing
• Storage Temperature: -20°C to 70°C
• Storage Humidity: 5% to 90% RH Non-Condensing
