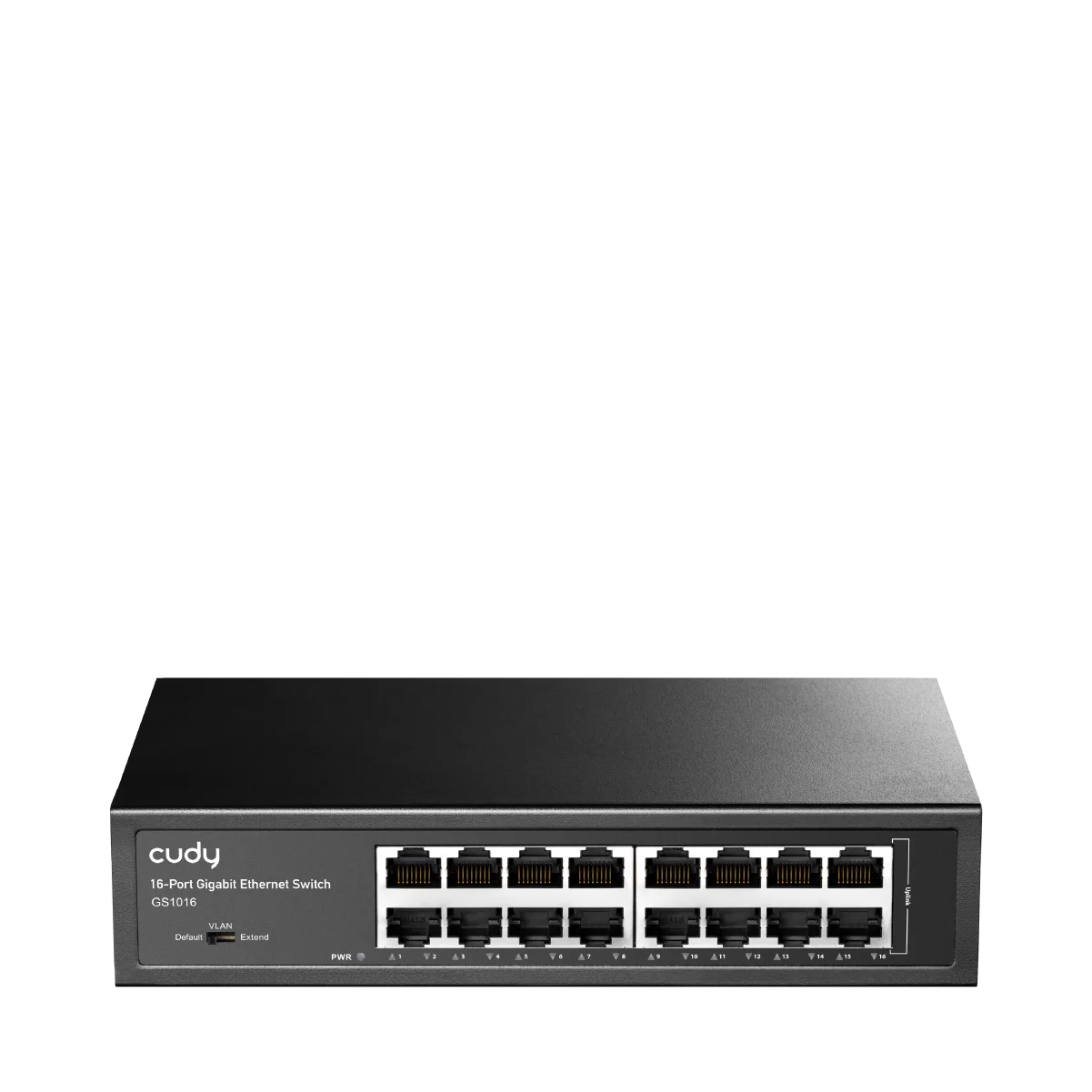

Cudy 16-Port Gigabit Ethernet Metal Switch (GS1016)

The Cudy GS1016 16-Port Gigabit Ethernet Switch is a reliable and high-performance unmanaged networking solution designed for seamless data transmission in home offices, businesses, and enterprise environments. Featuring 16 Gigabit ports, VLAN and Extend modes, and a durable metal casing, this switch ensures efficient network expansion and stable connectivity. Its fanless design enables silent operation, while advanced features like loop detection and QoS optimization enhance overall network performance. Ideal for desktop or rack-mounted setups, the GS1016 delivers dependable and energy-efficient networking for growing infrastructures.

Product Features

16 Gigabit Ethernet Ports

Equipped with 16 high-speed Gigabit RJ45 ports, the switch provides fast and stable wired connections for multiple devices such as computers, printers, and network storage.

Extend Mode for Long-Distance Connectivity

Supports Extend mode for transmission distances up to 250 meters on selected ports, making it suitable for larger deployments and extended network layouts.

VLAN Mode for Network Isolation

VLAN functionality allows port isolation to improve security and reduce broadcast traffic, ensuring better performance across connected devices.

High Switching Performance

With a switching capacity of 32 Gbps and a forwarding rate of 23.808 Mpps, the GS1016 ensures smooth data flow and minimal latency across the network.

Silent Fanless Operation

Designed without a fan, this switch operates silently, making it ideal for office environments and noise-sensitive areas.

Advanced Network Optimization

Includes features such as QoS (802.1p and DSCP), IGMP snooping, and loop detection to enhance traffic management and prevent network disruptions.

Durable Metal Housing

Constructed with a robust metal casing for improved durability and effective heat dissipation, ensuring long-term reliability.

Flexible Installation Options

Supports both desktop placement and rack mounting, providing versatility for various network setups.

Product Specifications

• Model: GS1016 3.0
• Ports: 16 x Gigabit RJ45 Ports
• Port Type: Shielded RJ45
• Switching Capacity: 32 Gbps
• Forwarding Rate: 23.808 Mpps
• MAC Address Table: 8192 entries
• Packet Buffer: 4 Mbit
• Jumbo Frame Support: 15 KB
• Transmission Distance:
  • Up to 100 meters (standard mode)
  • Up to 250 meters (Extend mode on Ports 1–14)
• Modes: Default, VLAN, Extend
• Network Standards:
  • IEEE 802.3i, 802.3u, 802.3ab
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS
• Layer 2 Features:
  • IGMP Snooping
  • Loop Prevention and Detection
  • DSCP QoS
• Power Supply: AC 90–260V, 50/60Hz
• Max Power Consumption: 7.8W
• Idle Power Consumption: 4.5W
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
• Construction: Metal casing
• Installation: Desktop or rack-mount
• Dimensions: 200 x 118 x 44 mm
• Weight: 619 g
• Package Contents:
  • GS1016 Switch
  • Power Cord
  • Installation Guide
  • Mounting Kit
