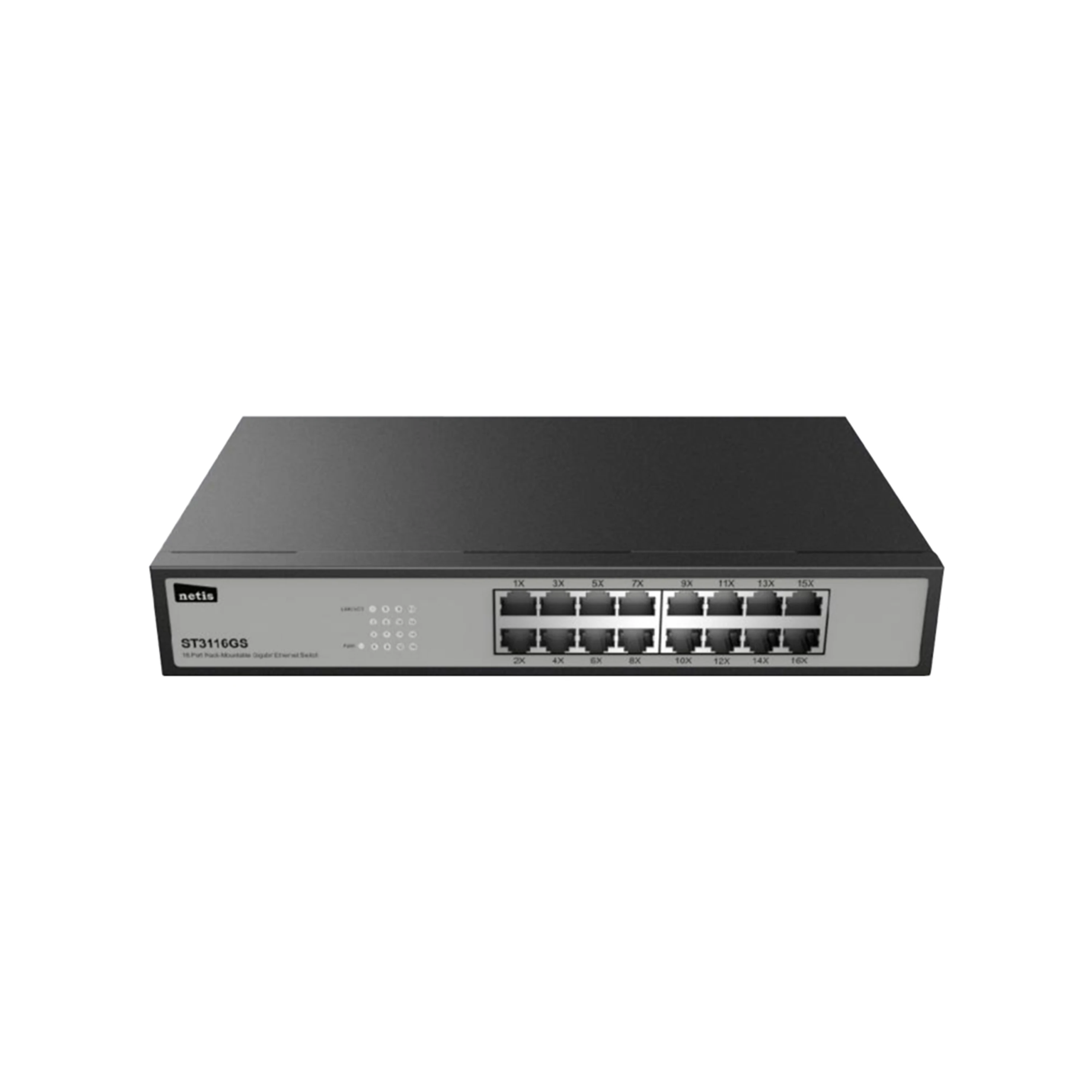

Netis 16 Port Gigabit Ethernet Switch (ST3116GS)

The Netis 16 Port Gigabit Ethernet Switch (ST3116GS) is a high-performance unmanaged network switch designed to deliver fast, stable, and efficient wired connectivity for homes, offices, and enterprise environments. Featuring 16 Gigabit RJ45 ports with auto-negotiation and Auto MDI/MDIX support, it enables seamless high-speed communication between multiple devices such as servers, computers, network storage, and IP-based systems. With a 32Gbps switching capacity, energy-efficient Green Ethernet technology, and a fanless silent design, the ST3116GS ensures reliable performance with low power consumption and quiet operation. Its plug-and-play functionality allows instant deployment without configuration, making it ideal for scalable network expansion.

Product Features

16 Gigabit Ethernet Ports

The switch is equipped with 16 × 10/100/1000 Mbps RJ45 ports, supporting high-speed data transfer for multiple connected devices simultaneously.

High-Speed 32Gbps Switching Capacity

A 32Gbps switching fabric ensures smooth and efficient data transmission, even in high-traffic network environments.

Green Ethernet Energy Saving Technology

Built-in IEEE 802.3az Green Ethernet technology reduces power consumption by adjusting energy usage based on cable length and link status.

Fanless Silent Design

The fanless architecture ensures completely silent operation, making it suitable for offices, classrooms, and home environments.

Auto MDI/MDIX Support

All ports support Auto MDI/MDIX, eliminating the need for crossover cables and simplifying installation.

Plug and Play Setup

No configuration is required. The switch supports instant deployment for quick and easy network expansion.

Advanced MAC Address Management

Supports an 8K MAC address table with automatic learning and aging for efficient network traffic handling.

Flexible Installation Options

Designed for desktop use and can be expanded to rackmount installation for structured network setups.

Product Specifications

• Model: ST3116GS
• Brand: Netis
• Product Type: 16 Port Gigabit Ethernet Switch
• Interface: 16 × 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation, Auto MDI/MDIX)
• Switching Capacity: 32Gbps
• MAC Address Table: 8K
• Built-in Buffer: 2M bits
• Jumbo Frame Support: 9KB
• Standard Protocols: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet
• Access Method: CSMA/CD
• Transmission Method: Store-and-Forward
• Data Transmission Rate: 10/100/1000 Mbps (Half-Duplex), 20/200/2000 Mbps (Full-Duplex)
• Power Supply: 100–240V AC, 50–60Hz
• LED Indicators: Power (PWR), Port Link/Activity (1–16)
• Installation Type: Desktop, expandable to Rackmount
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 5% to 90% RH Non-Condensing
• Storage Humidity: 5% to 90% RH Non-Condensing
• Dimensions: 280 × 173 × 44 mm
• Certifications: FCC, CE, BSMI
