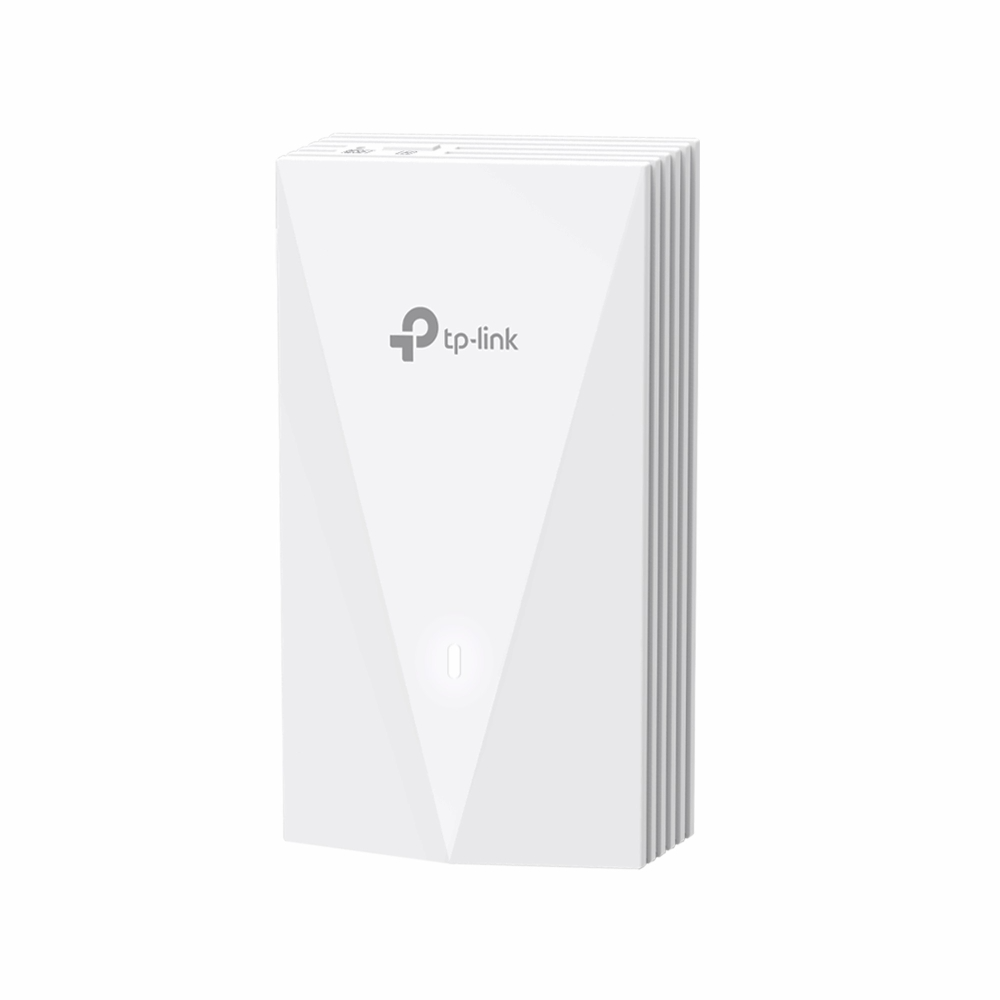

TP-Link AX3000 Wall Plate Wi-Fi 6 Access Point (TL-EAP655-WALL)

The TP-Link AX3000 Wall Plate Wi-Fi 6 Access Point (TL-EAP655-WALL) delivers ultra-fast, high-capacity Wi-Fi 6 connectivity in a sleek wall-plate form factor, perfect for hotels, offices, and residential spaces. Offering simultaneous dual-band speeds of up to 2,976 Mbps, seamless roaming, and advanced MU-MIMO support, it ensures high-performance connections for multiple devices. With multiple Gigabit ports—including PoE passthrough—full Omada SDN integration for cloud management, and robust guest network security, this access point combines elegant design, powerful performance, and centralized control for modern deployments.

Product Features

Blazing-Fast AX3000 Wi-Fi 6 Speeds

Simultaneous 2.4 GHz (574 Mbps) and 5 GHz (2,402 Mbps) bands provide a total Wi-Fi speed of 2,976 Mbps for smooth streaming, online gaming, and multi-device connectivity.

Higher Network Efficiency

MU-MIMO, beamforming, and airtime fairness optimize network performance, delivering data to more devices at once with lower latency.

Complete In-Room Wi-Fi Coverage

Ensures strong signals across rooms, providing corner-to-corner Wi-Fi coverage for residential or commercial spaces.

Multiple Gigabit Ports

Equipped with 1× uplink and 3× downlink Gigabit ports, including one with PoE passthrough to power additional wired devices.

Centralized Cloud Management

Integrates with Omada SDN for remote cloud-based management, centralized monitoring, and seamless network administration through Omada hardware/software controllers or the Omada app.

Secure Guest Network

Supports multiple authentication options, including SMS, Facebook Wi-Fi, and voucher access, paired with robust wireless security protocols.

Easy Installation and PoE Support

Compatible with 86 mm, EU, and US standard junction boxes and supports 802.3af/802.3at PoE for flexible installation without additional wiring.

Product Specifications

• Interface:Uplink: 1× 10/100/1000 Mbps Ethernet Port, Downlink: 3× 10/100/1000 Mbps Ethernet Ports (1 PoE OUT; requires 802.3at PoE+ input)
• Physical Security Lock: No
• Button: Reset, LED
• Power Supply: 802.3af/at PoE
• Max. Power Consumption: EU: 12 W | US: 12.6 W (PoE Out off)
• Dimensions (W × D × H): 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
• Antenna:
  • 2.4 GHz: 2× 3 dBi
  • 5 GHz: 2× 5 dBi
• Mounting: Wall Plate Mounting (Kits included)
• Coverage: 50㎡ (600 ft²)
• Concurrent Clients: 100+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz, 5 GHz
• Signal Rate: 2.4 GHz: up to 574 Mbps | 5 GHz: up to 2,402 Mbps
• Wireless Functions: 16 SSIDs (8 per band), Enable/disable SSID broadcast, Automatic channel assignment, Transmit power control, QoS (WMM), Seamless Roaming, Beamforming, Rate Limit, Load Balance, Airtime Fairness, Band Steering, Reboot Schedule, Wireless Schedule, RADIUS Accounting, MAC Authentication, Wireless Statistics, Static/Dynamic IP
• Wireless Security: Captive Portal Authentication, Access Control, MAC Address Filtering, Wireless Isolation, VLAN, Rogue AP Detection, 802.1X Support, WPA/WPA2/WPA3 Personal & Enterprise
• Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm/5 GHz (bands 1&2), <26 dBm (5 GHz band 3) | FCC: <21 dBm (2.4/5 GHz)
• Management Features: Omada App, Omada Hardware Controller (OC200/OC300), Omada Software Controller, Omada Cloud-Based Controller, Cloud Access, Email Alerts, LED ON/OFF Control, Management MAC Access Control, SNMP v1/v2c/v3, System Logging, SSH, Web-Based Management (HTTP/HTTPS), L3 Management, Multi-site Management, Management VLAN, Zero-Touch Provisioning
• Certifications: FCC, RoHS
• Package Content: TL-EAP655-WALL Access Point, Installation Guide, Mounting Kits
• System Requirements: Microsoft Windows XP/Vista/7/8/10/11, Linux
• Environment:
  • Operating Temperature: 0–40 ℃ (32–104 ℉)
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
