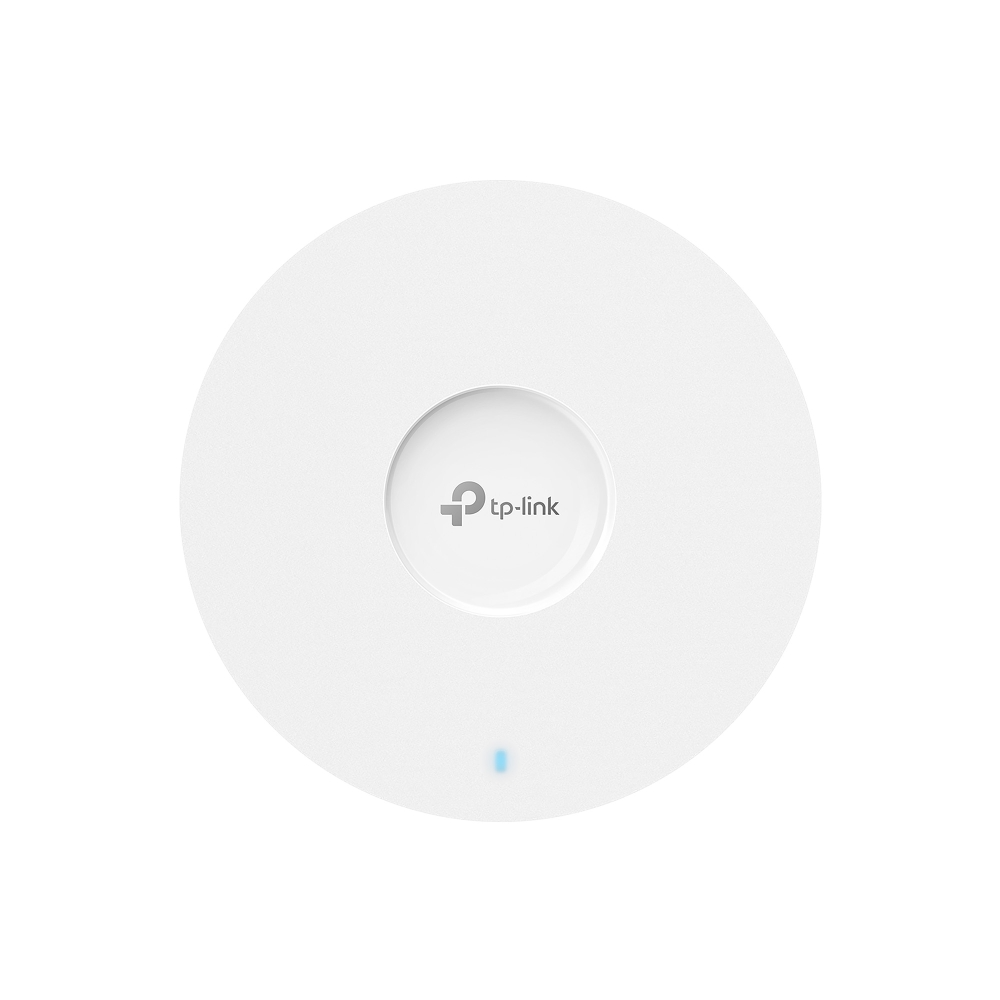

TP-Link AX3000 Ceiling Mount Wi-Fi 6 Access Point (TL-EAP653 UR)

The TP-Link AX3000 Ceiling Mount Wi-Fi 6 Access Point (TL-EAP653 UR) delivers ultra-fast, high-capacity wireless connectivity ideal for business and large-scale environments. With simultaneous dual-band speeds of up to 2976 Mbps and advanced Wi-Fi 6 technologies such as HE160 and 1024-QAM, this access point provides smooth streaming, low-latency gaming, and reliable connections for multiple devices. Its ultra-slim design, Omada SDN integration, and PoE+ support enable flexible deployment, centralized cloud management, and seamless roaming for a professional, high-performance network solution.

Product Features

Ultra-Fast Wi-Fi 6 Speeds

Delivers 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for high-speed wireless performance.

Extended Coverage and High Transmit Power

Multiple internal antennas provide broader wireless coverage and stronger signal strength.

Advanced Wi-Fi 6 Technology

Supports HE160, 1024-QAM, OFDMA, and MU-MIMO for efficient, low-latency network connections.

Omada Mesh and Seamless Roaming

Enables wireless connectivity between access points for extended coverage while maintaining uninterrupted streaming and calls.

PoE+ Powered

Supports 802.3at PoE+ and DC power (adapter not included) for flexible installation.

Ultra-Slim Design

Sleek Φ6.3 in × 1.3 in design allows seamless ceiling integration while maintaining an elegant appearance.

Centralized Management

Integrates with the Omada SDN platform for full network control locally or via cloud, accessible through web UI or Omada app.

Product Specifications

• Interface: 1× Gigabit PoE+ Port
• Button: Reset
• Power Supply: 802.3at PoE, 12V DC / 1.5 A (adapter not included), 48V Passive PoE
• Power Consumption: EU: 14.2 W, US: 15.5 W
• Dimensions: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
• Antenna Type: Internal Omni (2.4 GHz: 2× 5 dBi, 5 GHz: 3× 5 dBi)
• Mounting: Ceiling, Wall, Junction Box (kits included)
• Coverage Area: 185 ㎡ (2000 ft²)
• Concurrent Clients: 250+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz up to 2402 Mbps, 2.4 GHz up to 574 Mbps
• Wireless Features: HE160, 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (up to 16), Band Steering, Seamless Roaming (802.11k/v/r), Omada Mesh, Airtime Fairness, Beamforming, Load Balance, QoS (WMM), Transmit Power Control, Rate Limit, Wireless Scheduling, Reboot Schedule, Wireless Statistics
• Wireless Security: WPA/WPA2/WPA3, 802.1X, Access Control, Captive Portal Authentication, Wireless MAC Filtering, Wireless Isolation, SSID to VLAN Mapping, Rogue AP Detection
• Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz Band1 & Band2), <29 dBm (5 GHz Band3); FCC: <26 dBm (2.4 GHz), <27 dBm (5 GHz)
• Management: Omada App, Centralized Controllers (OC300, OC200, Software or Cloud-Based), Cloud Access, Web-based Management (HTTP/HTTPS), Multi-site Management, L3 Management, Management VLAN, Zero-Touch Provisioning, Email Alerts, LED ON/OFF Control, MAC Access Control, SNMP v1/v2c/v3, SSH, Local/Remote Syslog
• Certification: CE, FCC, RoHS
• Package Contents: EAP653 UR Access Point, Ceiling/Wall Mounting Kit, Installation Guide (DC adapter sold separately)
• System Requirements: Microsoft Windows XP, Vista, 7, 8, 10, 11, Linux
• Environmental Conditions: Operating Temperature 0–40 ℃ (32–104 ℉), Storage Temperature -40–70 ℃ (-40–158 ℉), Operating Humidity 10–90% RH non-condensing, Storage Humidity 5–90% RH non-condensing
