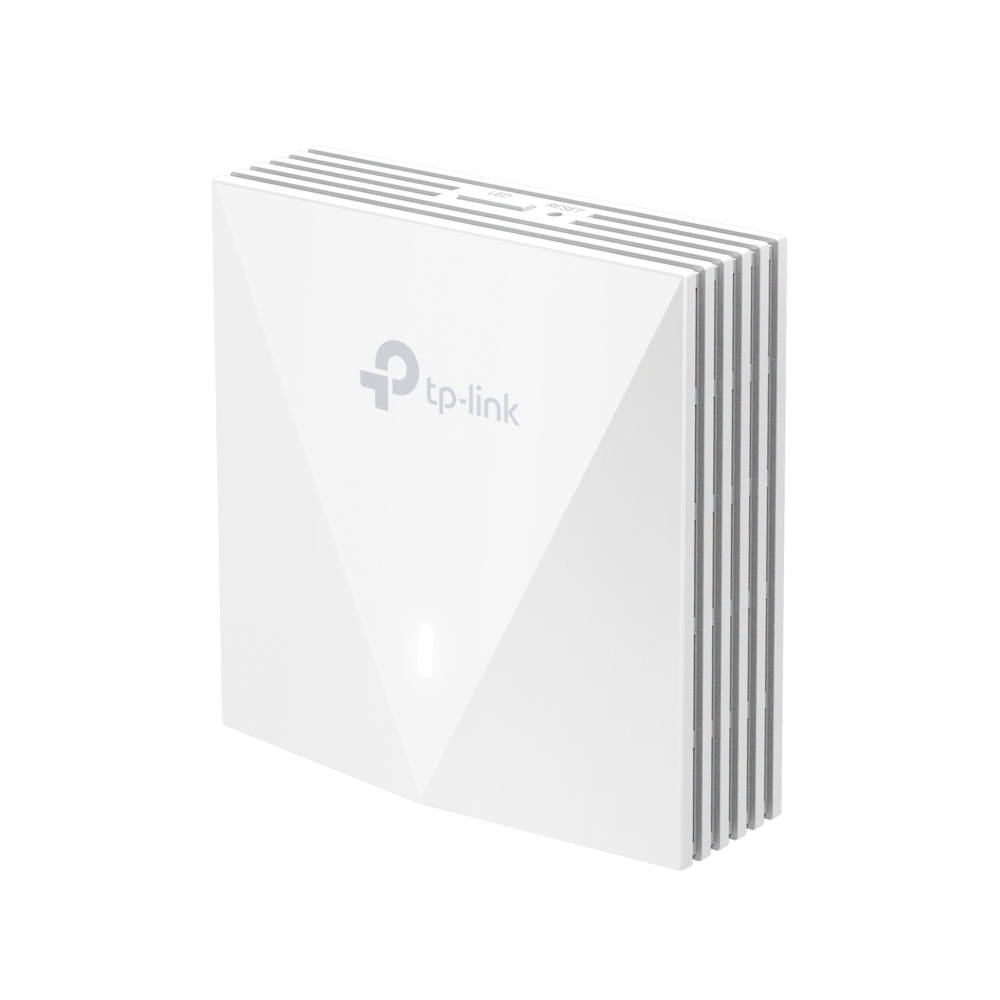

TP-Link AX3000 Wall Plate Wi-Fi 6 Access Point (EAP650-Wall)

The TP-Link AX3000 Wall Plate Wi-Fi 6 Access Point (EAP650-Wall) is a compact, high-performance networking solution designed to deliver fast and reliable in-room Wi-Fi coverage for hotels, offices, and residential spaces. Powered by Wi-Fi 6 technology, it offers combined speeds of up to 2976 Mbps while supporting seamless roaming and centralized cloud management through the Omada SDN platform. Its sleek wall plate design, PoE support, and integrated wired connectivity make it an ideal choice for modern, space-efficient deployments.

Product Features

Ultra-Fast AX3000 Wi-Fi 6 Speeds

Achieve blazing-fast wireless performance with up to 574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band, ensuring smooth streaming, video conferencing, and high-speed data access.

Dedicated In-Room Coverage

Provides reliable Wi-Fi coverage of up to 40 square meters, making it perfect for hotel rooms, dormitories, and office spaces requiring consistent connectivity.

Integrated Wired Connectivity

Includes a downlink Gigabit Ethernet port for connecting wired devices such as IP phones, smart TVs, or desktop computers directly through the access point.

Seamless Omada SDN Integration

Fully integrates with the Omada Software Defined Networking platform, enabling centralized management, monitoring, and configuration across multiple sites.

Easy Installation with PoE Support

Powered via 802.3af PoE, allowing both power and data to be delivered through a single cable for simplified installation without additional wiring.

Seamless Roaming and Mesh Support

Supports Omada Mesh and fast roaming standards (802.11k/v/r), ensuring uninterrupted connectivity as users move between access points.

Advanced Wireless Optimization

Features band steering, beamforming, load balancing, and airtime fairness to enhance network efficiency and deliver a better user experience in busy environments.

Enterprise-Grade Security

Offers robust security with WPA3 support, captive portal authentication, VLAN segmentation, MAC filtering, and rogue access point detection.

Product Specifications

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: Up to 2402 Mbps (5 GHz), up to 574 Mbps (2.4 GHz)
• Coverage Area: Up to 40 square meters
• Concurrent Clients: 100+
• Interface: 1 x Gigabit uplink port, 1 x Gigabit downlink port
• Power Supply: 802.3af PoE
• Power Consumption: 10.5 W
• Antenna: Dual-band internal antennas (2 x 3 dBi for 2.4 GHz, 3 x 5 dBi for 5 GHz)
• Maximum SSIDs: Up to 16 (8 per band)
• Wireless Security: WPA/WPA2/WPA3 Personal and Enterprise, 802.1X support
• Management: Omada Cloud, Hardware Controller (OC200/OC300), Software Controller, Web-based management, SNMP v1/v2c/v3, SSH
• Mounting: Wall plate mounting (kits included)
• Dimensions: 86 x 86 x 42.2 mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Certifications: CE, RoHS
• Package Contents: EAP650-Wall Access Point, Mounting Kits, Installation Guide
