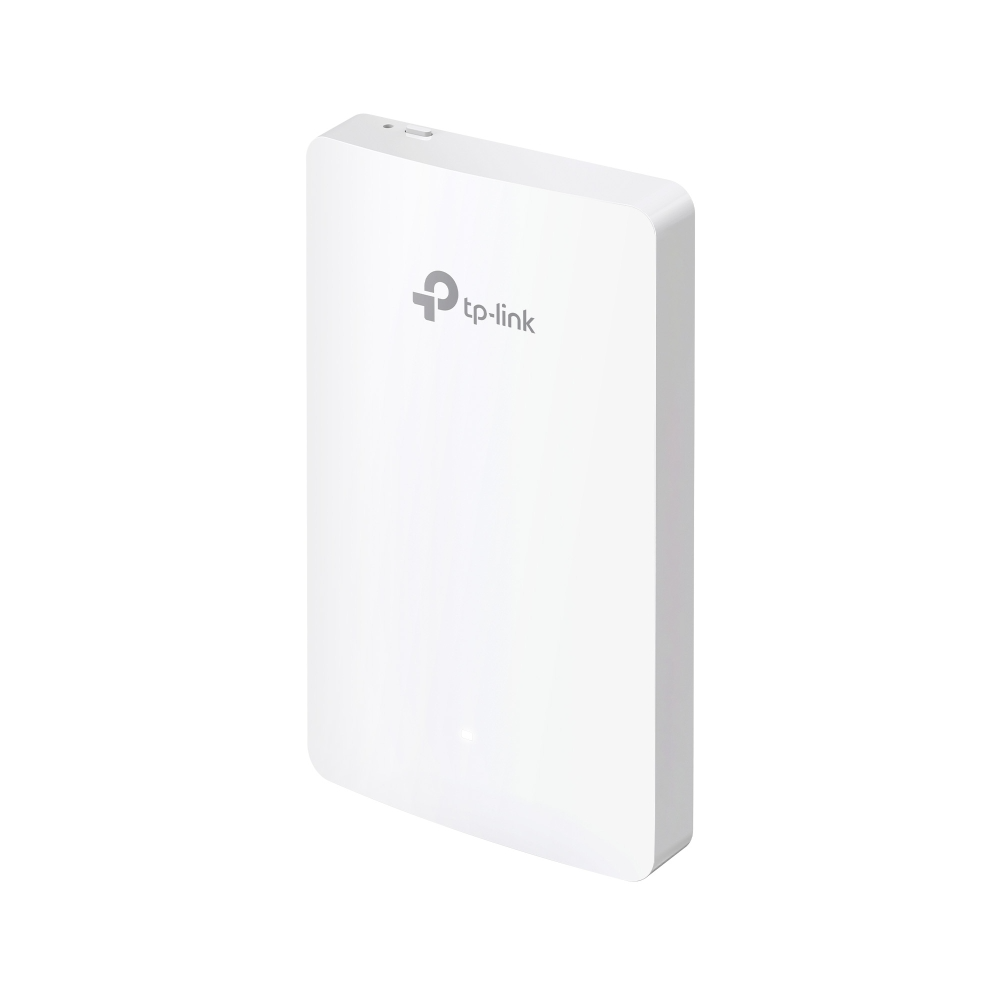

TP-Link AX1800 Wall Plate Wi-Fi 6 Access Point (TL-EAP615-WALL)

The TP-Link AX1800 Wall Plate Wi-Fi 6 Access Point (TL-EAP615-WALL) delivers high-speed, reliable connectivity in a sleek wall-plate design ideal for hotels, offices, and residential environments. With dual-band Wi-Fi speeds of up to 1,775 Mbps, MU-MIMO support, and advanced wireless features, it ensures high-performance connectivity for multiple devices simultaneously. Equipped with four Gigabit Ethernet ports—including PoE passthrough—and full integration with Omada SDN for cloud-based centralized management, this access point combines elegant aesthetics, robust security, and seamless network control for modern deployments.

Product Features

Superior Wi-Fi 6 Speeds

Supports simultaneous 2.4 GHz (574 Mbps) and 5 GHz (1,201 Mbps) bands, delivering a total Wi-Fi speed of 1,775 Mbps for smooth streaming, video conferencing, and multi-device connectivity.

High-Performance Connectivity

MU-MIMO, beamforming, and advanced wireless scheduling ensure lower latency and higher network efficiency across multiple users.

Four Gigabit Ports

Includes 1× uplink and 3× downlink ports, with one downlink port supporting PoE passthrough to power additional wired devices.

Centralized Management

Seamlessly integrates with Omada SDN for cloud access, remote management, and centralized network monitoring through Omada hardware/software controllers or the Omada app.

Secure Guest Network

Provides multiple authentication options including SMS, Facebook Wi-Fi, and voucher access, alongside robust wireless security protocols for safe and controlled guest access.

Easy Installation and PoE Support

Compatible with 86 mm, EU, and US standard junction boxes; supports 802.3af/802.3at PoE for simple, flexible installation without additional wiring.

Product Specifications

• Interface:Uplink: 1× 10/100/1000 Mbps Ethernet Port, Downlink: 3× 10/100/1000 Mbps Ethernet Ports (1 PoE OUT; max 13 W EU / 12 W US)
• Physical Security Lock: Yes
• Button: Reset
• Power Supply: 802.3af/at PoE
• Max. Power Consumption: EU: 10 W | US: 11.5 W (PoE Out off)
• Dimensions (W × D × H): 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
• Antenna:
  • 2.4 GHz: 2× 3 dBi
  • 5 GHz: 2× 4 dBi
• Mounting: Wall Plate Mounting
• Coverage: 50㎡ (600 ft²)
• Concurrent Clients: 120+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz, 5 GHz
• Signal Rate: 2.4 GHz: up to 574 Mbps | 5 GHz: up to 1,201 Mbps
• Wireless Functions: 16 SSIDs (8 per band), Enable/disable SSID broadcast, Automatic channel assignment, Transmit power control, QoS (WMM), Seamless Roaming, Beamforming, MU-MIMO, Rate Limit, Load Balance, Airtime Fairness, Band Steering, Reboot Schedule, Wireless Schedule, RADIUS Accounting, MAC Authentication, Wireless Statistics, Static/Dynamic IP
• Wireless Security: Captive Portal Authentication, Access Control, MAC Address Filtering, Wireless Isolation, VLAN, Rogue AP Detection, 802.1X Support, WPA/WPA2/WPA3 Personal & Enterprise
• Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) | FCC: <21 dBm (2.4/5 GHz)
• Management Features: Omada App, Omada Hardware Controller (OC200/OC300), Omada Software Controller, Cloud Access, Email Alerts, LED ON/OFF Control, Management MAC Access Control, SNMP v1/v2c/v3, System Logging, SSH, Web-Based Management (HTTP/HTTPS), L3 Management, Multi-site Management, Management VLAN, Zero-Touch Provisioning
• Certifications: CE, FCC, RoHS
• Package Content: TL-EAP615-WALL Access Point, Installation Guide, Mounting Kits
• System Requirements: Microsoft Windows XP/Vista/7/8/10
• Environment:
  • Operating Temperature: 0–40 ℃ (32–104 ℉)
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
