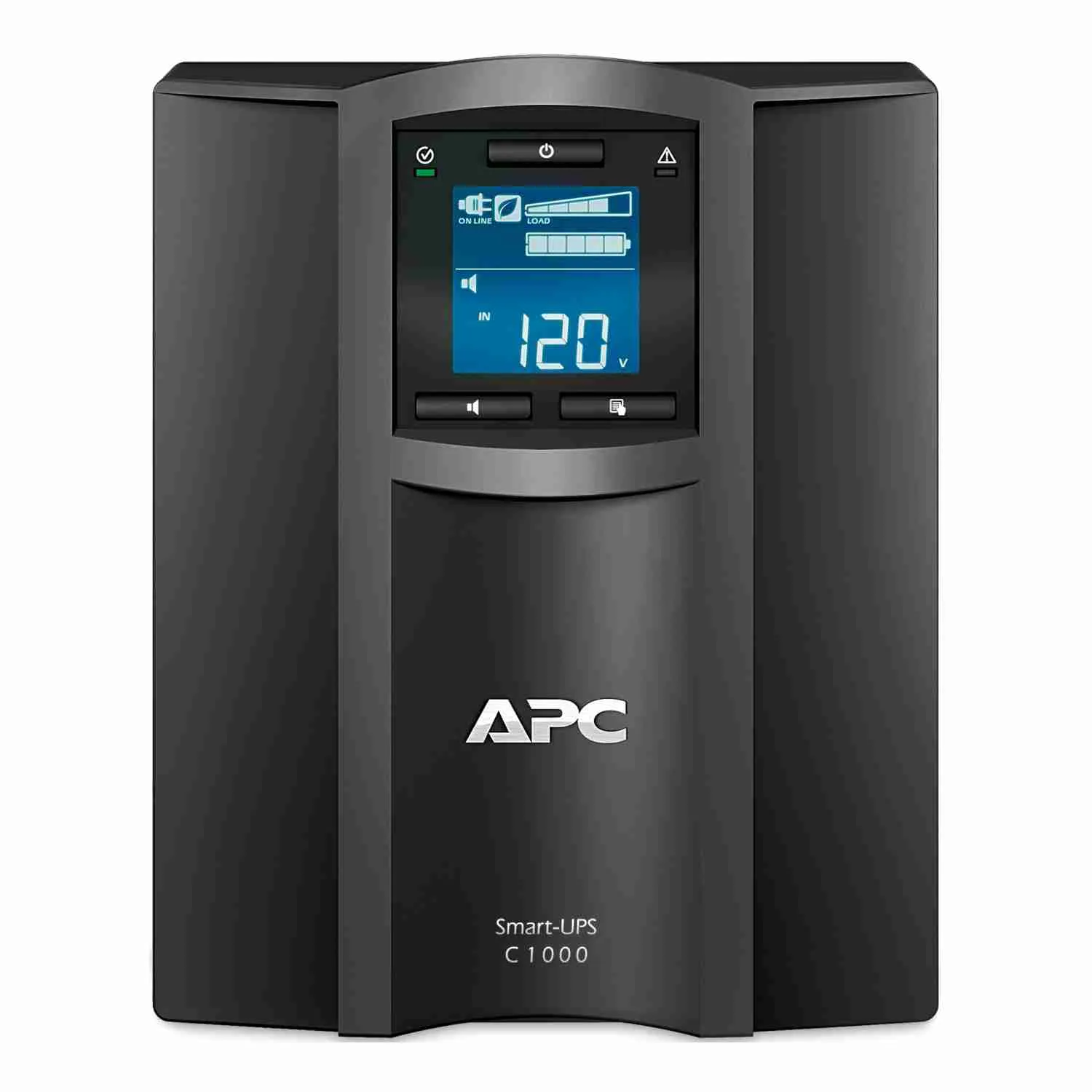

APC Smart-UPS C 1000VA LCD 230V with SmartConnect (SMC1000IC)

The APC Smart-UPS C 1000VA LCD 230V with SmartConnect (SMC1000IC) is a reliable, line-interactive uninterruptible power supply designed to protect critical electronics from power disruptions. With a 1000VA/600W capacity, built-in Automatic Voltage Regulation (AVR), and a pure sine wave output, this UPS is ideal for entry-level servers, networks, retail point-of-sale systems, business VOIP setups, and desktop computers. Its SmartConnect feature enables cloud-based monitoring, remote diagnostics, and firmware updates, while the multifunction LCD provides clear status and control information. Compact and efficient, this UPS ensures uninterrupted performance for small offices and networked devices.

Product Features

Line-Interactive UPS with Pure Sine Wave Output

Provides 1000VA/600W power with pure sine wave output, ensuring reliable operation of sensitive electronics and minimizing the risk of damage during power fluctuations.

Automatic Voltage Regulation (AVR)

Maintains output voltage within user-selectable limits, protecting connected equipment from surges, spikes, and brownouts without using battery power.

SmartConnect Cloud Monitoring

Enables remote monitoring, alerts, firmware updates, and diagnostics via the SmartConnect Ethernet port, keeping IT administrators informed and proactive.

LCD Status and Control Console

The intuitive graphic LCD displays real-time information such as load level, battery status, and input/output voltage for easier management of your UPS.

Seamless Graceful Shutdown

Supports serial and USB connections with PowerChute Business Edition for unattended, safe shutdown of servers and workstations during prolonged outages.

Comprehensive Surge and Noise Protection

Full-time multi-pole noise filtering with 455J surge energy absorption ensures sensitive equipment remains safe from electrical disturbances.

Product Specifications

• UPS Type: Line interactive
• Power Capacity: 1000VA / 600W
• Input Voltage: 220–240 V AC, IEC 320 C14
• Input Voltage Range: 170–300 V adjustable
• Output Voltage: 230 V AC, single-phase
• Output Connection: 8 IEC 60320 C13 outlets
• Waveform Type: Sine wave
• Transfer Time: 6 ms typical, 10 ms maximum
• Battery Type: Lead-acid internal, 24 V
• Battery Capacity: 9 Ah
• Battery Recharge Time: 3 hours
• Battery Replacement: 1 (APCRBC142)
• Control Panel: Multifunction LCD status and control console
• UPS Connectivity: USB, Serial, SmartConnect Ethernet port
• Software Package: SmartConnect software for remote power monitoring
• Surge Energy Rating: 455 J
• Noise Level: 41 dBA
• Dimensions: 439 mm (D) x 171 mm (W) x 219 mm (H)
• Weight: 17.27 kg
• Mounting: Tower (not rack-mountable)
• Operating Temperature: 0–40 °C
• Storage Temperature: -15–45 °C
• Relative Humidity: 0–95%
• Certifications: CE, GOST, VDE, UK PSTI
• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
• Heat Dissipation: 100 Btu/h
• Acoustic Level: 41 dBA
