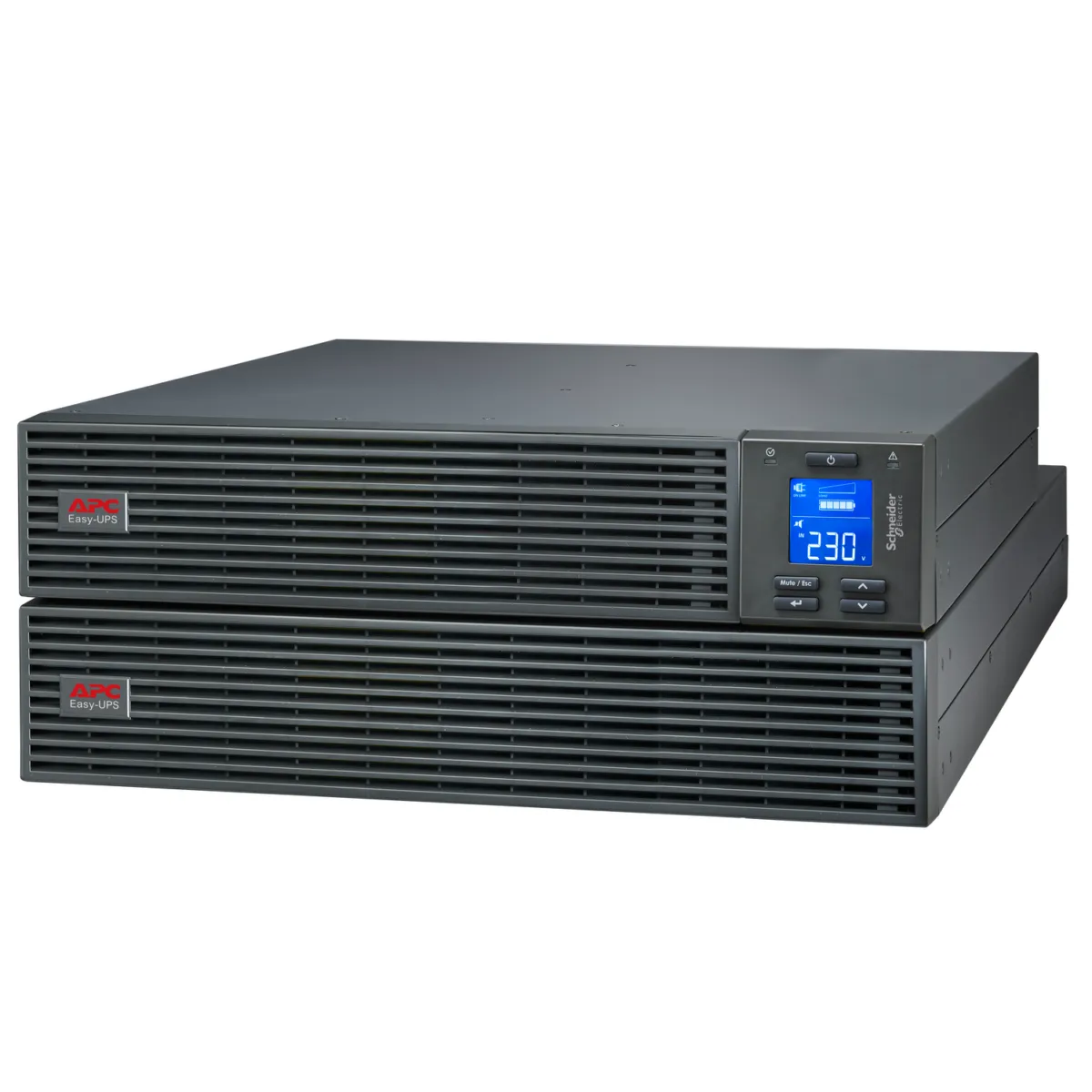

APC Easy UPS On-Line SRV Rackmount 3000VA 230V with Rail Kit (SRV3KRILRK)

The APC Easy UPS On-Line SRV Rackmount 3000VA 230V with Rail Kit (SRV3KRILRK) is a high-performance double-conversion online UPS designed for demanding IT environments that require extended runtime and maximum reliability. With a мощный 3000VA/2400W capacity and a 4U rackmount form factor, this UPS delivers pure sine wave power to protect critical systems during outages and fluctuations. It supports external battery expansion for longer backup durations, features energy-efficient ECO mode, and includes intelligent monitoring capabilities, making it ideal for data centers, enterprise networks, and industrial applications.

Product Features

Double-Conversion Online Technology

Provides continuous, clean, and stable power by isolating connected equipment from voltage disturbances through advanced AC to DC to AC conversion.

Pure Sine Wave Output

Ensures safe and reliable operation of sensitive electronics such as servers, storage systems, and networking equipment.

High Capacity Performance

Delivers 3000VA/2400W output, supporting multiple high-demand devices in critical environments.

4U Rackmount Design with Rail Kit

Designed for standard server racks, the 4U form factor allows for secure installation and efficient space utilization in structured IT environments.

Expandable Runtime Capability

Supports up to four external battery packs (SRV72RLBP-9A), enabling extended runtime for prolonged power outages and enhanced business continuity.

Energy-Efficient ECO Mode

Reduces energy consumption while maintaining reliable protection, improving overall operational efficiency.

Intelligent Battery Management

Optimizes battery performance and lifespan with advanced charging technology and supports extended runtime configurations.

Multifunction LCD Interface

Provides clear and detailed real-time monitoring of UPS status, performance metrics, and system diagnostics.

Automatic and Manual Bypass

Ensures uninterrupted power to connected equipment during maintenance or internal faults by seamlessly bypassing the UPS.

Advanced Connectivity Options

Includes USB and serial ports along with an intelligent expansion slot for optional network management cards, enabling remote monitoring and integration with centralized systems.

Product Specifications

• Rated Power: 3000 VA / 2400 W
• UPS Type: Double-conversion online
• Waveform Type: Pure sine wave
• Form Factor: 4U rackmount with rail kit
• Input Voltage: 220 V / 230 V / 240 V AC
• Input Connection: IEC 60320 C20
• Input Voltage Range: 110 to 285 V (half load), 160 to 280 V (full load)
• Output Voltage: 220 V / 230 V / 240 V AC
• Output Connections: 6 × IEC 60320 C13, 1 × IEC 60320 C19
• Output Frequency: 50/60 Hz ± 3 Hz
• Efficiency: Up to 88 percent at full load
• Battery Type: External lead-acid battery included
• Battery Voltage: 72 V
• Battery Recharge Time: Approximately 5.5 hours
• Battery Life: 3 to 5 years
• Expandable Battery Packs: Up to 4 external battery packs supported
• Runtime at Full Load: Approximately 12 minutes 44 seconds
• Surge Energy Rating: 600 J
• Connectivity: USB port, serial port, intelligent expansion slot
• Display Type: Multifunction LCD
• Noise Level: 50 dBA
• Operating Temperature: 0 to 40 degrees Celsius
• Storage Temperature: -20 to 50 degrees Celsius
• Humidity: 0 to 95 percent non-condensing
• Protection Rating: IP20
• Dimensions (H × W × D): 172 mm × 437 mm × 632 mm
• Weight: 52 kg
• Mounting Position: Horizontal rack-mounted
• Color: Black
