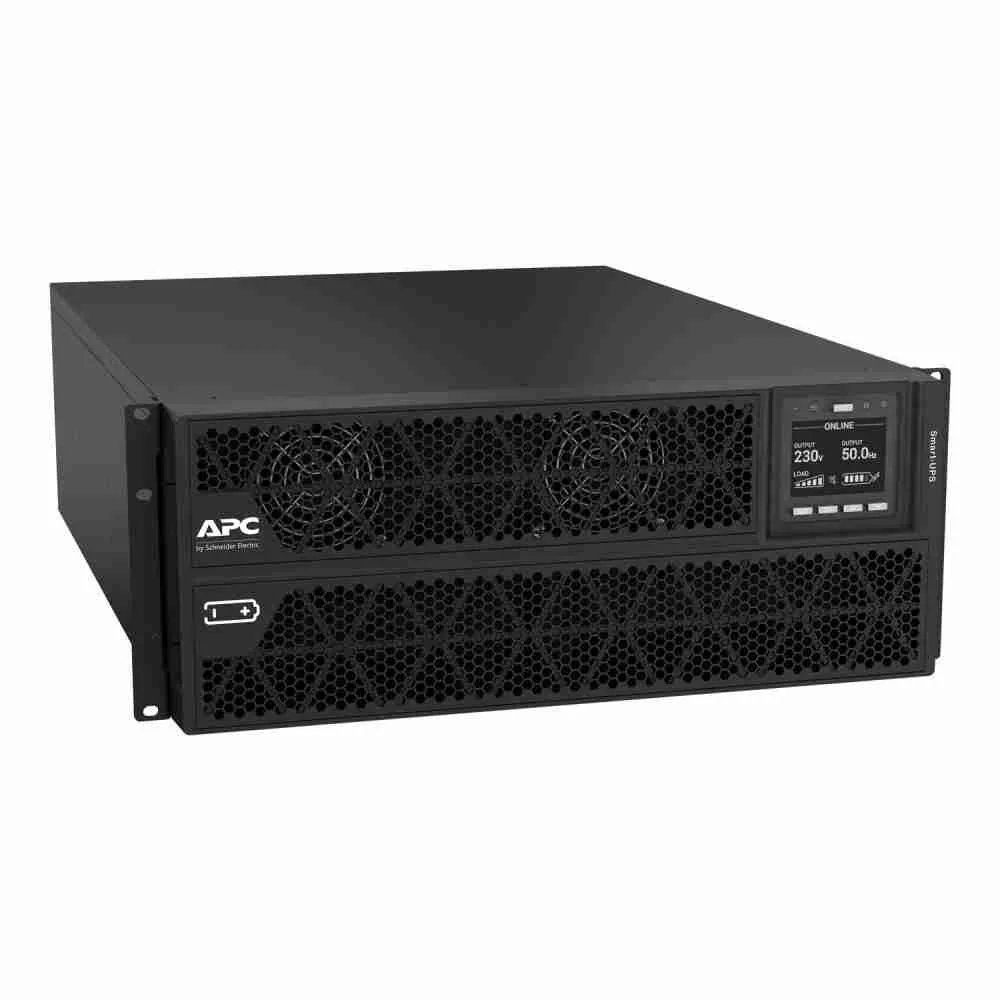

APC Smart-UPS RT 5kVA 230V Rackmount (SRTG5KXLI)

The APC Smart-UPS RT 5kVA 230V Rackmount (SRTG5KXLI) is an on-line 4U rackmount UPS designed to provide high-performance power protection for mission-critical servers, storage, and networking equipment. Delivering 5000VA/5000W of pure sine wave output with high efficiency (93.5%), this UPS ensures uninterrupted operation during power outages, voltage fluctuations, and surges. Featuring internal bypass, lead-acid battery backup, preinstalled network management card, and emergency power-off capability, the SRTG5KXLI is ideal for data centers and IT environments requiring reliable, scalable, and intelligent power management.

Product Features

On-line double conversion

Provides continuous, clean, and stable power to connected equipment, eliminating the effects of power fluctuations and ensuring zero transfer time.

High efficiency

Operates at 93.5% efficiency, reducing energy costs while maintaining full protection for critical loads.

Pure sine wave output

Delivers a clean sine wave to protect sensitive equipment and prevent data corruption or hardware damage.

Automatic bypass

Includes internal automatic and manual bypass to maintain power to connected equipment during UPS maintenance or overload conditions.

Cloud and network management

Comes with a preinstalled Network Management Card 3, enabling remote monitoring, environmental sensing, proactive alerts, and graceful shutdown via PowerChute.

Surge and noise protection

Provides 600 J surge suppression and full-time multi-pole noise filtering to safeguard IT equipment from spikes, brownouts, and transient voltages.

User-replaceable battery

Supports APC replacement battery cartridges to restore UPS performance quickly and extend service life.

Intuitive control and alerts

Features an LCD and audible alarms for low battery, overload, and operational status, allowing easy monitoring and maintenance.

Product Specifications

• UPS type: On-line
• Rated power: 5000 VA / 5000 W
• Input voltage: 230 V AC (adjustable 160–285 V full load)
• Output voltage: 230 V AC (configurable 220–240 V)
• Output connection: 2x IEC 60320 C13, 1x IEC 60320 C19, hardwire 3-wire (1P + N + E)
• Wave type: Pure sine wave
• Transfer time: Zero (on-line)
• Battery type: Lead-acid internal, +/- 96 V
• Battery recharge time: 4 hours
• Battery life: 3–5 years
• Runtime at full load: 2 min 50 sec
• Extended runtime: Yes (1 battery slot for expansion)
• Surge energy rating: 600 J
• Noise level: 55 dBA
• Dimensions (HxWxD): 175 x 440 x 620 mm
• Weight: 55.9 kg
• Rack units: 4U
• Mounting mode: Horizontal rack-mounted with included kit
• Control panel: LCD display with audible alarms
• Connectivity: Serial port, USB port, Network Management Card 3 preinstalled
• Certifications: CE, UKCA, TISI
• Operating temperature: 0–40 °C
• Storage temperature: -15–45 °C
• IP protection: IP20
• Heat dissipation: 1108.95 Btu/h
• Provided equipment: USB cable, RJ45 cable, rack mounting brackets, stabilization/wall mounting feet, installation manual, C13-C14 power cord
