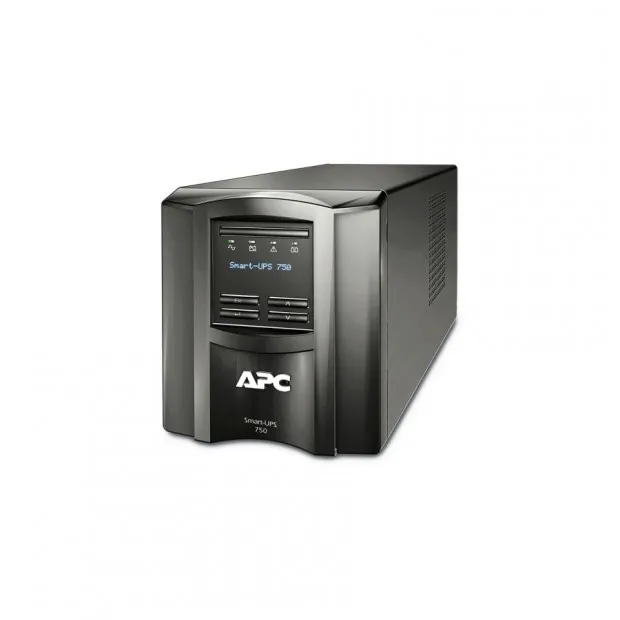

APC Smart-UPS 750VA Tower LCD 230V with SmartConnect Port (SMT750IC)

The APC Smart-UPS 750VA Tower LCD 230V (SMT750IC) is a reliable line interactive UPS designed to provide intelligent power protection for servers, network devices, and business-critical systems. With a 750VA/500W capacity and pure sine wave output, it ensures stable operation during power disturbances. Equipped with Automatic Voltage Regulation, cloud-based SmartConnect monitoring, and a user-friendly LCD interface, this UPS delivers efficient performance, remote management capabilities, and dependable uptime for modern IT environments.

Product Features

Line Interactive Technology with AVR

Maintains stable voltage levels using Automatic Voltage Regulation, correcting power fluctuations such as sags and surges without switching to battery.

Pure Sine Wave Output

Provides clean and consistent power suitable for sensitive electronics including servers, storage systems, and networking equipment.

SmartConnect Remote Monitoring

Enables cloud-based monitoring through the SmartConnect Ethernet port, allowing remote diagnostics, firmware updates, and proactive alerts.

Multifunction LCD Display

Offers real-time visibility into UPS status, load levels, battery health, and power conditions through an intuitive interface.

Reliable Battery Backup

Delivers dependable backup power during outages and supports a user-replaceable battery (RBC48) to restore original performance.

Advanced Connectivity Options

Includes USB and serial ports, plus a SmartSlot for optional network management cards, enabling integration with centralized management platforms.

Comprehensive Power Protection

Protects connected devices against surges, lightning strikes, brownouts, and electrical noise with built-in surge suppression and filtering.

Compact Tower Design

Space-efficient vertical design ideal for offices, network closets, and small IT setups where rack mounting is not required.

Product Specifications

• Rated Power: 750 VA / 500 W
• UPS Type: Line interactive
• Waveform Type: Pure sine wave
• Form Factor: Tower
• Input Voltage: 220 V / 230 V / 240 V AC
• Input Voltage Range: 151 to 302 V adjustable
• Input Connection: IEC 320 C14
• Output Voltage: 220 V / 230 V / 240 V AC
• Output Connections: 6 × IEC 320 C13, 2 × IEC jumper cables
• Output Frequency: 50/60 Hz ± 3 Hz
• Transfer Time: 6 ms typical, 10 ms maximum
• Battery Type: Internal lead-acid battery
• Battery Voltage: 24 V
• Battery Capacity: 7.0 Ah
• Battery Recharge Time: Approximately 3 hours
• Battery Life: 3 to 5 years
• Replacement Battery: RBC48
• Runtime at Full Load: Approximately 4 minutes 34 seconds
• Surge Energy Rating: 540 J
• Connectivity: USB port, serial port, SmartConnect Ethernet port, SmartSlot
• Display Type: Multifunction LCD
• Noise Level: 40 dBA
• Operating Temperature: 0 to 40 degrees Celsius
• Storage Temperature: -15 to 45 degrees Celsius
• Humidity: 0 to 95 percent
• Dimensions (H × W × D): 161 mm × 138 mm × 369 mm
• Weight: 11.8 kg
• Mounting Position: Vertical tower
• Color: Black
