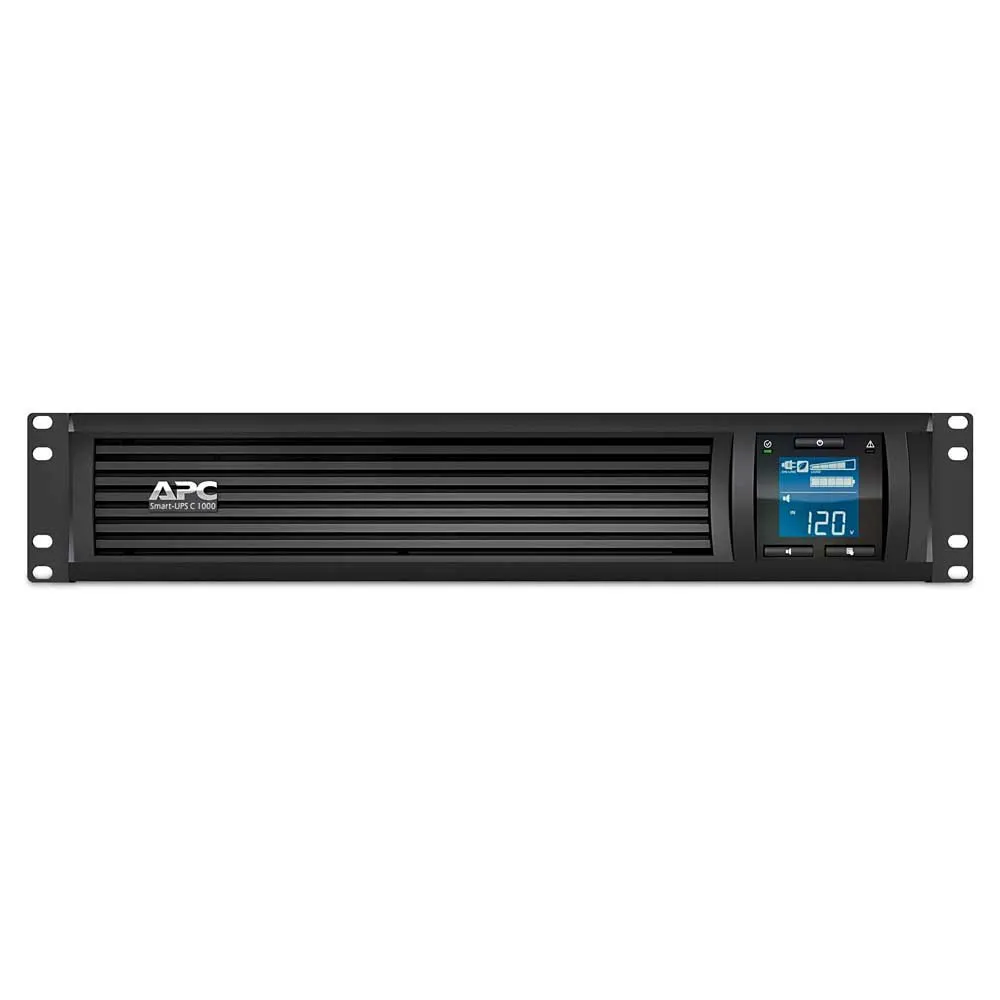

APC Smart-UPS 1000VA, Rack Mount, LCD 230V with SmartConnect Port (SMC1000I-2UC)

The APC Smart-UPS 1000VA, Rack Mount, LCD 230V with SmartConnect Port (SMC1000I-2UC) is a reliable 2U line-interactive uninterruptible power supply designed to maintain uninterrupted operation for entry-level servers, networks, retail point-of-sale systems, and business VOIP equipment. With a 1000VA/600W capacity, built-in Automatic Voltage Regulation (AVR), and pure sine wave output, it ensures stable and clean power for sensitive electronics. The SmartConnect feature allows cloud-based monitoring, remote diagnostics, and firmware updates, while the multifunction LCD provides real-time UPS status and control. Compact and efficient, this UPS is ideal for small offices and networked environments requiring dependable power protection.

Product Features

Line-Interactive UPS with Pure Sine Wave Output

Provides 1000VA/600W power with pure sine wave output, ensuring reliable operation for sensitive electronics during voltage fluctuations.

Automatic Voltage Regulation (AVR)

Maintains output voltage within user-selectable limits, protecting connected devices from surges, brownouts, and spikes without using battery power.

SmartConnect Cloud Monitoring

Enables remote monitoring, alerts, firmware updates, and diagnostics via the SmartConnect Ethernet port to keep IT administrators informed and proactive.

LCD Status and Control Console

The multifunction LCD displays real-time information, including load level, battery status, and input/output voltage, simplifying UPS management.

Seamless Graceful Shutdown

Supports serial and USB connections with PowerChute Business Edition for safe, unattended shutdown of servers and workstations during extended outages.

Comprehensive Surge and Noise Protection

Full-time multi-pole noise filtering with 459J surge energy absorption ensures sensitive equipment remains protected from electrical disturbances.

Rack-Mountable Design

2U form factor with included rack mounting brackets allows installation in standard IT racks, saving space while providing robust power protection.

Product Specifications

• UPS Type: Line interactive
• Power Capacity: 1000VA / 600W
• Input Voltage: 220–240 V AC, IEC 320 C14
• Input Voltage Range: 170–300 V adjustable
• Output Voltage: 230 V AC, single-phase
• Output Connection: 4 IEC 320 C13 outlets, 2 IEC jumper cables
• Waveform Type: Sine wave
• Transfer Time: 6 ms typical, 10 ms maximum
• Battery Type: Lead-acid internal, 24 V
• Battery Recharge Time: 3 hours
• Battery Replacement: 1 (APCRBC124)
• Control Panel: Multifunction LCD status and control console
• UPS Connectivity: USB, Serial, SmartConnect Ethernet port
• Software Package: SmartConnect software for remote power monitoring
• Surge Energy Rating: 459 J
• Noise Level: 42 dBA
• Dimensions: 406 mm (D) x 432 mm (W) x 86 mm (H)
• Weight: 20.52 kg
• Mounting: Rack-mounted with included kit, two-post compatible
• Operating Temperature: 0–40 °C
• Storage Temperature: -15–45 °C
• Relative Humidity: 0–95%
• Certifications: CE, C-Tick, GOST, VDE, UK PSTI
• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
• Heat Dissipation: 46 Btu/h
• Acoustic Level: 42 dBA
