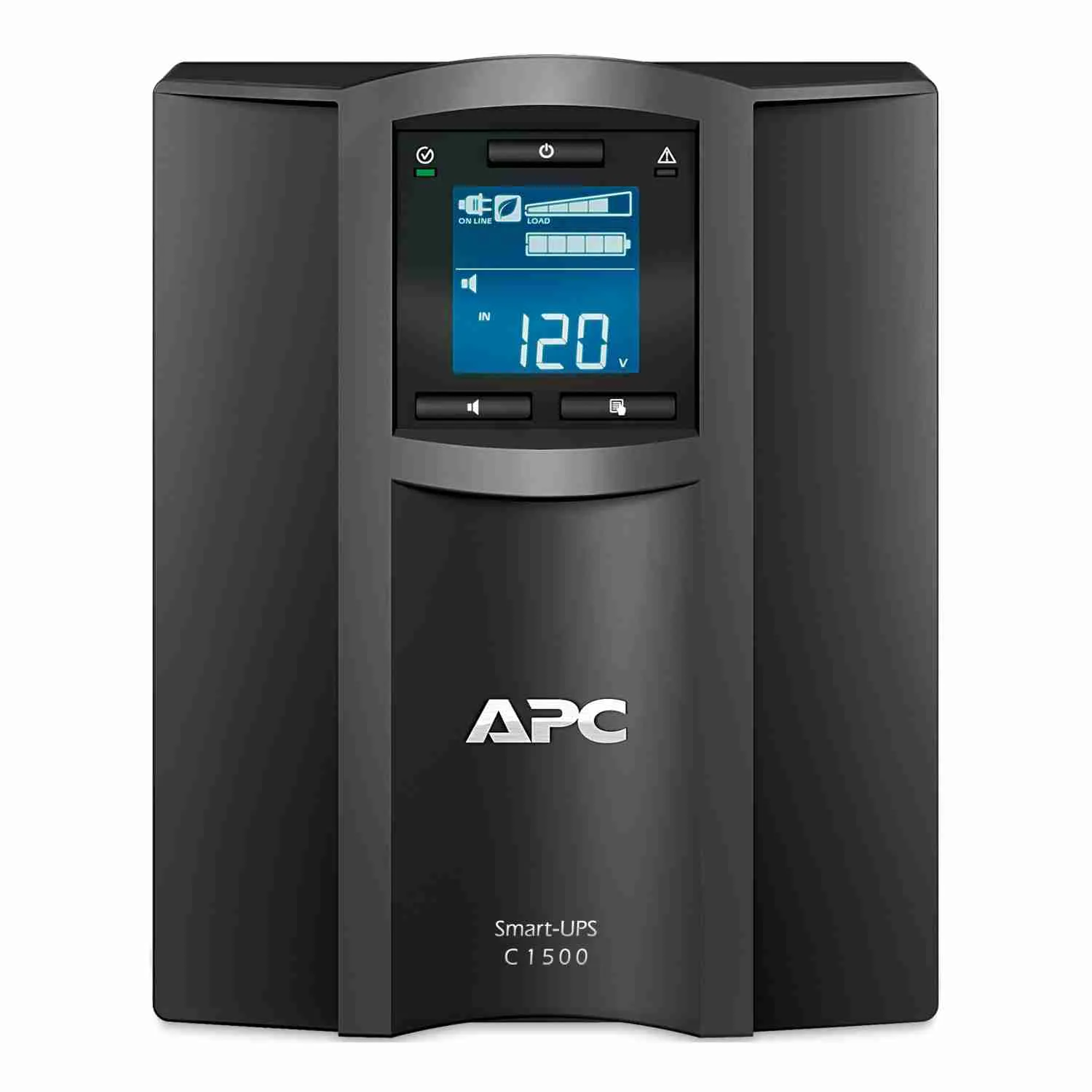

APC Smart-UPS C 1500VA LCD 230V with SmartConnect (SMC1500IC)

The APC Smart-UPS C 1500VA LCD 230V with SmartConnect (SMC1500IC) is a reliable line-interactive uninterruptible power supply (UPS) designed to deliver clean, uninterrupted power to critical electronics. With a 1500VA/900W capacity and pure sine wave output, it protects entry-level servers, networks, retail point-of-sale systems, business VOIP, and desktops from power disruptions. Its Automatic Voltage Regulation (AVR) maintains stable output voltage, while the SmartConnect port enables cloud-based remote monitoring, diagnostics, and firmware updates. The multifunction LCD provides clear, real-time status, and PowerChute Business Edition ensures safe unattended shutdown of connected devices. Compact and efficient, this tower UPS is ideal for small offices and networked environments.

Product Features

Line-Interactive UPS with Pure Sine Wave Output

Delivers 1500VA/900W of reliable power with pure sine wave output, ensuring optimal performance for sensitive electronics during voltage fluctuations.

Automatic Voltage Regulation (AVR)

Maintains output voltage within user-selectable limits, protecting connected devices from surges, spikes, and brownouts without draining the battery.

SmartConnect Cloud Monitoring

Provides cloud-based remote monitoring, alerts, firmware updates, and diagnostics via the SmartConnect Ethernet port for proactive UPS management.

LCD Status and Control Console

The multifunction LCD displays load level, battery status, input/output voltage, and other critical parameters for easy monitoring and control.

Seamless Graceful Shutdown

Supports serial and USB connections through PowerChute Business Edition for safe, unattended shutdown of servers and workstations during extended outages.

Comprehensive Surge and Noise Protection

Full-time multi-pole noise filtering with 459J surge energy absorption ensures sensitive electronics remain protected from electrical disturbances.

Product Specifications

• UPS Type: Line interactive
• Power Capacity: 1500VA / 900W
• Input Voltage: 220–240 V AC, IEC 320 C14
• Input Voltage Range: 170–300 V adjustable
• Output Voltage: 230 V AC, single-phase
• Output Connection: 8 IEC 320 C13 outlets, 2 IEC jumper cables
• Waveform Type: Sine wave
• Transfer Time: 6 ms typical, 10 ms maximum
• Battery Type: Lead-acid internal, 24 V
• Battery Recharge Time: 3 hours
• Battery Replacement: 1 (RBC6)
• Control Panel: Multifunction LCD status and control console
• UPS Connectivity: USB, Serial, SmartConnect Ethernet port
• Software Package: SmartConnect software for remote power monitoring
• Surge Energy Rating: 459 J
• Noise Level: 45 dBA
• Dimensions: 439 mm (D) x 171 mm (W) x 219 mm (H)
• Weight: 20.1 kg
• Mounting: Tower (not rack-mountable)
• Operating Temperature: 0–40 °C
• Storage Temperature: -15–45 °C
• Relative Humidity: 0–95%
• Certifications: CE, C-Tick, GOST, VDE, UK PSTI
• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
• Heat Dissipation: 135 Btu/h
• Acoustic Level: 45 dBA
