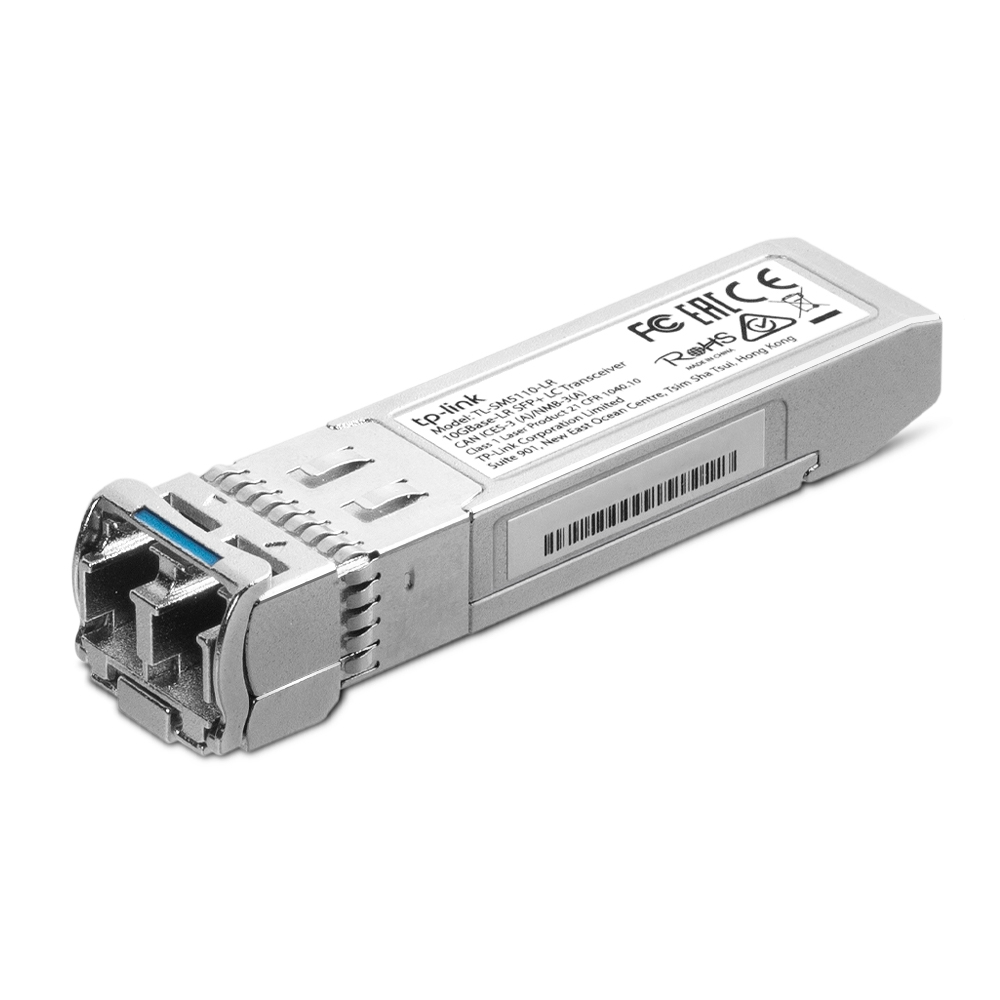

TP-Link Omada 10GBase-LR SFP+ LC Transceiver (SM5110-LR)

The TP-Link Omada SM5110-LR is a high-performance 10GBase-LR SFP+ transceiver designed for long-distance, high-speed fiber networking over single-mode fiber. Supporting data rates of up to 10 Gbps and transmission distances of up to 10 kilometers, it is ideal for enterprise networks, data centers, and campus deployments. Built with SFP+ MSA compatibility and hot-pluggable functionality, this transceiver ensures seamless integration with compatible switches while offering flexibility, reliability, and real-time performance monitoring through Digital Diagnostic Monitoring.

Product Features

10 Gigabit High-Speed Data Transmission

The SM5110-LR delivers ultra-fast data transfer speeds of up to 10 Gbps, making it suitable for bandwidth-intensive applications such as data center interconnects and enterprise backbone networks.

Long-Range Connectivity up to 10 km

Designed for single-mode fiber, this transceiver supports transmission distances of up to 10 kilometers, ensuring stable and reliable long-distance communication.

Digital Diagnostic Monitoring for Enhanced Visibility

With built-in DDM support, the module enables real-time monitoring of key operational parameters, helping maintain optimal performance and simplify troubleshooting.

Hot-Pluggable Design for Flexible Deployment

The hot-swappable design allows for easy installation or replacement without interrupting network operations, reducing downtime and improving efficiency.

SFP+ MSA Compatibility for Broad Device Support

Compliant with the 10G SFP+ Multi-Source Agreement, the SM5110-LR ensures compatibility with a wide range of switches equipped with 10G SFP+ ports.

Product Specifications

• Standards and Protocols: IEEE 802.3ae, TCP/IP
• Data Rate: 10 Gbps
• Wavelength: 1310 nm
• Fiber Type: 9/125 µm single-mode fiber
• Maximum Cable Length: Up to 10 km
• Port Type: LC duplex connector
• Power Supply: 3.3 V
• Dimensions: 56.7 × 13.9 × 10.35 mm (2.2 × 0.5 × 0.4 in)
• Hardware Features: Digital Diagnostic Monitoring (DDM), SFP+ MSA compliance, hot swappable design
• Certification: FCC, CE
• Package Content: SM5110-LR 10G SFP+ module, installation guide
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
