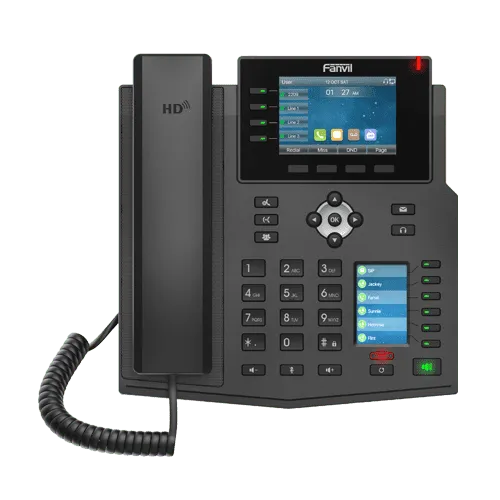

Fanvil X5U Executive Desk Phone

The Fanvil X5U is a premium enterprise IP phone designed for executives, receptionists, and professionals managing multiple lines and high call volumes. With dual color displays, built-in Bluetooth, and advanced connectivity options, the X5U ensures efficient call handling, crystal-clear audio, and flexible integration with modern office environments. Its programmable keys, HD audio, and versatile network support make it an ideal solution for corporate offices, call centers, and reception desks.

Product Features

Dual Color Displays

The phone features a 3.5-inch main screen (480×320) for call information and a 2.4-inch side screen (240×320) dedicated to DSS keys, providing instant access to contacts and call functions.

High Call Capacity

Supports up to 16 SIP lines, allowing users to handle multiple accounts and simultaneous calls efficiently, ideal for busy executive or reception workflows.

Programmable Keys

Includes 30 virtual DSS keys across 5 pages, enabling one-touch access to speed dial, BLF (Busy Lamp Field), call forwarding, and other frequently used functions.

HD Audio Performance

Equipped with a high-fidelity Harman speaker and wideband codecs (G.722, Opus), the X5U delivers crystal-clear voice quality. Advanced audio features include full-duplex speakerphone, Acoustic Echo Cancellation (AEC), Voice Activity Detection (VAD), and Packet Loss Concealment (PLC).

Advanced Connectivity

Supports Bluetooth 4.2 for wireless headsets, dual Gigabit Ethernet ports with PoE, and optional Wi-Fi connectivity via USB dongle, offering flexibility in network deployment.

Product Specifications

• Main Display: 3.5-inch color LCD (480×320)
• Side Display: 2.4-inch color LCD (240×320) for DSS keys
• SIP Lines: Up to 16
• Audio Conference: 6-way conferencing support
• Audio Codecs: Wideband: G.722, Opus, AMR-WB; Narrowband: G.711a/u, G.723.1, G.726, G.729A/B, iLBC, AMR
• Keypad: 42 keys total, including 4 line keys with LEDs, 30 virtual DSS keys, 6 function keys (Hold, Transfer, Conference, MWI, Headset, Redial)
• Network Ports: Dual Gigabit Ethernet (10/100/1000 Mbps) with PoE, 1x RJ9 for handset/headset, 1x USB 2.0
• Bluetooth: Built-in Bluetooth 4.2 for headset pairing and device synchronization
• Power Consumption: PoE: 1.7W – 10.46W; Adapter: 1.38W – 9.13W (5V/2A input)
• Physical Setup: Desk stand with adjustable angles (45° and 50°); optional wall-mount bracket
• Security & Encryption: SIP 2.0 over UDP/TCP/TLS, AES128/256 for configuration, SRTP for voice encryption
• VPN Support: L2TP, OpenVPN
• Directories & Call History: Local phonebook up to 2,000 entries; call history up to 1,000 entries
• Provisioning: Auto-provisioning via FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP, TR-069
• Advanced Features: SIP hotspot for account sharing, Action URL/Active URI, uaCSTA
