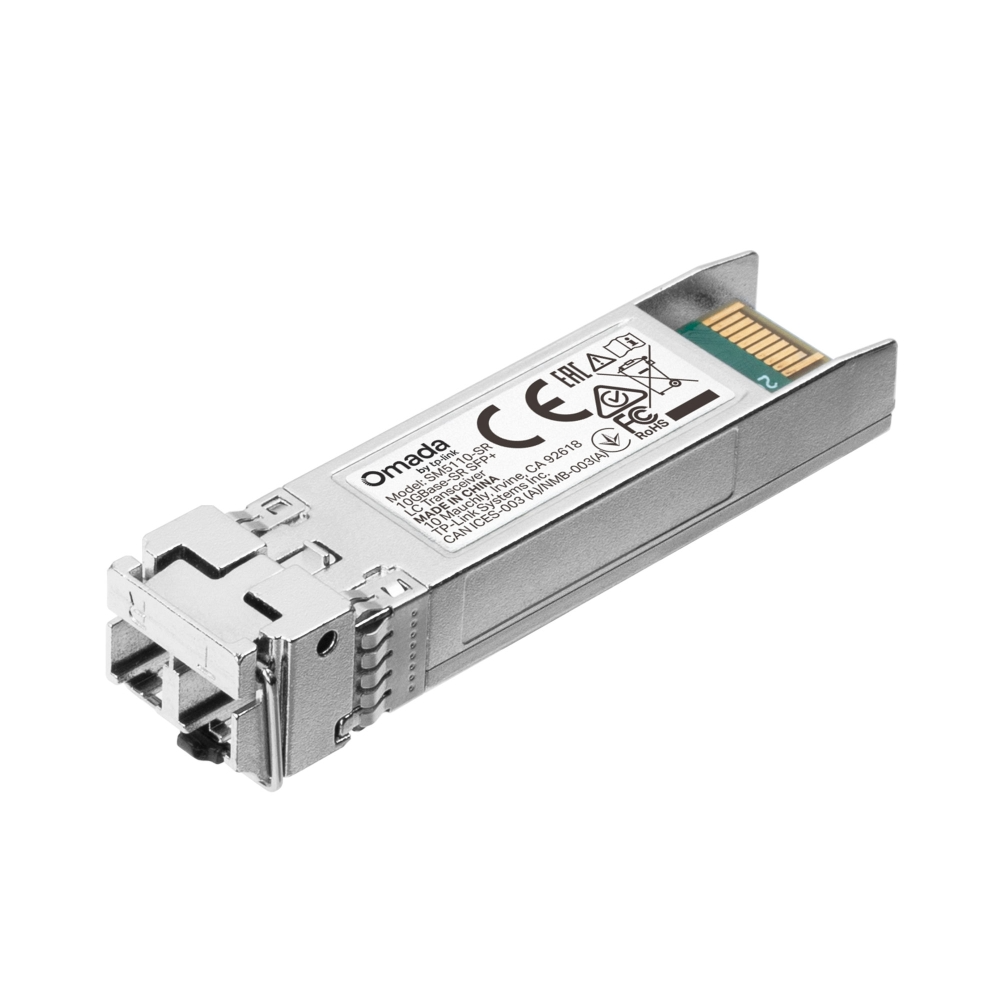

TP-Link Omada 10GBase-SR SFP+ LC Transceiver (SM5110-SR)

The TP-Link Omada SM5110-SR is a high-performance 10GBase-SR SFP+ transceiver engineered for short-range, high-speed fiber networking using multi-mode fiber. Designed to support 10 Gbps Ethernet connectivity, it delivers reliable data transmission over distances of up to 300 meters, making it ideal for data centers, enterprise networks, and high-speed aggregation layers. With SFP+ MSA compatibility, hot-swappable design, and Digital Diagnostic Monitoring support, this module ensures flexible deployment, seamless integration, and consistent network performance.

Product Features

10 Gigabit High-Speed Connectivity

The SM5110-SR supports data rates of up to 10 Gbps, enabling fast and efficient data transfer for bandwidth-intensive applications and high-performance network environments.

Optimized for Short-Range Multi-Mode Fiber

Designed for multi-mode fiber, this transceiver supports transmission distances of up to 300 meters with OM3 fiber, making it suitable for in-building and data center connections.

Digital Diagnostic Monitoring for Performance Tracking

Integrated DDM functionality provides real-time monitoring of key operational parameters, helping maintain optimal performance and simplify network management.

Hot-Swappable Design for Easy Deployment

The module supports hot swapping, allowing installation or replacement without shutting down network devices, minimizing downtime and improving operational flexibility.

Broad Compatibility with SFP+ MSA Standard

Compliant with the 10G SFP+ Multi-Source Agreement, the SM5110-SR ensures compatibility with a wide range of switches equipped with 10G SFP+ ports.

Product Specifications

• Standards and Protocols: IEEE 802.3ae, TCP/IP, SFF-8472
• Data Rate: 10 Gbps
• Wavelength: 850 nm
• Fiber Type: 50/125 µm or 62.5/125 µm multi-mode fiber
• Maximum Cable Length: Up to 300 m (OM3 fiber)
• Port Type: LC duplex connector
• Power Supply: 3.3 V
• Dimensions: 61.3 × 14.5 × 12.2 mm (2.4 × 0.6 × 0.5 in)
• Hardware Features: Digital Diagnostic Monitoring (DDM), SFP+ MSA compliance, hot swappable design
• Certification: FCC, CE
• Package Content: SM5110-SR module, installation guide
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
