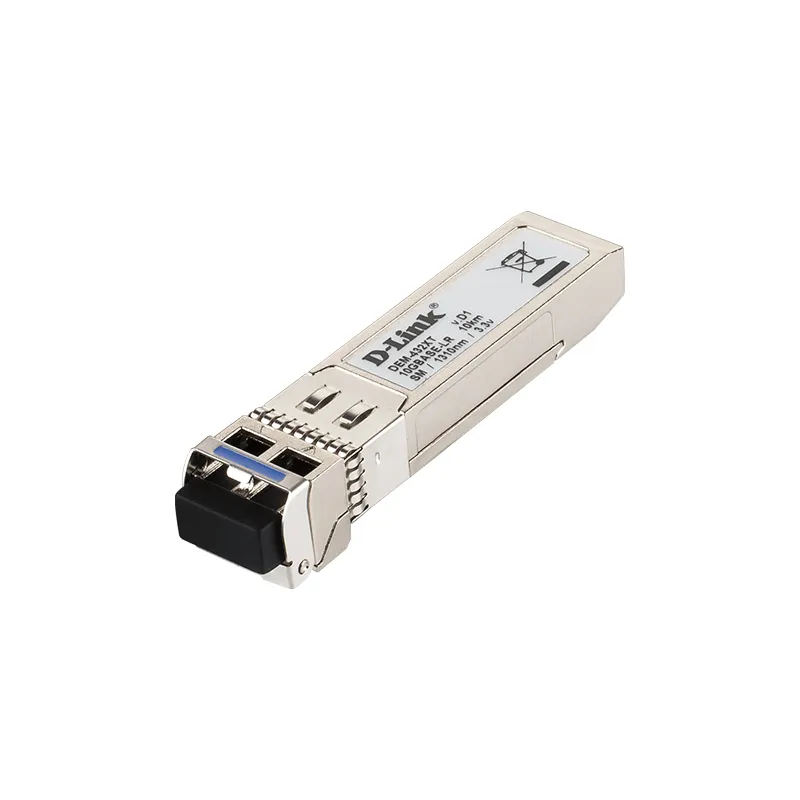

D-Link 10GBASE-LR SFP+ Transceiver (with DDM), 10km Single Mode (DEM-432XT-DD)

The D-Link 10GBASE-LR SFP+ Transceiver (DEM-432XT-DD) delivers high-performance 10Gbps Ethernet connectivity over single-mode fiber, ideal for data centers, enterprise wiring closets, and service provider networks. Operating at 1310nm, this transceiver supports distances up to 10 kilometers and features Digital Diagnostics Monitoring (DDM) for real-time monitoring of critical parameters including transmit and receive power, bias current, temperature, and voltage. Its compact SFP+ form factor reduces power consumption, allows higher port density, and supports hot-pluggable installation for minimal network downtime, all backed by a two-year warranty and reliable technical support.

Product Features

High-Speed 10Gbps Connectivity

Enables full-duplex 10 Gigabit Ethernet on single-mode fiber for reliable, high-bandwidth performance across long-distance network deployments.

Digital Diagnostics Monitoring (DDM)

Provides real-time monitoring of key device parameters including temperature, voltage, transmit and receive power, and bias current, ensuring proactive network management.

Hot-Pluggable Design

Supports easy installation and replacement without powering down the network, reducing maintenance interruptions and downtime.

Single-Mode Fiber Support

Optimized for single-mode 9/125 μm fiber, supporting long-distance connectivity up to 10 km for enterprise and service provider applications.

Compact SFP+ Form Factor

Smaller and more efficient than traditional XFP modules, enabling higher port density and lower power consumption for data center environments.

Compliance and Reliability

Meets IEEE 802.3ae and 10GBASE-LR standards, MSA-compliant, and RoHS-compliant, with a mean time between failures (MTBF) of 3,390,000 hours for dependable long-term operation.

Product Specifications

• Standard Compliance: IEEE-802.3ae, 10GBASE-LR
• Form Factor Type: SFP+
• Fibre Channel Standard: 1200-SM-LL-L
• Fiber Media Support: Single-Mode
• Distance Capacity: 10 km
• Hot Pluggable: Yes
• MSA Compliant: Yes
• RoHS Compliant: Yes
• MAC Address Update: Yes
• Speed: 10 Gbps
• Connector: Duplex LC
• Single/Bi-Directional: Single Direction
• Wavelength: 1310 nm
• Output Optical Power (TX): Max 0.5 dBm, Min -8.2 dBm
• Input Optical Power (RX): Max 0.5 dBm, Min -12.6 dBm
• Sensitivity: -12.6 dBm
• Cable Type: Single-mode 9/125 μm fiber
• Power: 3.3 V, Max Input Current 285 mA
• Power Budget: Min 4.4 dB, Max 17.6 dB
• Heat Generated: 3.4 kJ/h
• MTBF: 3,390,000 hours
• Operating Temperature: -5 to 70 °C
• Storage Temperature: -40 to 85 °C
• Operating Humidity: 0 to 85%
• Storage Humidity: 0 to 85%
• Weight: 0.05 lbs (22 g)
• Dimensions (W x D x H): 0.58 x 2.22 x 0.47 in (14.8 x 56.5 x 11.85 mm)
• Bail Latch Color: Blue
• EMI Compliance: CE, FCC, VCCI
• Safety Certifications: CSA, TUV, CDRH
