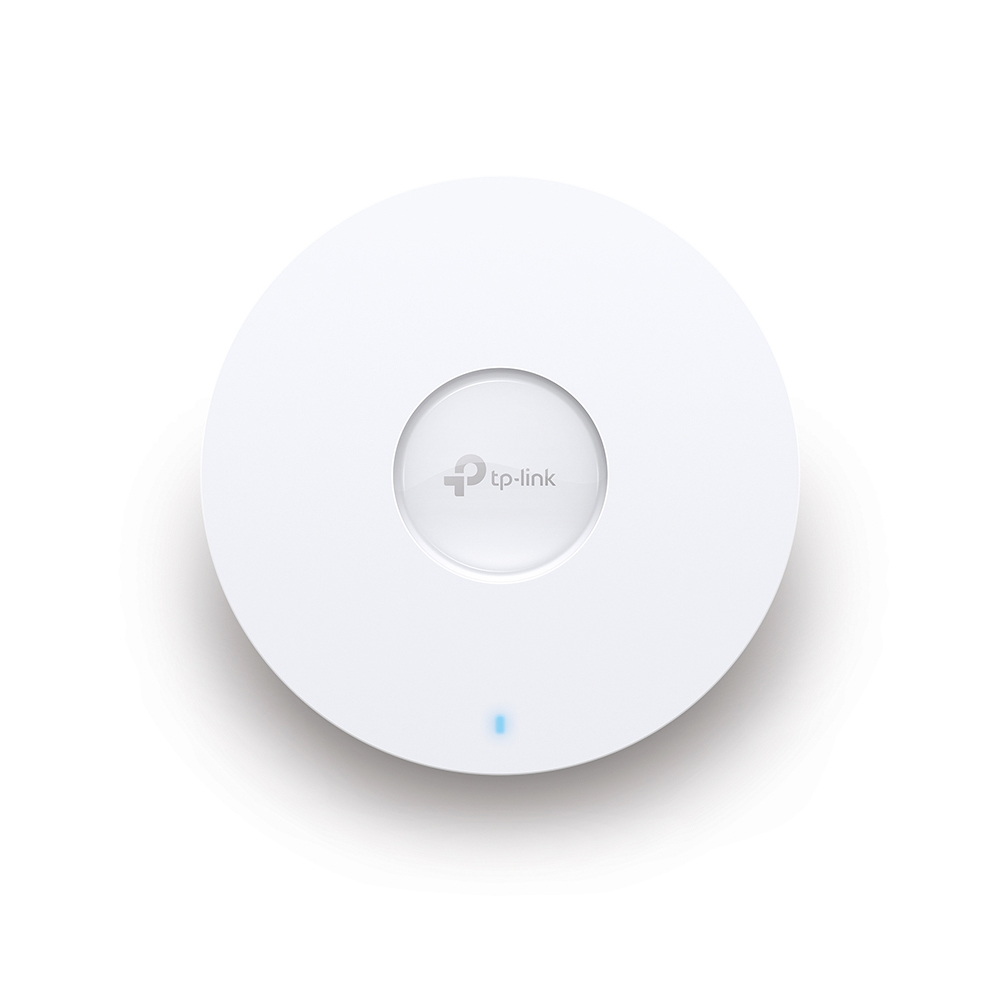

TP-Link AX3000 Ceiling Mount Wi-Fi 6 Access Point (TL-EAP650)

The TP-Link AX3000 Ceiling Mount Wi-Fi 6 Access Point (TL-EAP650) delivers ultra-fast and reliable wireless connectivity for both home and business environments. Equipped with the latest Wi-Fi 6 technology, it supports simultaneous dual-band speeds of up to 2976 Mbps, ensuring smooth video streaming, gaming, and file transfers across multiple devices. With centralized Omada SDN cloud management, seamless roaming, and flexible deployment options, the EAP650 provides a scalable and high-performance networking solution for modern Wi-Fi demands.

Product Features

Ultra-Fast Wi-Fi 6 Speeds

Supports simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz, totaling 2976 Mbps for ultra-fast wireless performance.

High-Efficiency Wi-Fi 6

Allows more devices to connect at faster speeds, ensuring smooth network performance in dense environments.

Centralized Cloud Management

Omada SDN integration enables full network management locally or via cloud, using the web UI or Omada app.

160 MHz Channel Support

Doubles data capacity at peak transmission times for single-stream connections with HE160 technology.

Seamless Roaming

Maintains uninterrupted video streams and voice calls as users move between access points.

Omada Mesh Technology

Creates wireless connections between access points to extend coverage and provide flexible deployment.

PoE+ Powered

Supports 802.3at PoE+ and DC power supply (adapter included) for convenient installation in diverse environments.

Ultra-Slim Design

Sleek Φ160 mm × 33.6 mm design allows easy ceiling integration while maintaining a modern aesthetic.

Product Specifications

• Interface: 1× Gigabit Ethernet (RJ-45) Port, supports IEEE802.3at PoE
• Button: Reset
• Power Supply: 802.3at PoE, 12V DC Adapter (EU: 12 V / 1.0 A, US: 12 V / 1.5 A), 48V Passive PoE
• Power Consumption: EU: 13.5 W, US: 14.7 W
• Dimensions: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
• Antenna Type: Internal Omni (2.4 GHz: 2× 4 dBi, 5 GHz: 2× 5 dBi)
• Mounting: Ceiling, Wall, Junction Box (kits included)
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz up to 2402 Mbps, 2.4 GHz up to 574 Mbps
• Wireless Functions: OFDMA, MU-MIMO, HE160, Seamless Roaming, Omada Mesh, Band Steering, Airtime Fairness, Beamforming, Multiple SSIDs (up to 16), QoS, Transmit Power Control, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics
• Wireless Security: WPA/WPA2/WPA3, 802.1X, Access Control, Captive Portal Authentication, Rogue AP Detection, Wireless Isolation, SSID to VLAN Mapping, Wireless MAC Filtering
• Management: Omada App, Centralized Controllers (OC300, OC200, Software or Cloud-Based), Cloud Access, Web-based Management (HTTP/HTTPS), Multi-site Management, L3 Management, Management VLAN, Zero-Touch Provisioning, Email Alerts, LED ON/OFF Control, SNMP v1/v2c/v3, SSH, Local/Remote Syslog
• Certification: CE, FCC, RoHS
• Package Contents: EAP650 Access Point, Power Adapter, Ceiling/Wall Mounting Kits, Installation Guide
• System Requirements: Microsoft Windows XP, Vista, 7, 8, 10, 11, Linux
• Environmental Conditions: Operating Temperature 0–40 ℃ (32–104 ℉), Storage Temperature -40–70 ℃ (-40–158 ℉), Operating Humidity 10–90% RH non-condensing, Storage Humidity 5–90% RH non-condensing
