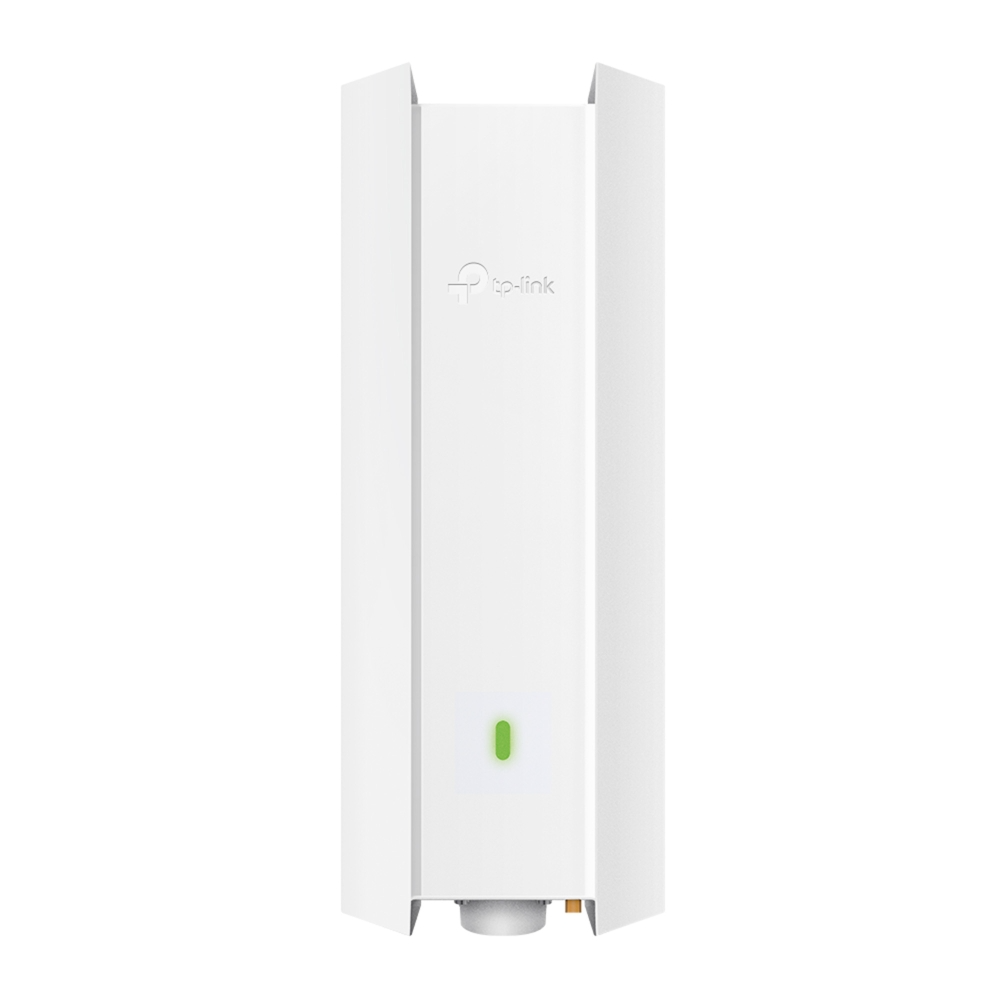

TP-Link AX3000 Outdoor Wi-Fi 6 Access Point (TL-EAP650-Outdoor)

The TP-Link AX3000 Indoor/Outdoor Wi-Fi 6 Access Point (TL-EAP650-Outdoor) delivers high-speed, reliable wireless coverage for both indoor and outdoor environments. With dual-band speeds of up to 3 Gbps and support for the latest Wi-Fi 6 technology, it provides faster connections on multiple devices with reduced latency. Featuring a high-power amplifier, professional antennas, and a rugged IP68 weatherproof design, this access point ensures long-range coverage and stable performance. Omada Mesh technology, seamless roaming, and centralized cloud management make it ideal for large properties, businesses, and outdoor venues, offering flexible deployment and effortless network control.

Product Features

Superior Wi-Fi 6 Speeds

Delivers dual-band speeds of up to 3 Gbps for ultra-fast wireless connections, optimized for streaming, gaming, and high-bandwidth applications.

Higher Network Efficiency

OFDMA and MU-MIMO technology allow multiple devices to operate simultaneously with minimal lag and maximum efficiency.

160 MHz Bandwidth Channel

Supports HE160 channels to double peak transmission capacity on a single stream, enhancing overall network throughput.

Long-Range Coverage

Equipped with high-power amplifiers and professional antennas inside a weatherproof IP68 enclosure, providing reliable coverage in demanding outdoor environments.

Omada Mesh Technology

Supports wireless connectivity between access points, enabling easy network expansion and flexible deployment without sacrificing performance.

Seamless Roaming

Devices switch automatically between access points to maintain uninterrupted streaming, gaming, or browsing across large areas.

PoE Powered

Supports both 802.3at PoE+ and Passive PoE (adapter included), allowing flexible installation without complex wiring.

Centralized Cloud Management

Integrates with Omada SDN for network monitoring, configuration, and management locally or remotely via web interface or the Omada app.

Product Specifications

• Interface: 1× Gigabit Ethernet (RJ-45) Port (Supports 802.3at PoE and Passive PoE)
• Button: Reset
• Power Supply:802.3at PoE, 48V Passive PoE (PoE Adapter Included – For Dry Indoor Use Only)
• Max. Power Consumption:EU: 12.5W (802.3at PoE or Passive PoE), US: 14.7W (802.3at PoE or Passive PoE)
• Dimensions (W × D × H): 280.4 × 106.5 × 56.8 mm (without antenna & mounting kit)
• Antenna:
  • 2.4 GHz: 2× 4 dBi
  • 5 GHz: 2× 5 dBi
• Weatherproof Enclosure: IP68
• Mounting: Pole/Wall Mounting (Kits Included)
• Concurrent Clients: 250+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz, 5 GHz
• Signal Rate:
  • 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
  • 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
  • 802.11g: 6–54 Mbps
  • 802.11b: 1–11 Mbps
  • 802.11a: 6–54 Mbps
• Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, MU-MIMO, Multiple SSIDs (Up to 16), Band Steering, Seamless Roaming, Omada Mesh, Beamforming, Load Balance, Airtime Fairness, QoS (WMM), Wireless Schedule, Rate Limit, Reboot Schedule
• Wireless Security: Captive Portal Authentication, Access Control, MAC Address Filtering, Wireless Isolation, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WEP, WPA/WPA2/WPA3 Personal & Enterprise
• Transmission Power: CE: <20 dBm (2.4 GHz), <30 dBm (5 GHz) | FCC: <25 dBm (2.4 GHz & 5 GHz)
• Management: Omada App, Cloud-Based Controller, Hardware Controller (OC200/OC300), Software Controller, Web-based Management, L3 Management, Multi-site Management, SNMP v1/v2c, Email Alerts, Management VLAN, Zero-Touch Provisioning, SSH, System Logging
• Certifications: CE, FCC, RoHS
• Package Content: Access Point EAP650-Outdoor, Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide, Waterproof Kit
• System Requirements: Microsoft Windows XP/Vista/7/8/10/11, Linux
• Environment:
  • Operating Temperature: -30–70 ℃ (-22–158 ℉)
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
